Job Card ELE A043 - AWS Monitor Calibration
Page no. 745 Chapter 7
JC-ELE-A-043.fm

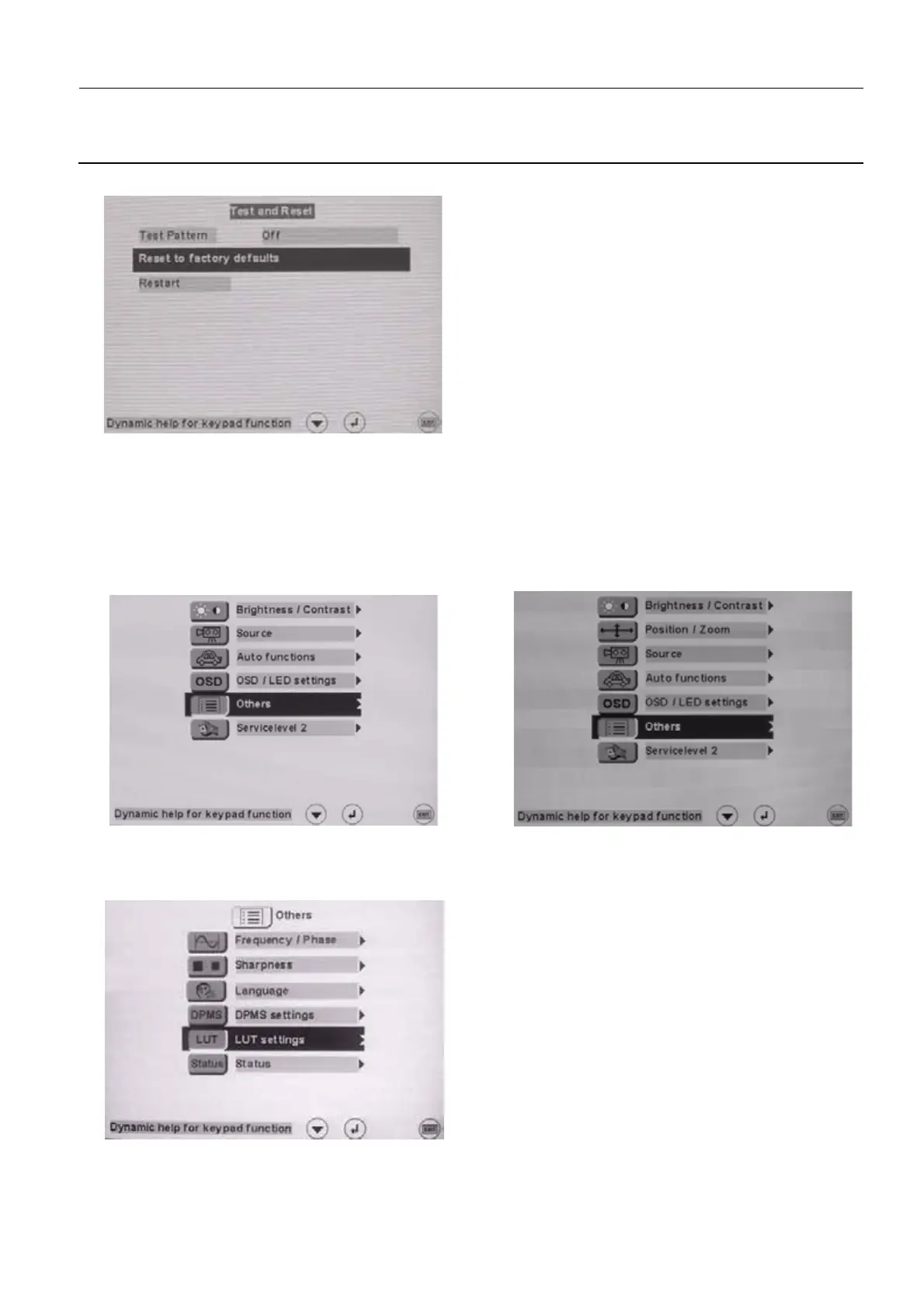

press the Key2 button to enter the Test and Reset menu.
5. From the Test and Reset menu, keep pressing the Key1 button until Reset to factory defaults is
selected, and press
the Key2 button to select that option. The AWS monitor restarts with the factory
settings.
6. Unlock the OSD (see section 8-2) and move the OSD to a convenient position (see section 8-5) if
necessary.
7. Press the Key1 button to access the OSD main menu, then keep pressing the Key1 button until Oth-
ers is selected.
8. Press the Key2 button to enter the Others menu, then keep pressing the Key1 button until LUT set-
tings is selected, then press
the Key2 button to enter the LUT settings menu.
9. In the LUT settings menu, verify that the Lut Backlight command value is set to OFF and the Select
With monitor connected via DVI (V3/V4 CS)
With monitor connected via BNC (V1/V2 CS)
