Chapter 7 Page no. 746
JC-ELE-A-043.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card ELE A043 - AWS Monitor Calibration

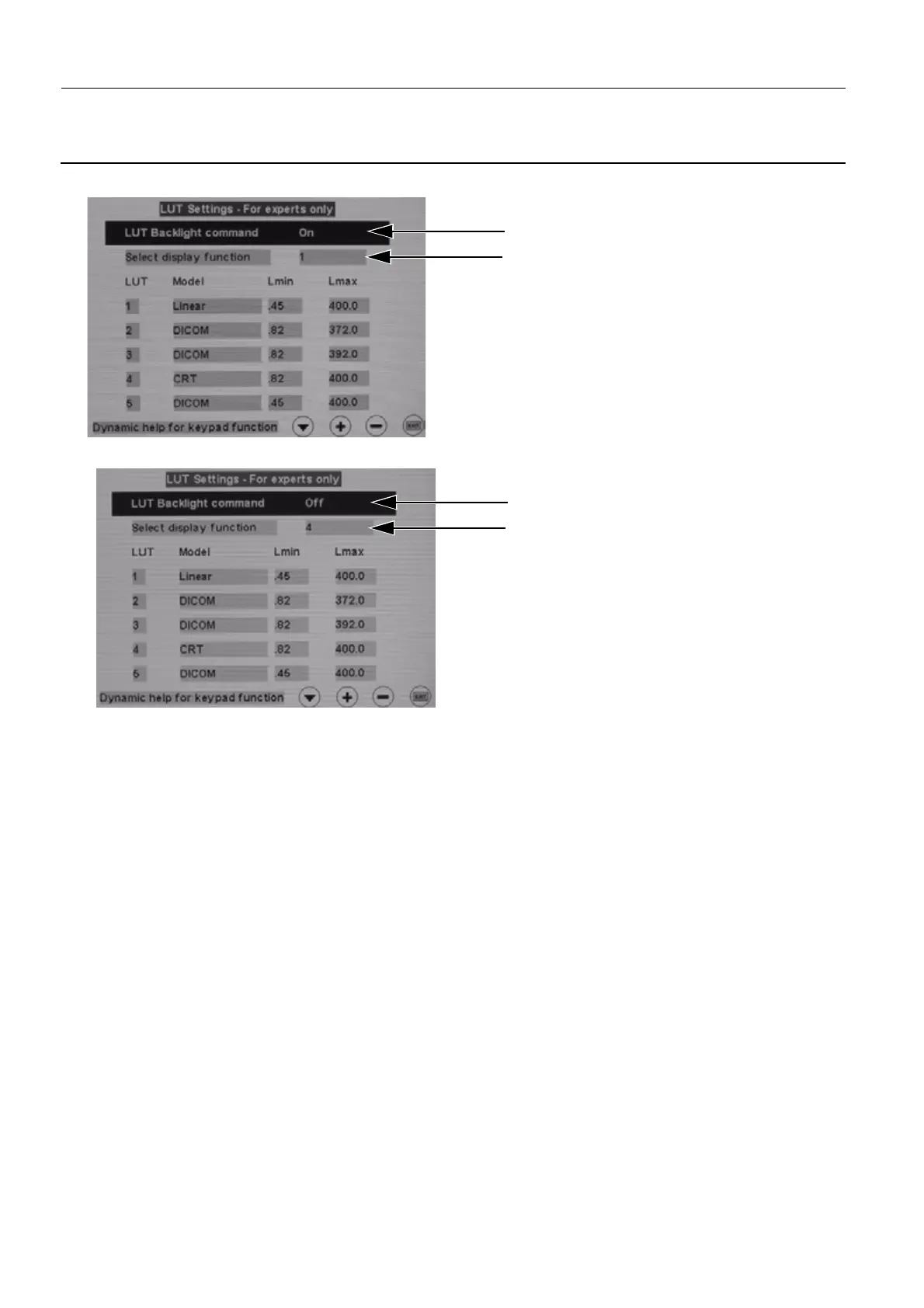

display function is set to 4.
If these values are set not as recommended:
• change them by selecting it with the Key1 button and change it to the correct value with the Key2
button
• store the changed settings by pressing the Key4 button until Accept changes is selected, then
press the Key2 button to exit and save the settings.
10. Once the changed settings are saved, go to section 8-3 for the 19" monitor.
INCORRECT
INCORRECT
CORRECT
CORRECT
