GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card DIAG A005 - Error Log Retrieval
Page no. 995 Chapter 9
JC-DIAG-A-005.fm
5-2-1-2 Penduick and above V3 Control Stations and V4 Control Stations

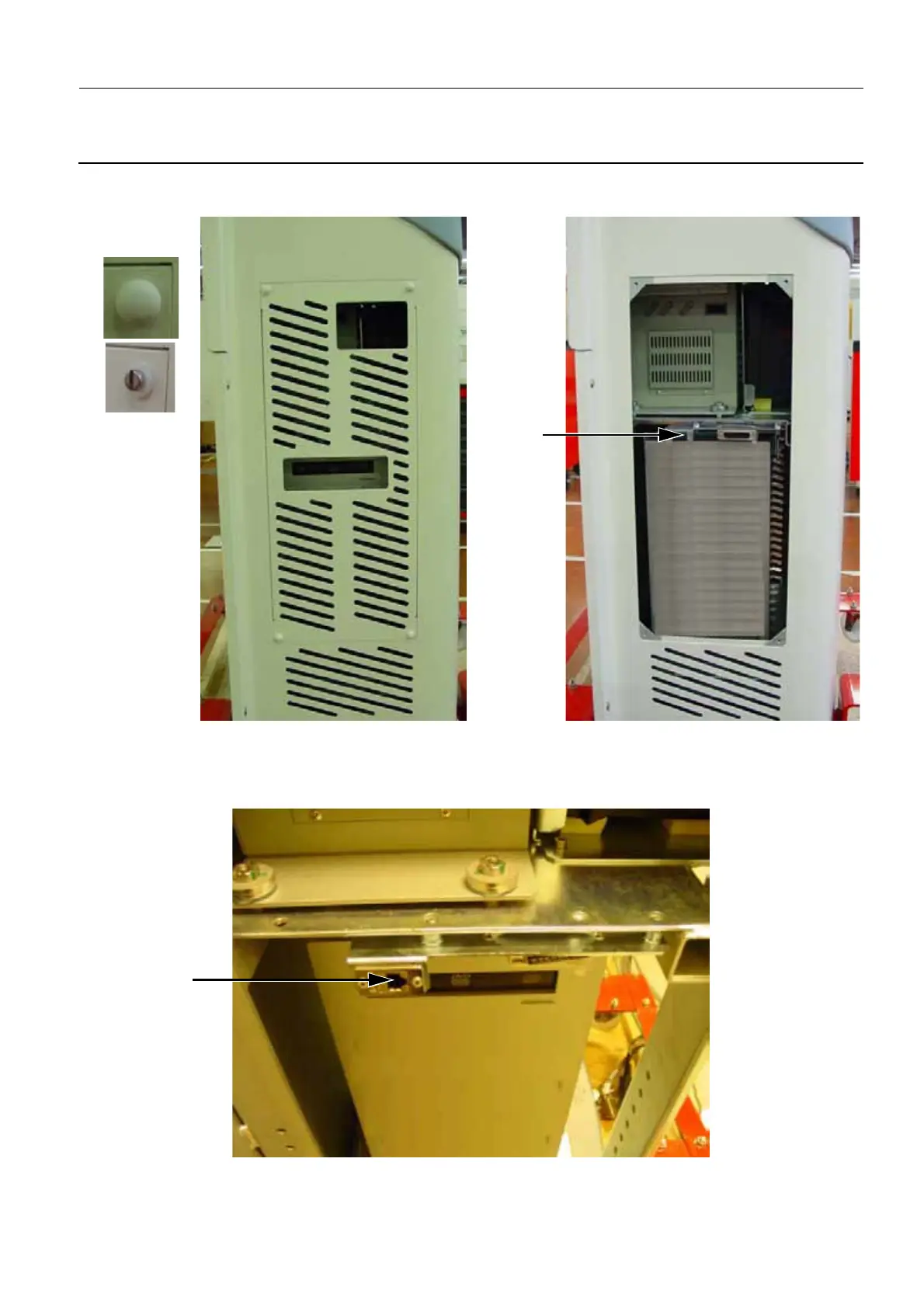

1. Carefully remove the caps from each corner of the Omega window.
2. Remove each of the four screws and plastic washers from each corner of the Omega window, and
remove the Omega window to reveal the RJ-45 Service connector (1).
3. Use a straight Ethernet cable to connect the network interface card (NIC) of your laptop to the RJ-45
Service connector (1) in the Control Station.
1
1
