GE HEALTHCAREDRAFT VOLUSON E8 / VOLUSON E6
D
IRECTION KTD102576, REVISION 7 DRAFT (AUGUST 23, 2012) SERVICE MANUAL
Chapter 4 - Functional Checks 4-19
4-4-6 Volume Mode Checks
NOTE: Different menus are displayed depending on which Touch Panel menu and which Volume Mode is
selected.
NOTE: Some function keys only appear on the Touch Panel if they are available for the selected Probe.
4-4-6-1 Pre-Volume Mode Functions
!! NOTICE:
4D Real Time 4D, STIC, VCI, VCI Omni View, TUI, VOCAL II, SonoVCAD Heart, SonoVCAD labor and
SonoAVC are Options. If options are not part of the system configuration, checks can be omitted.

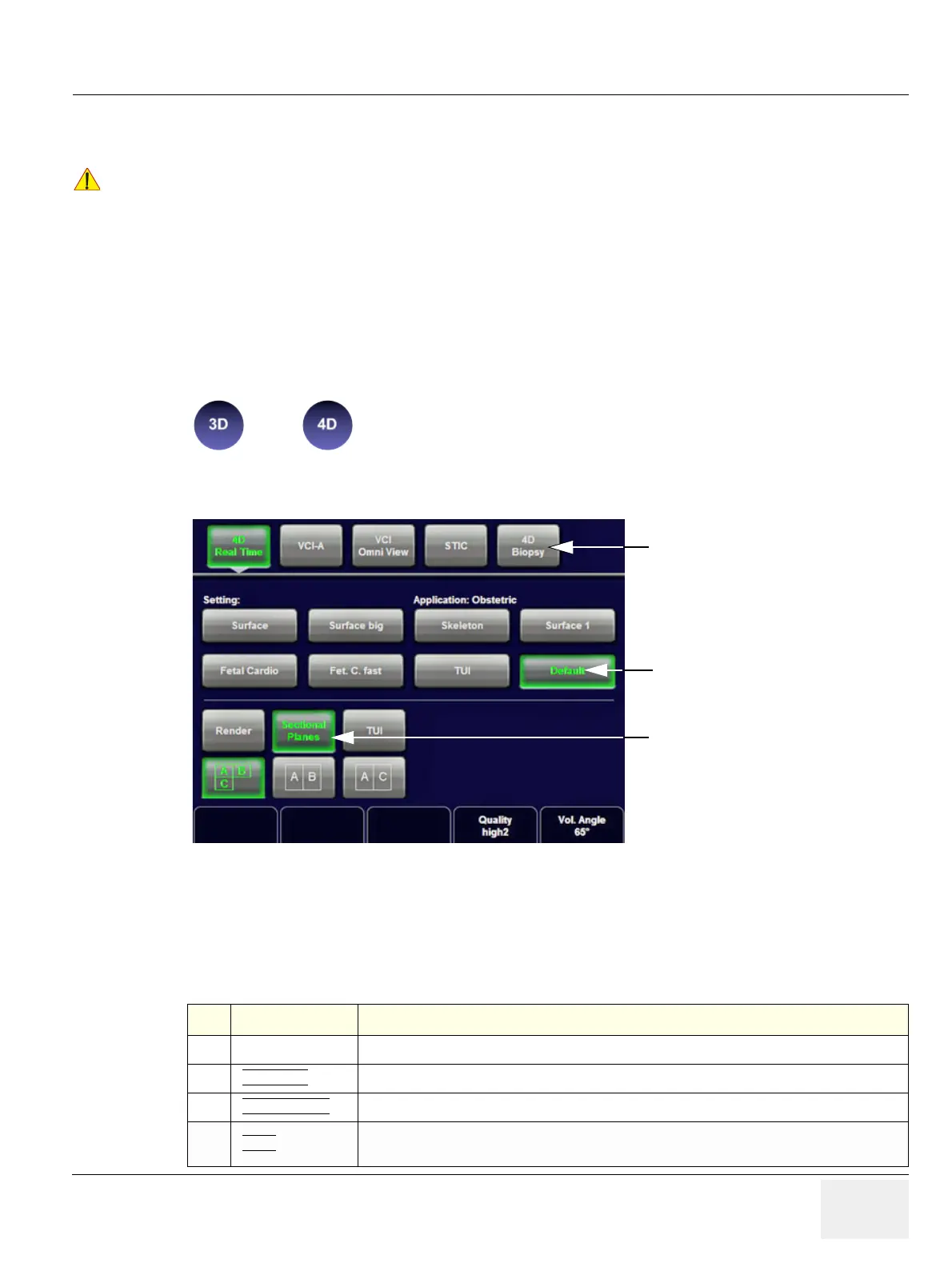

Figure 4-16 Pre-Volume Mode menus (e.g., 4D Real Time)
Table 4-6 Pre-Volume Mode Functions
Step Task Expected Results
1
AQUISITION:
• 3D STATIC
3D Volume Mode - Static volume acquisition (also in combination with PD, HD-Flow or CFM)
• 4D REAL TIME
Real Time 4D - continuous volume acquisition and parallel calculation of 3D rendered images
• VCI A
Volume Contrast Imaging - improves the contrast resolution and the signal / noise ratio and
therefore facilitates finding of diffuse lesions in organs
1. select the desired Volume Mode:
2. if possible, select the
3. Select User Setting
5. Start the Volume Acquisition with the Freeze key resp. the right trackball key.
or
The Volume Mode function is switched on, the “3D Pre” respectively “4D Pre” menu appears
on the screen (write mode) and the volume box appears on the Image area.
desired Acquisition Mode
4. select the desired
Visualization Mode
