GE HEALTHCARERAFT VOLUSON E8 / VOLUSON E6
D
IRECTION KTD102576, REVISION 7 DRAFT (AUGUST 23, 2012) SERVICE MANUAL
5-58 Section 5-8 - External I/O
Section 5-8
External I/O
NOTE: For further description of I/O connectors refer to Section 3-8-4 "External I/O Connectors" on page 3-55.

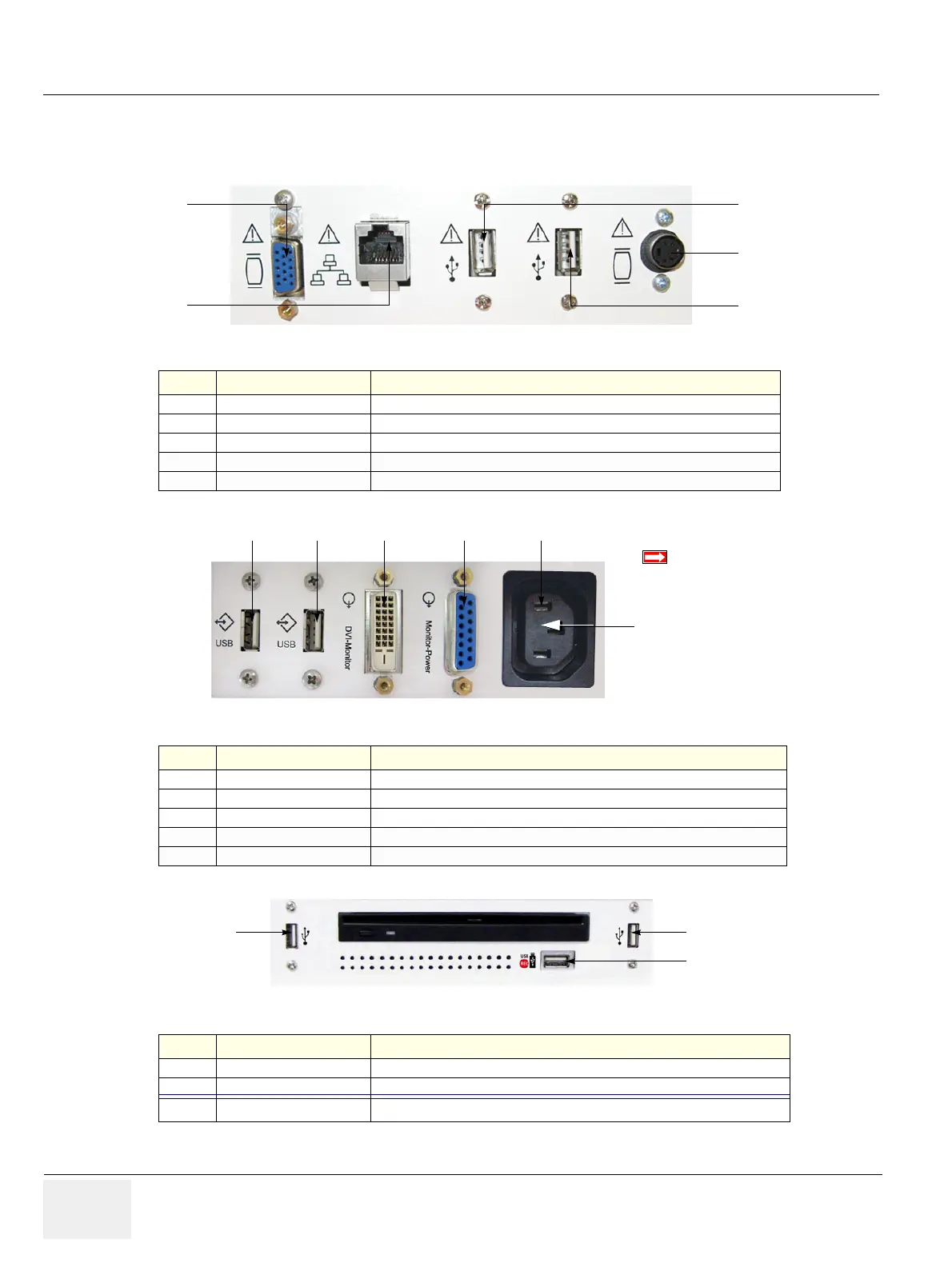

Figure 5-31 External I/O Connectors - on Rear of System (GES)
Item Connector Name Description
1 VGA OUT Connector for external Monitor
2 NETWORK DICOM input/output, twisted pair RJ-45 10/100 megabit/s
3 USB USB-2.0 port
4 USB USB-2.0 port
5 S-Video OUT S-Video OUT connector
Figure 5-32 External I/O Connectors - on Back of Console
Item Connector Name Description
1 USB USB-2.0 port
2 USB USB-2.0 port
3 Monitor Pwr Monitor Power
4 DVI Monitor DVI (Digital Visual Interface)
5 AUX main outlet for auxiliary devices (not available at BT10/BT12/BT13 HW)
Figure 5-33 External I/O Connectors - next to DVD- or DVR Drive
Item Connector Name Description
1 USB USB-2.0 port
2 USB USB-2.0 port
3 USB REC (DVR only) BT12/BT13 only: dedicated USB port on optional DVR (record to stick)
BT-Version:
The main outlet for auxiliary
devices is not available at
systems with BT10/BT12/BT13
hardware version
(or, if the main
harness has been replaced).
