Chapter 5 - Components and Functions (Theory) 5-63
5-11-2 LCD Monitor
The Voluson E8 / Voluson E6 has a free adjustable LCD monitor in relation to the user interface.
• position up/down: +/- 5 cm
• position left/right: +/- 20 cm
• rotation up/down: 30°/10°
• rotation left/right: +/- 45°
5-11-3 Control Console Positioning
The control console can be rotated, translated and adjusted in height.
• height adjustment: 20 cm (7.8 inch)
• translation adjustment: 20 cm (7.8 inch)
• rotation adjustment: +/- 40°
5-11-3-1 Rotation/Translation of the Control Console
Press the BRAKE
button in the inside of the handlebar opening to rotate/translate the console to the
desired position.
Press the BRAKE
button again in order to secure the console against uncontrolled movement.
5-11-3-2 Height Adjustment (Elevation) of the Control Console
Control console elevation adjustment is done with the ELEVATION
key on the control panel.
As long as this key is pressed, the control console can be elevated by means of the UP
and DOWN
button displayed on the Touch Panel.

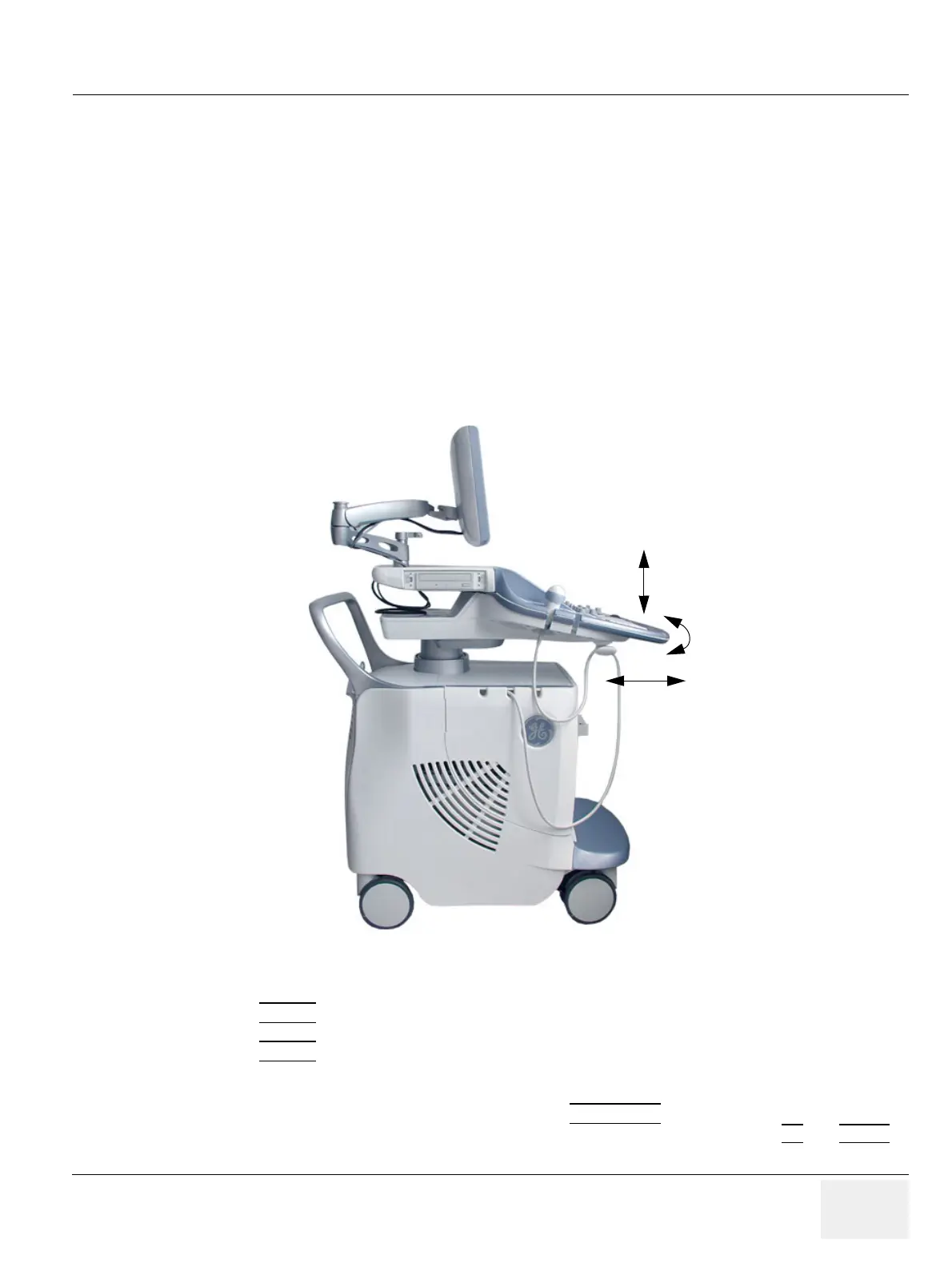

Figure 5-36 adjustable Control Console
