7-8-6-2 Record Spectral Doppler display via DVR-Drive (BT12/BT13 only)
1.) Insert an empty, formatted DVD+RW disc into the drive.
NOTE: If you use an unformatted DVD+RW, recording is impossible!
To format the DVD, press the DVD/VCR
key and then touch the FORMAT button.
5.) In the remote menu touch the RECORD button to record a doppler motion display (e.g. of Carotid).
6.) Touch the STOP
button to stop recording.
7.) Press the DVD/VCR
key on the control panel once to display the remote control menu again.
8.) Touch the PLAY
button to play-back the recorded doppler motion sequence.
With the SKIP
buttons the next/previous sequence can be seleted.
2.) Press the PW
key on the control panel to start PW preparation mode.
3.) Activate doppler motion display by pressing the
right/left trackball key.
4.) Press the DVD/VCR
key on the control panel once to display the remote control menu.

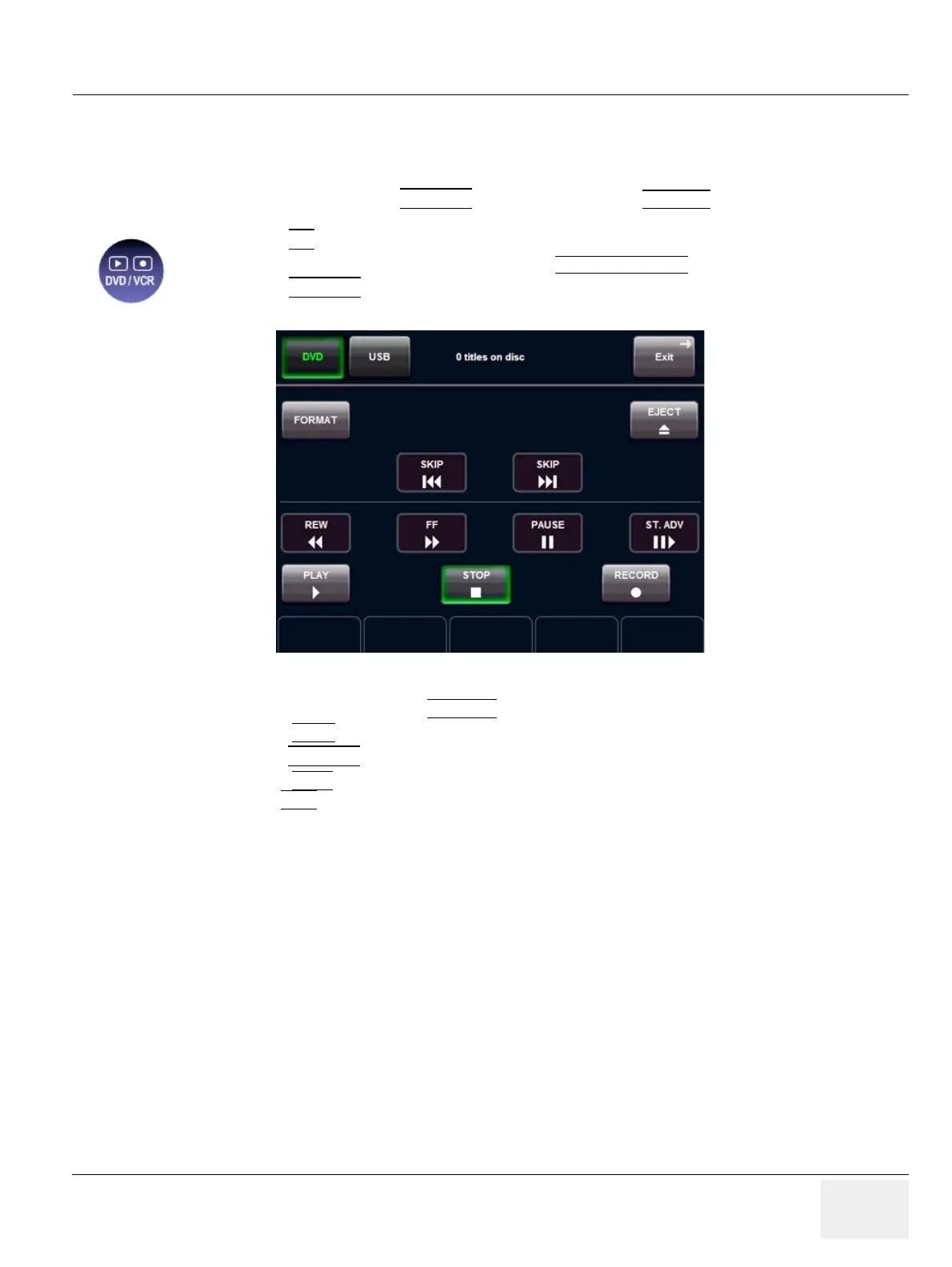

Figure 7-31 Remote Control menu
Limits: The recorded doppler motion sequence is running.
The audio signal of the arterial flow can be heard in the loudspeaker(s).
