8-30 Section 8-17 - Replacing optional Peripherals / How to mount Peripherals at a later date
8-17-4-2 Preparing the Secondary Monitor
1.) Unpack the monitor. If mounted, remove the monitor base.
2.) Place the monitor flat and screen down on a table.
3.) Unscrew the the 4 screws (see: left image in Figure 8-36 below).
4.) Place the monitor bracket mount and fix it with 4 screws (see: right image Figure 8-36 above).
5.) Put the mounting plate on top of the monitor bracket mount and fix it with 4 Allen screws.
6.) Plug in the supplied Power cable and the VGA cable to the appropriate connectors of the monitor.

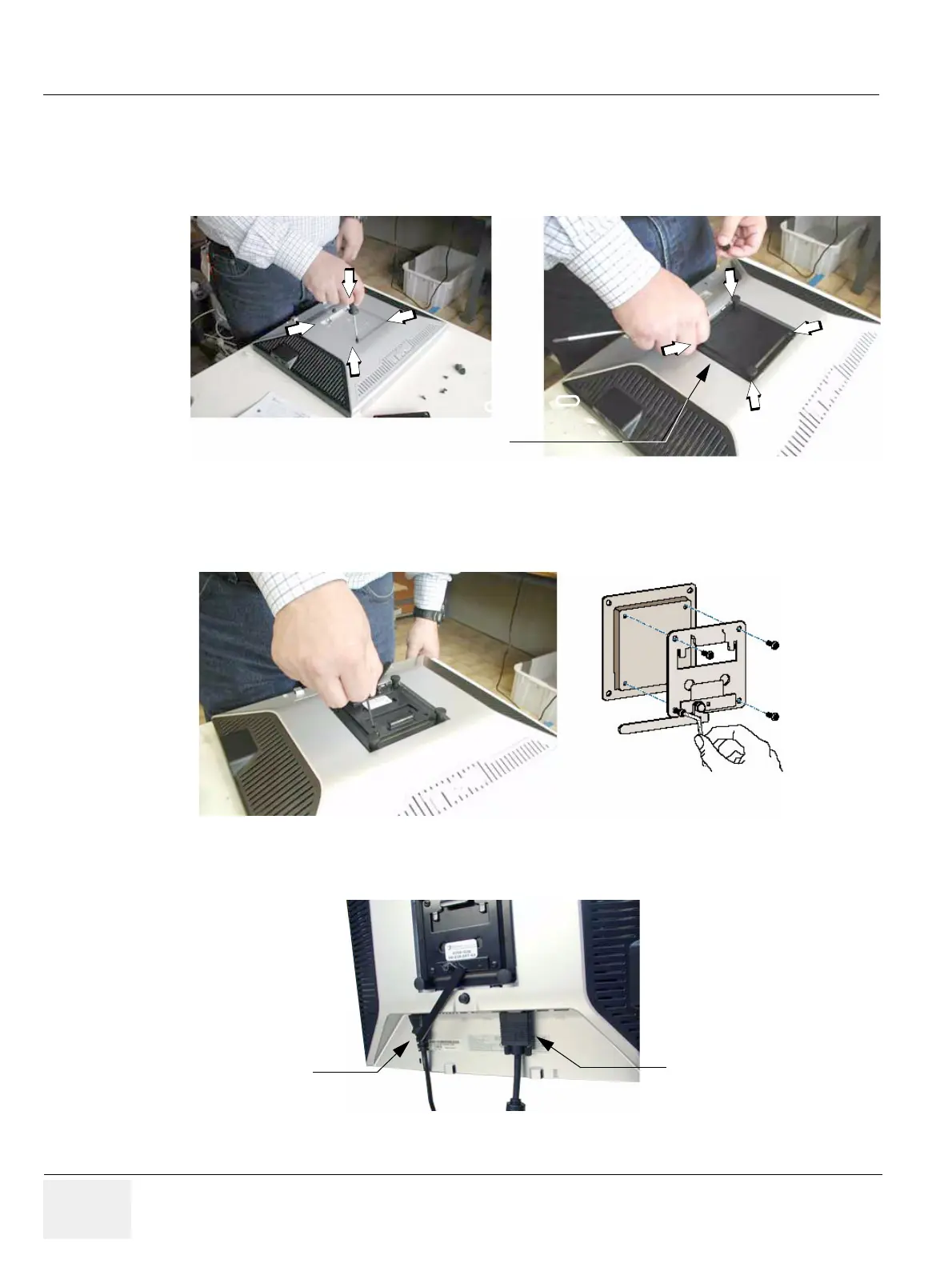

Figure 8-36 remove screws and then fasten monitor bracket mount
Figure 8-37 fix the mounting plate on top of the monitor bracket mount
Figure 8-38 plug in the supplied cables
Fix monitor bracket mount with 4 screws
