8-17-4-3 Mounting and Locking Procedure
1.) Put the hook of the monitor bracket mount in the indention of the wall bracket mount.
2.) Rotate the locking lever until it is vertical. Now the monitor is mounted and secure.
NOTE: To rotate the lever to its locking position, press the unlock button on rear of monitor, see: Figure 8-39.

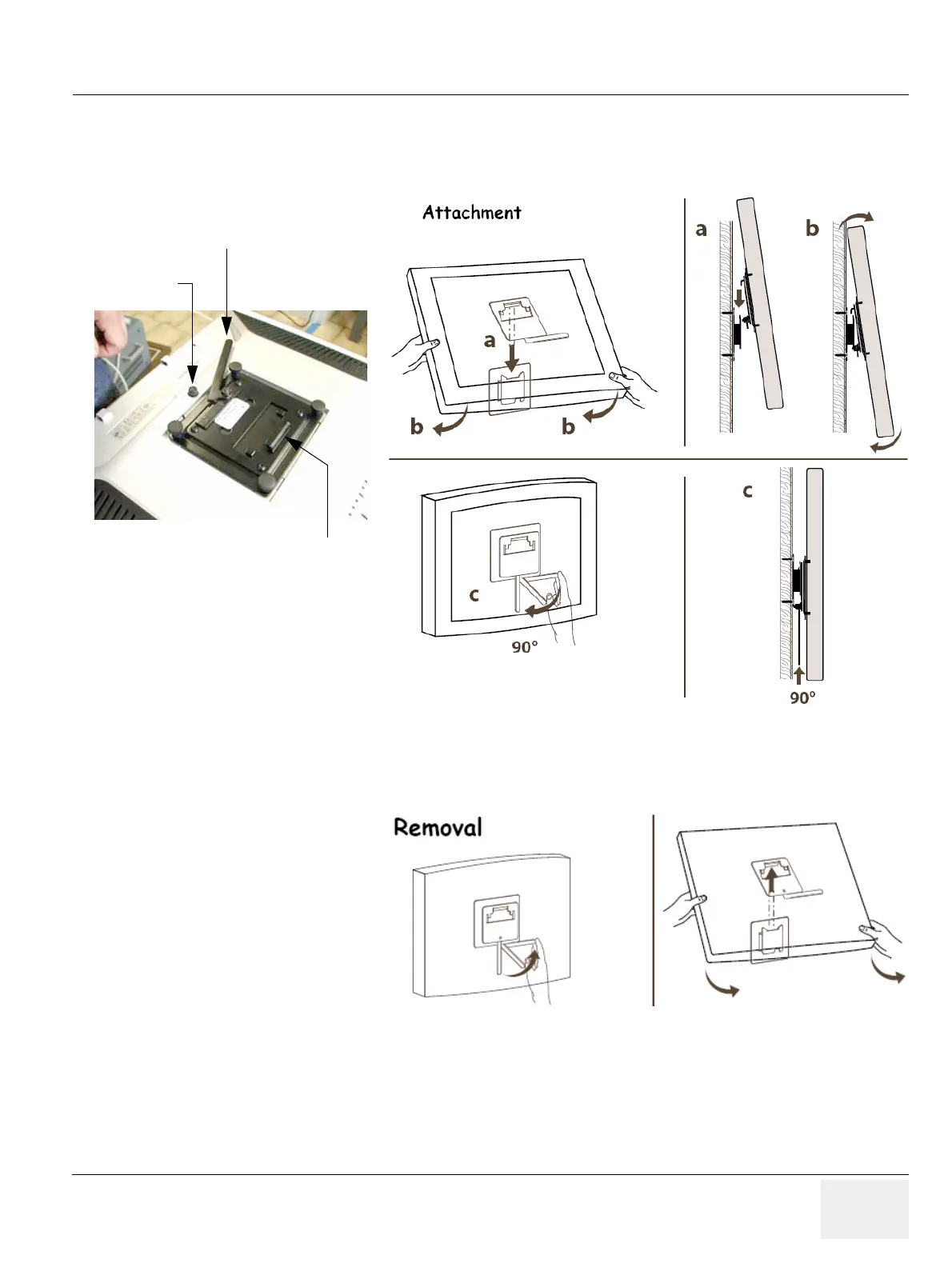

Figure 8-39 Mounting and Locking procedure
unlock button
locking lever
hook of monitor bracket mount
