GE HEALTHCARERAFT VOLUSON E8 / VOLUSON E6
D
IRECTION KTD102576, REVISION 7 DRAFT (AUGUST 23, 2012) SERVICE MANUAL
10-18 Section 10-7 - Electrical Safety Tests
10-7-5-3 Data Sheet for Enclosure/Chassis Leakage Current
Table 10-15 shows a typical format for recording the enclosure/chassis leakage current.
Measurements should be recorded from multiple locations for each set of test conditions.
The actual location of the test probe may vary by system.
Record all data in the Electrical safety tests log.

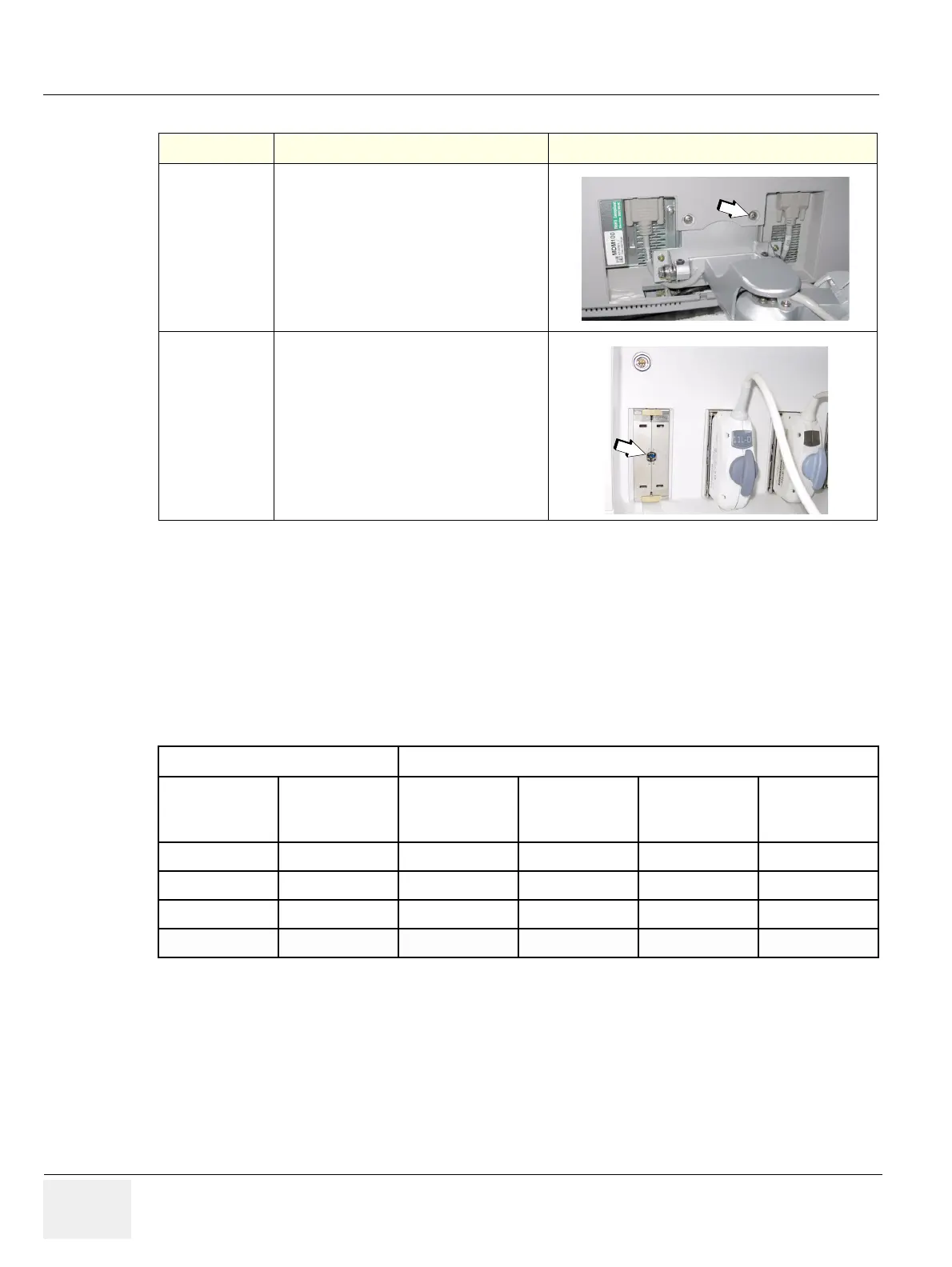

Table 10-15 Typical Data Format for Recording Chassis Source Leakage
System Under Test: ________________________ Date of Test: _____________________
2
Monitor housing
(mounting screw for LCD Monitor housing,
rear of monitor)
3
Probe connector
(probe mounting receptacle on front of system)
Test Conditions Measurement/Test Point Location
System Power Grounding/PE
Potential
equilibrium
connector
Monitor
housing
Probe
connector
off closed
off open
on closed
on open
Table 10-14 Chassis Leakage Current Test Condition
TEST CONDITION TEST POINT (image)
