LCR-6000 Series User Manual
121

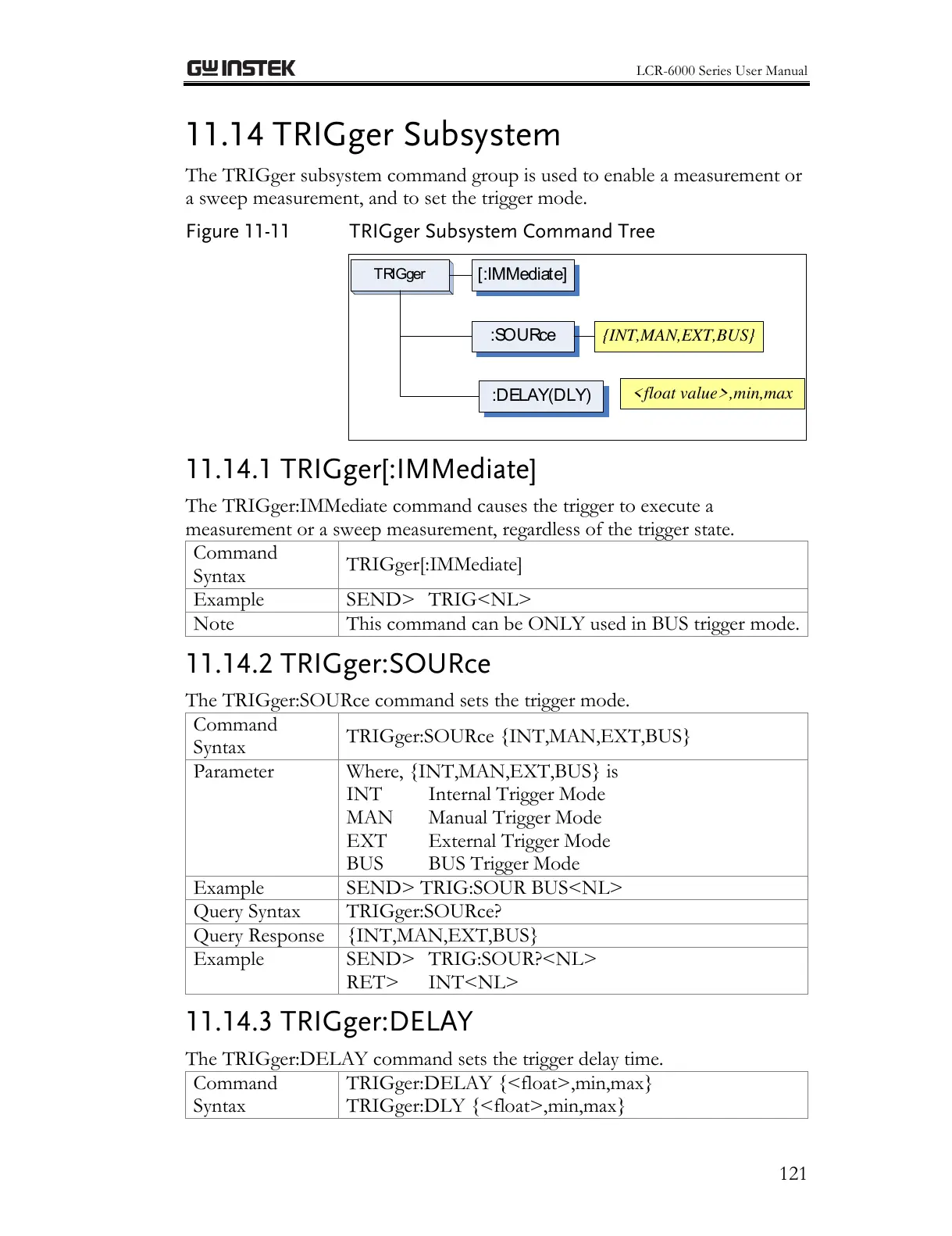

11.14 TRIGger Subsystem
The TRIGger subsystem command group is used to enable a measurement or
a sweep measurement, and to set the trigger mode.
Figure 11-11 TRIGger Subsystem Command Tree
11.14.1 TRIGger[:IMMediate]
The TRIGger:IMMediate command causes the trigger to execute a
measurement or a sweep measurement, regardless of the trigger state.
Command
Syntax
TRIGger[:IMMediate]
Example
SEND> TRIG<NL>
Note
This command can be ONLY used in BUS trigger mode.
11.14.2 TRIGger:SOURce
The TRIGger:SOURce command sets the trigger mode.
Command
Syntax
TRIGger:SOURce {INT,MAN,EXT,BUS}
Parameter
Where, {INT,MAN,EXT,BUS} is
INT Internal Trigger Mode
MAN Manual Trigger Mode
EXT External Trigger Mode
BUS BUS Trigger Mode
Example
SEND> TRIG:SOUR BUS<NL>
Query Syntax
TRIGger:SOURce?
Query Response
{INT,MAN,EXT,BUS}
Example
SEND> TRIG:SOUR?<NL>
RET> INT<NL>
11.14.3 TRIGger:DELAY
The TRIGger:DELAY command sets the trigger delay time.
Command
Syntax
TRIGger:DELAY {<float>,min,max}
TRIGger:DLY {<float>,min,max}
TRIGger
[:IMMediate]
:SOURce {INT,MAN,EXT,BUS}
:DELAY(DLY)
<float value>,min,max
