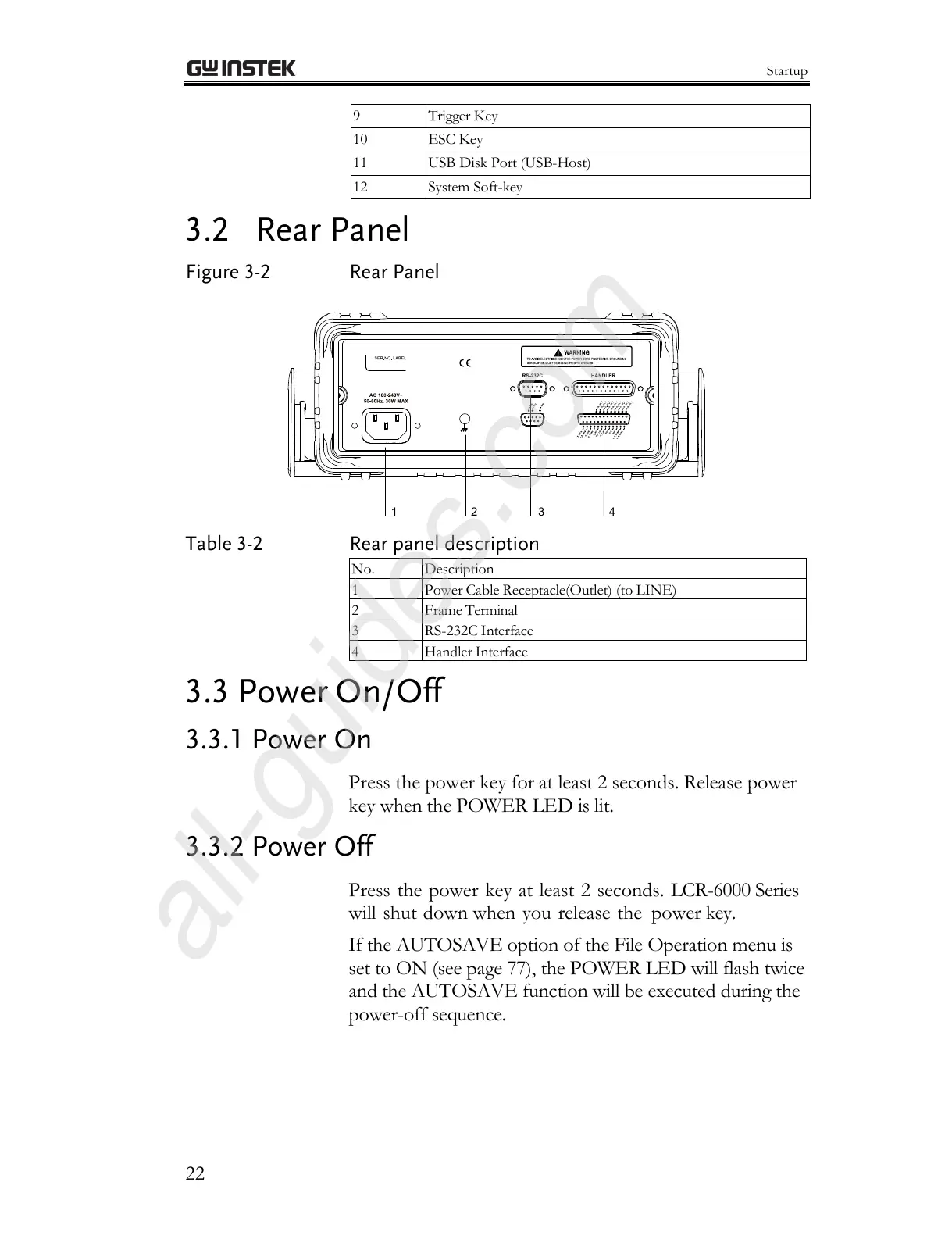

3.2 Rear Panel
Figure 3-2 Rear Panel
Table 3-2 Rear panel description
Power Cable Receptacle(Outlet) (to LINE)
3.3 Power On/Off
3.3.1 Power On
Press the power key for at least 2 seconds. Release power
key when the POWER LED is lit.
Press the power key at least 2 seconds. LCR-6000 Series
will shut down when you release the
power key.
If the AUTOSAVE option of the File Operation menu is
set to ON (see page 77), the POWER LED will flash twice
and the AUTOSAVE function will be executed during the
power-off sequence.
