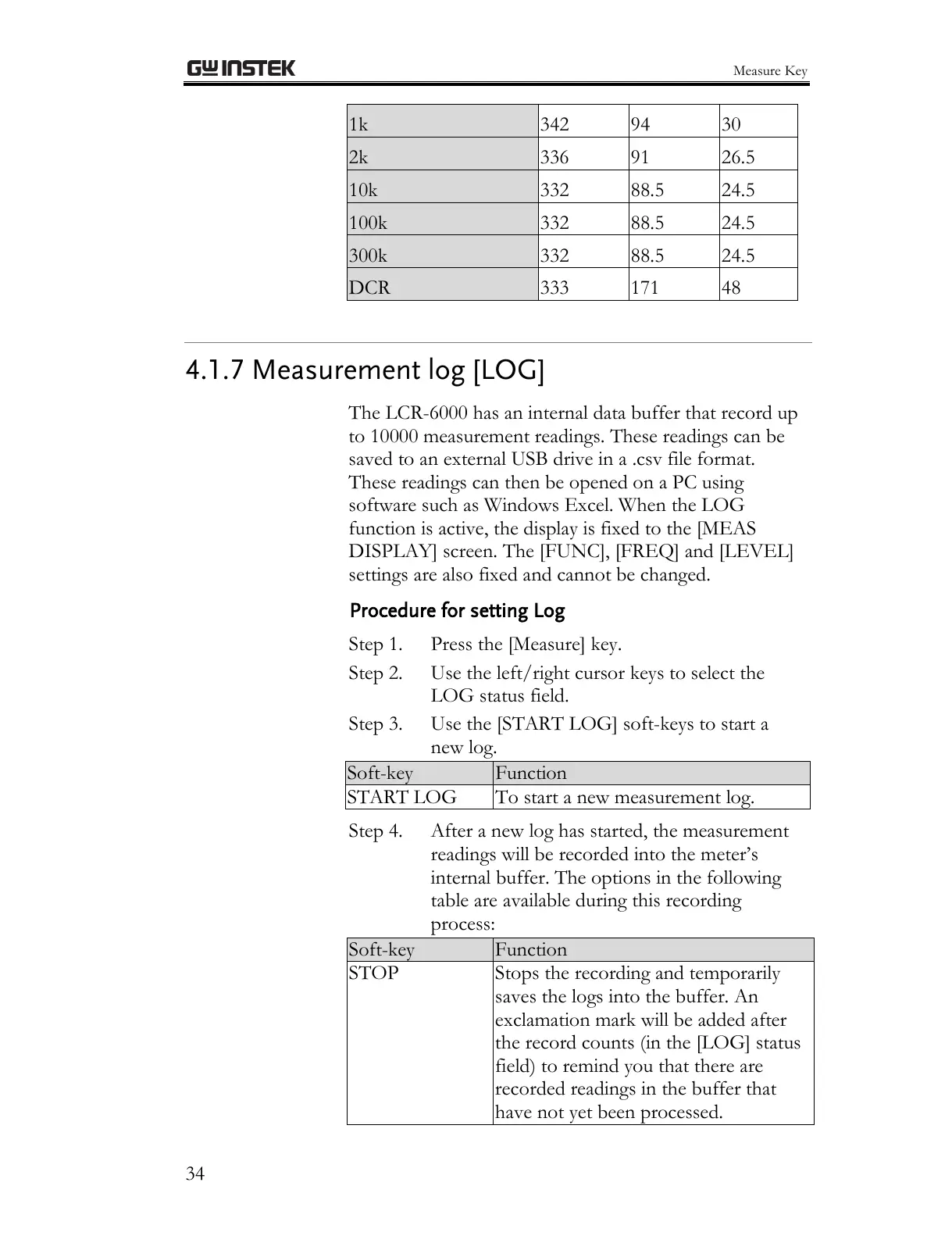

4.1.7 Measurement log [LOG]
The LCR-6000 has an internal data buffer that record up
to 10000 measurement readings. These readings can be
saved to an external USB drive in a .csv file format.
These readings can then be opened on a PC using
software such as Windows Excel. When the LOG
function is active, the display is fixed to the [MEAS
DISPLAY] screen. The [FUNC], [FREQ] and [LEVEL]
settings are also fixed and cannot be changed.
Procedure for setting Log
Step 1. Press the [Measure] key.
Step 2. Use the left/right cursor keys to select the
LOG status field.
Step 3. Use the [START LOG] soft-keys to start a
new log.
To start a new measurement log.
Step 4. After a new log has started, the measurement
readings will be recorded into the meter’s
internal buffer. The options in the following
table are available during this recording
process:
Stops the recording and temporarily
saves the logs into the buffer. An
exclamation mark will be added after
the record counts (in the [LOG] status
field) to remind you that there are
recorded readings in the buffer that
have not yet been processed.
