LCR-6000 Series User Manual
67

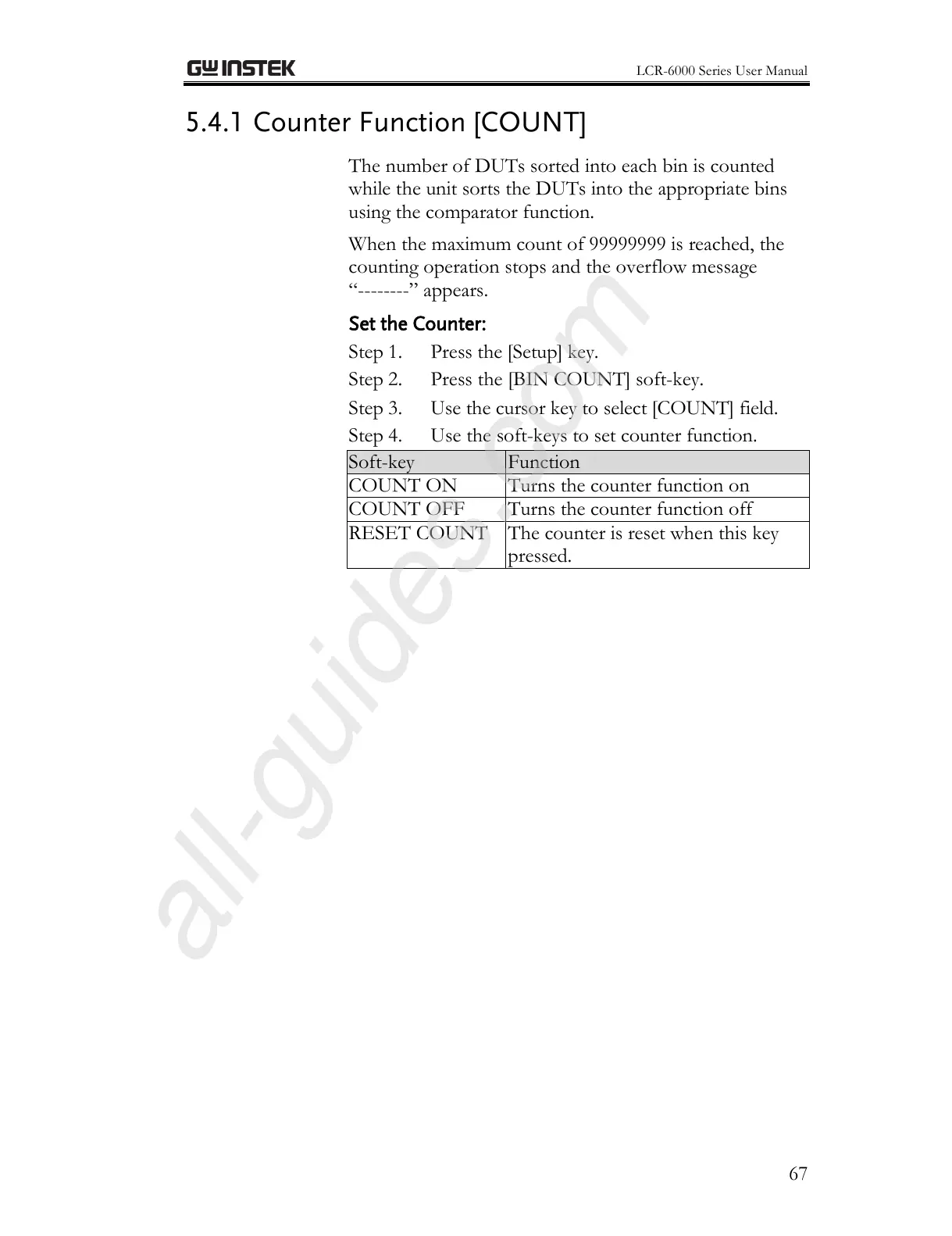

5.4.1 Counter Function [COUNT]
The number of DUTs sorted into each bin is counted
while the unit sorts the DUTs into the appropriate bins
using the comparator function.
When the maximum count of 99999999 is reached, the
counting operation stops and the overflow message
“--------” appears.
Set the Counter:
Step 1. Press the [Setup] key.
Step 2. Press the [BIN COUNT] soft-key.
Step 3. Use the cursor key to select [COUNT] field.
Step 4. Use the soft-keys to set counter function.
Soft-key
Function
COUNT ON
Turns the counter function on
COUNT OFF
Turns the counter function off
RESET COUNT
The counter is reset when this key
pressed.
