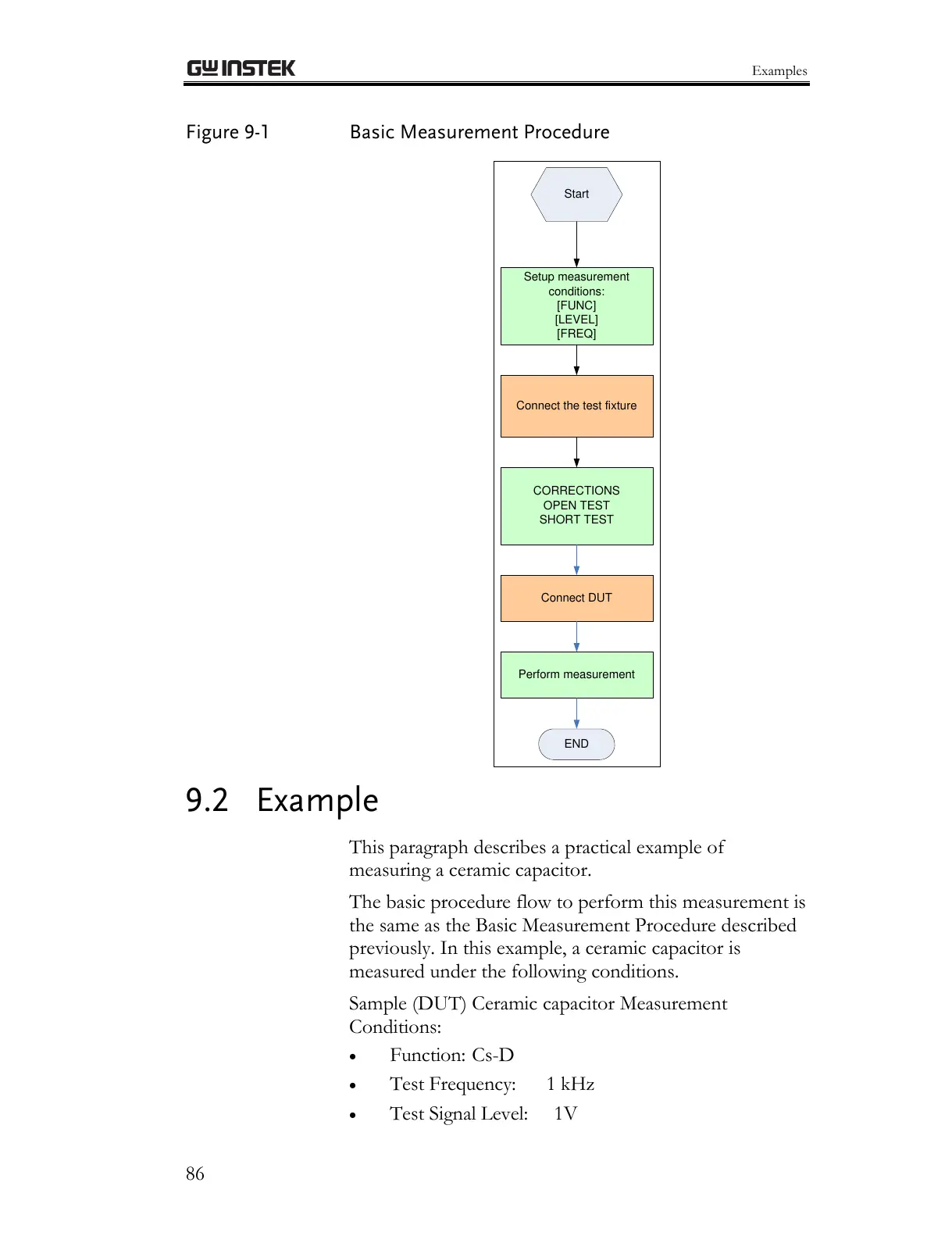

Figure 9-1 Basic Measurement Procedure
Start
Setup measurement
conditions:
[FUNC]
[LEVEL]
[FREQ]
Connect the test fixture
CORRECTIONS
OPEN TEST
SHORT TEST
Connect DUT
Perform measurement
END
9.2 Example
This paragraph describes a practical example of
measuring a ceramic capacitor.
The basic procedure flow to perform this measurement is
the same as the Basic Measurement Procedure described
previously. In this example, a ceramic capacitor is
measured under the following conditions.
Sample (DUT) Ceramic capacitor Measurement
Conditions:
 Function: Cs-D
 Test Frequency: 1 kHz
 Test Signal Level: 1V
