GW Instek LCR Series - MEASURE (METER MODE)

LCR-6000 Series User Manual
19

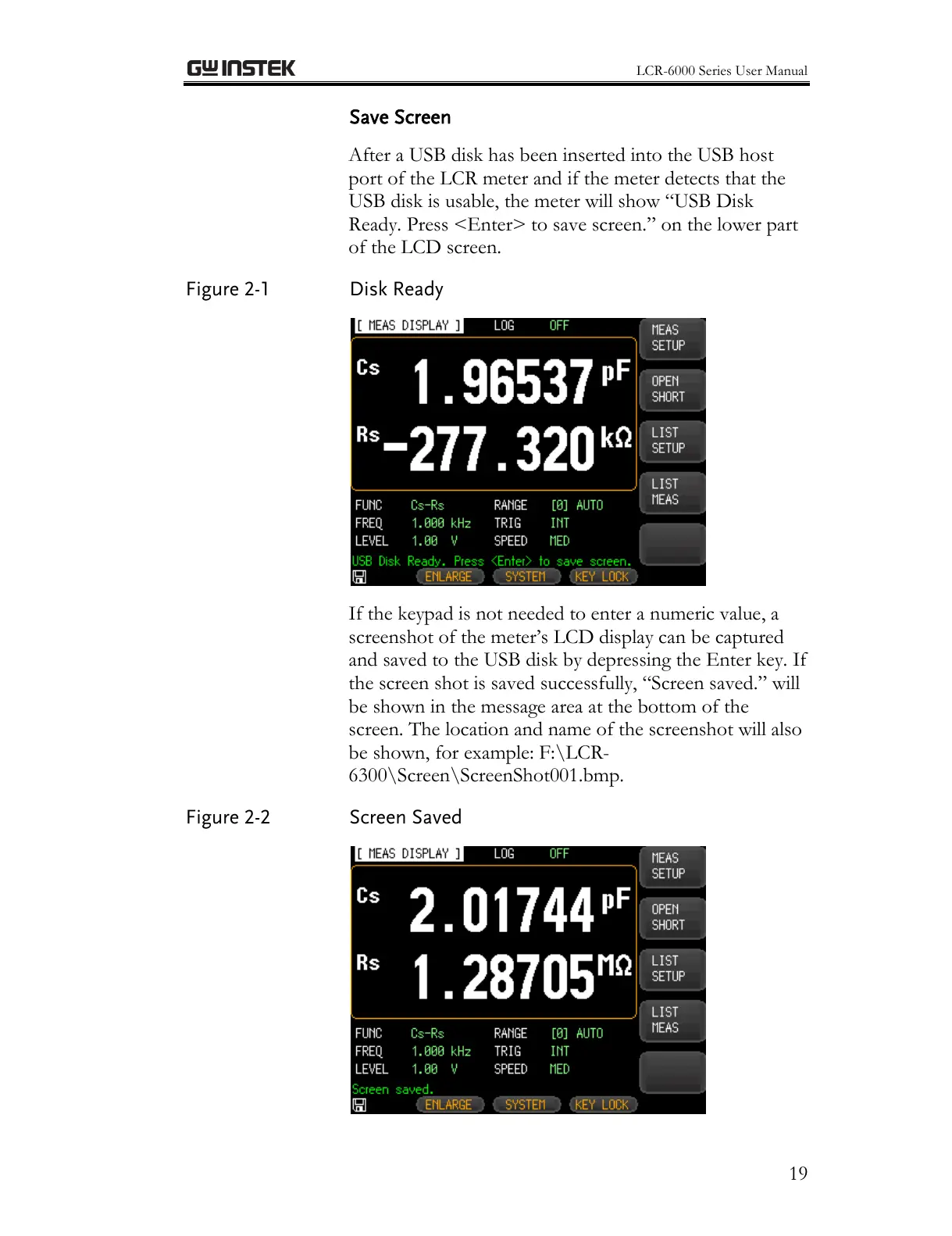

Save Screen
After a USB disk has been inserted into the USB host
port of the LCR meter and if the meter detects that the
USB disk is usable, the meter will show “USB Disk
Ready. Press <Enter> to save screen.” on the lower part
of the LCD screen.
Figure 2-1 Disk Ready
If the keypad is not needed to enter a numeric value, a
screenshot of the meter’s LCD display can be captured
and saved to the USB disk by depressing the Enter key. If
the screen shot is saved successfully, “Screen saved.” will
be shown in the message area at the bottom of the
screen. The location and name of the screenshot will also
be shown, for example: F:\LCR-
6300\Screen\ScreenShot001.bmp.
Figure 2-2 Screen Saved
