LCR-6000 Series User Manual
25

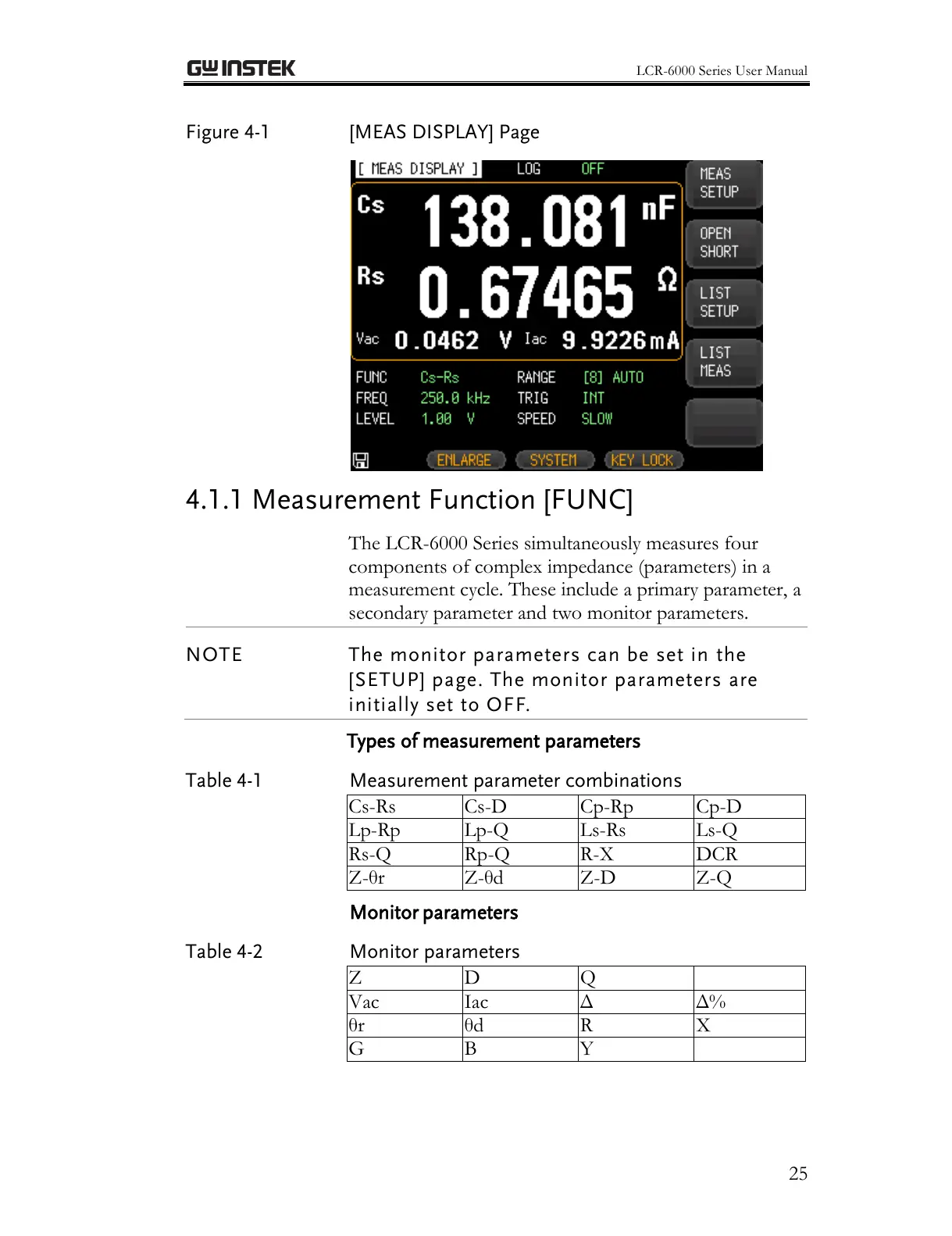

Figure 4-1 [MEAS DISPLAY] Page
4.1.1 Measurement Function [FUNC]
The LCR-6000 Series simultaneously measures four
components of complex impedance (parameters) in a
measurement cycle. These include a primary parameter, a
secondary parameter and two monitor parameters.
NOTE
The monitor parameters can be set in the
[SETUP] page. The monitor parameters are
initially set to OFF.
Types of measurement parameters
Table 4-1 Measurement parameter combinations
Cs-Rs
Cs-D
Cp-Rp
Cp-D
Lp-Rp
Lp-Q
Ls-Rs
Ls-Q
Rs-Q
Rp-Q
R-X
DCR
Z-θr
Z-θd
Z-D
Z-Q
Monitor parameters
Table 4-2 Monitor parameters
Z
D
Q
Vac
Iac
Δ
Δ%
θr
θd
R
X
G
B
Y
