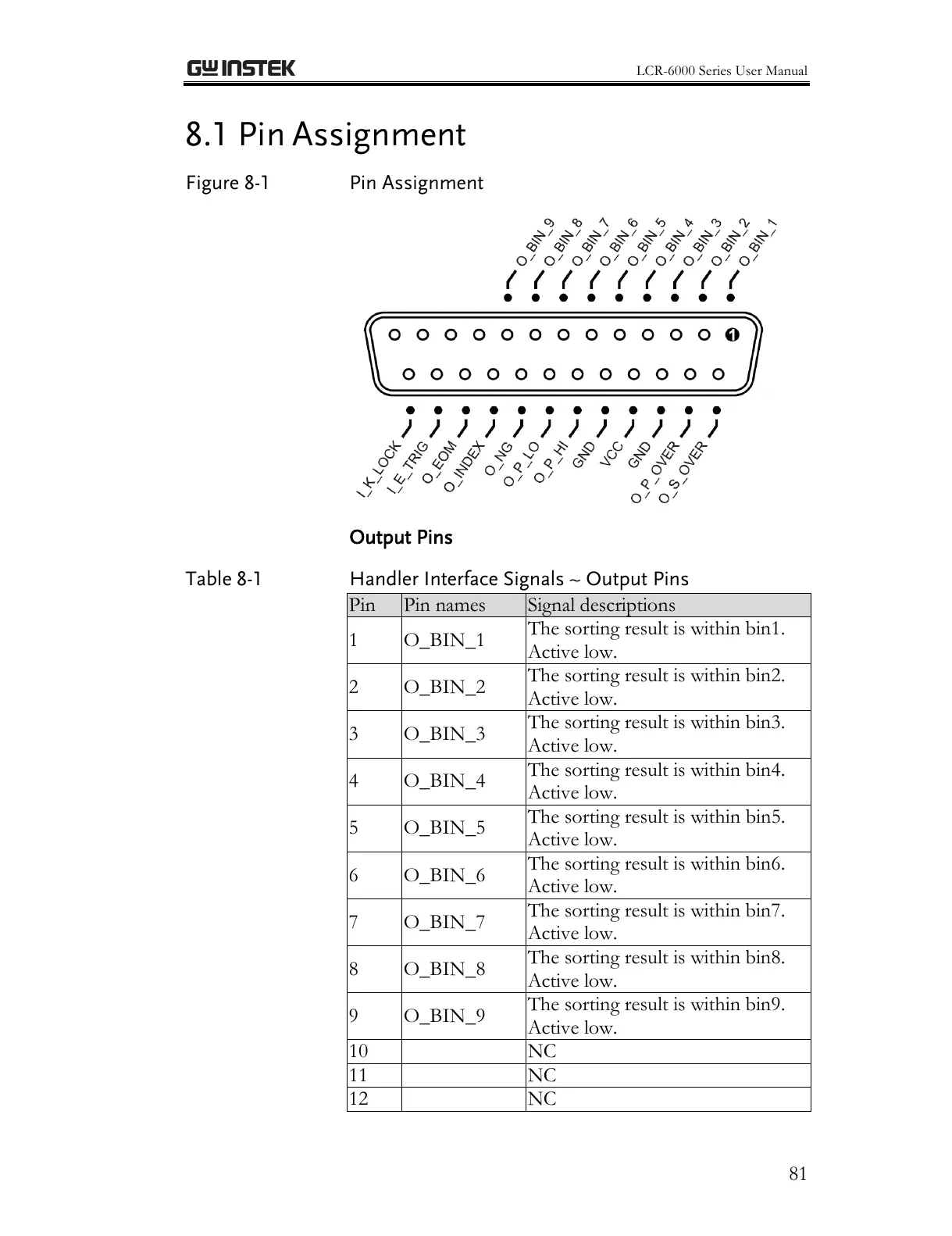

8.1 Pin Assignment
Figure 8-1 Pin Assignment
Output Pins
Table 8-1 Handler Interface Signals ~ Output Pins
Pin
Pin names
Signal descriptions
1
O_BIN_1
The sorting result is within bin1.
Active low.
2
O_BIN_2
The sorting result is within bin2.
Active low.
3
O_BIN_3
The sorting result is within bin3.
Active low.
4
O_BIN_4
The sorting result is within bin4.
Active low.
5
O_BIN_5
The sorting result is within bin5.
Active low.
6
O_BIN_6
The sorting result is within bin6.
Active low.
7
O_BIN_7
The sorting result is within bin7.
Active low.
8
O_BIN_8
The sorting result is within bin8.
Active low.
9
O_BIN_9
The sorting result is within bin9.
Active low.
10
NC
11
NC
12
NC
