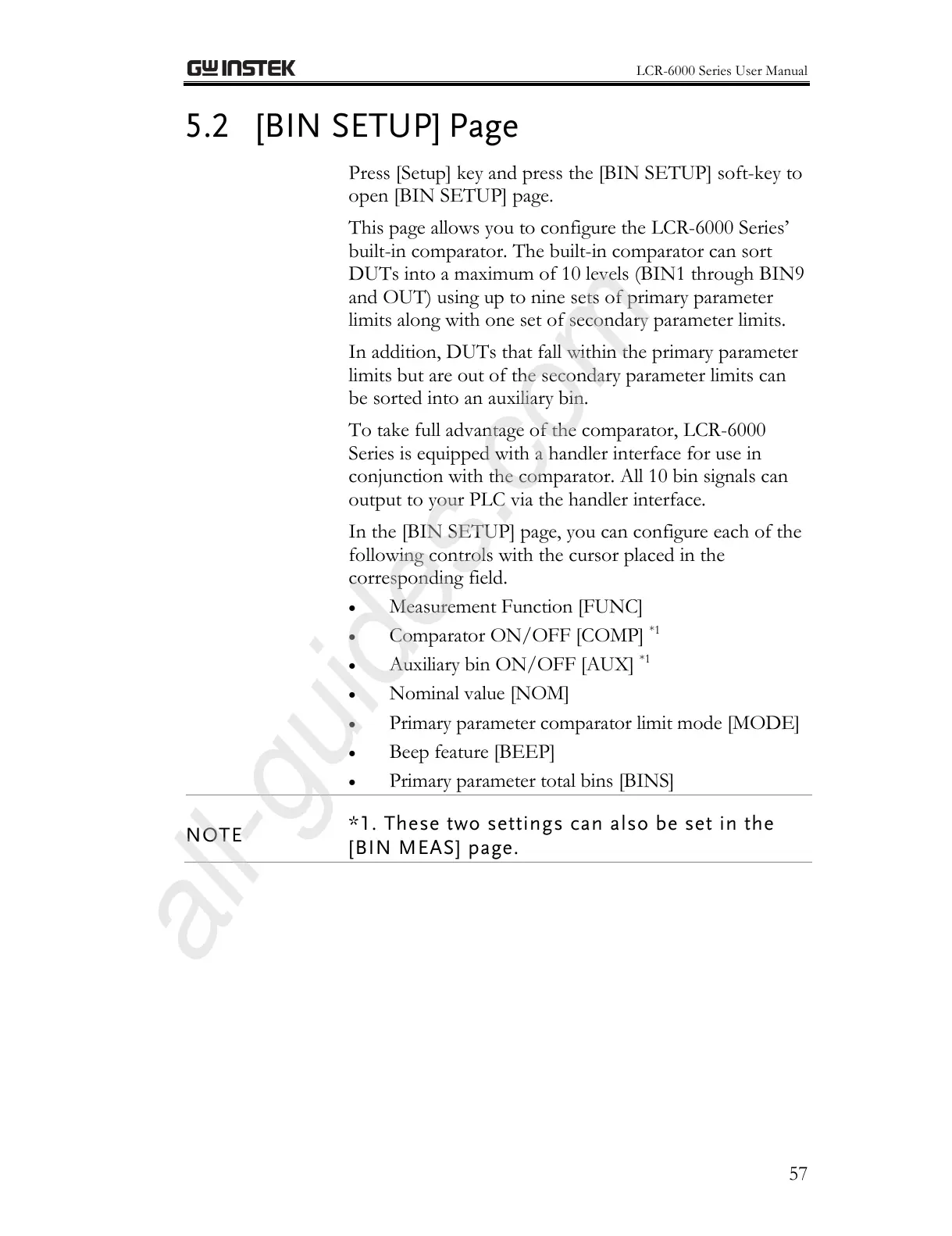

Press [Setup] key and press the [BIN SETUP] soft-key to
open [BIN SETUP] page.
This page allows you to configure the LCR-6000 Series’
built-in comparator. The built-in comparator can sort
DUTs into a maximum of 10 levels (BIN1 through BIN9
and OUT) using up to nine sets of primary parameter
limits along with one set of secondary parameter limits.
In addition, DUTs that fall within the primary parameter
limits but are out of the secondary parameter limits can
be sorted into an auxiliary bin.
To take full advantage of the comparator, LCR-6000
Series is equipped with a handler interface for use in
conjunction with the comparator. All 10 bin signals can
output to your PLC via the handler interface.
In the [BIN SETUP] page, you can configure each of the
following controls with the cursor placed in the
corresponding field.
Measurement Function [FUNC]
Comparator ON/OFF [COMP]
*1
Auxiliary bin ON/OFF [AUX]
*1
Nominal value [NOM]
Primary parameter comparator limit mode [MODE]
Beep feature [BEEP]
Primary parameter total bins [BINS]
