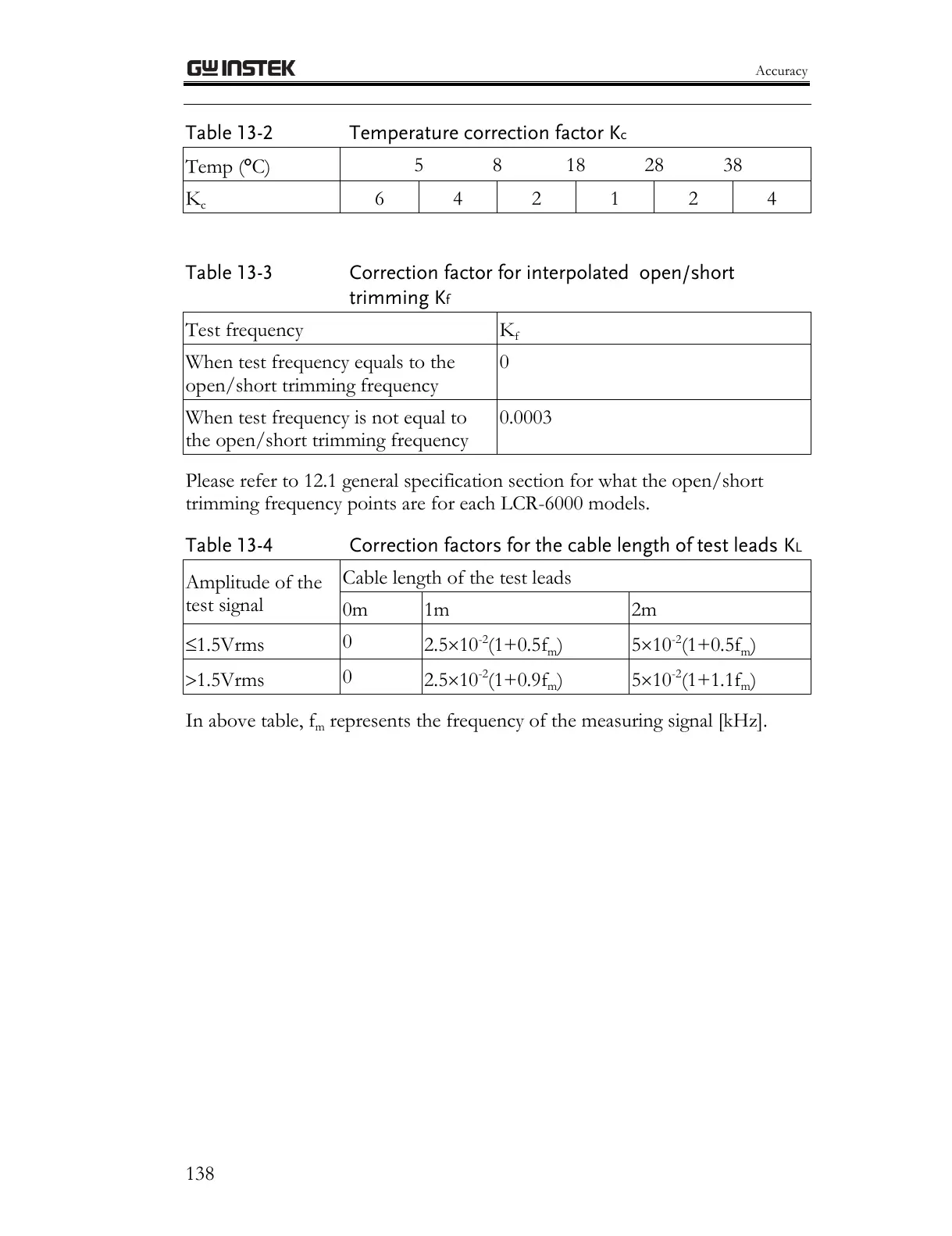

GW Instek LCR Series - Table 13-2 Temperature Correction Factor K; Table 13-3 Correction Factor for Interpolated Open;Short Trimming K Table 13-4 Correction Factors for the Cable Length of Test Leads K L

Accuracy
138
Table 13-2 Temperature correction factor Kc
Temp (ºC)
5
8
18
28
38
K
c
6
4
2
1
2
4
Table 13-3 Correction factor for interpolated open/short
trimming Kf
Test frequency
K
f
When test frequency equals to the
open/short trimming frequency
0
When test frequency is not equal to
the open/short trimming frequency
0.0003
Please refer to 12.1 general specification section for what the open/short
trimming frequency points are for each LCR-6000 models.
Table 13-4 Correction factors for the cable length of test leads KL
Amplitude of the
test signal
Cable length of the test leads
0m
1m
2m
1.5Vrms
0
2.510
-2
(1+0.5f
m
)
510
-2
(1+0.5f
m
)
1.5Vrms
0
2.510
-2
(1+0.9f
m
)
510
-2
(1+1.1f
m
)
In above table, f
m
represents the frequency of the measuring signal [kHz].
