Measure Key
30

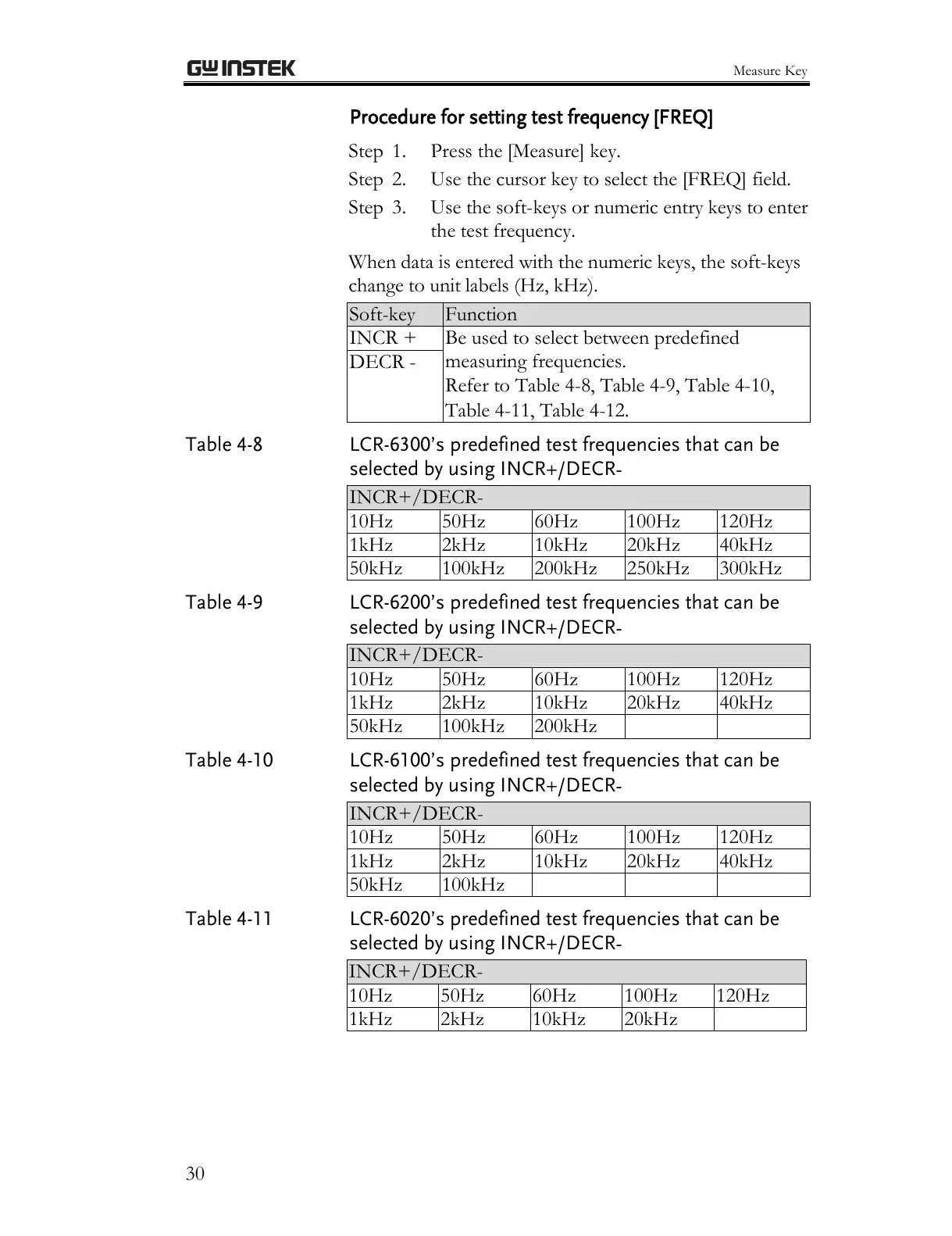

Procedure for setting test frequency [FREQ]
Step 1. Press the [Measure] key.
Step 2. Use the cursor key to select the [FREQ] field.
Step 3. Use the soft-keys or numeric entry keys to enter
the test frequency.
When data is entered with the numeric keys, the soft-keys
change to unit labels (Hz, kHz).
Be used to select between predefined
measuring frequencies.
Refer to Table 4-8, Table 4-9, Table 4-10,
Table 4-11, Table 4-12.
Table 4-8 LCR-6300’s predefined test frequencies that can be
selected by using INCR+/DECR‐
Table 4-9 LCR-6200’s predefined test frequencies that can be
selected by using INCR+/DECR‐
Table 4-10 LCR-6100’s predefined test frequencies that can be
selected by using INCR+/DECR‐
Table 4-11 LCR-6020’s predefined test frequencies that can be
selected by using INCR+/DECR‐
