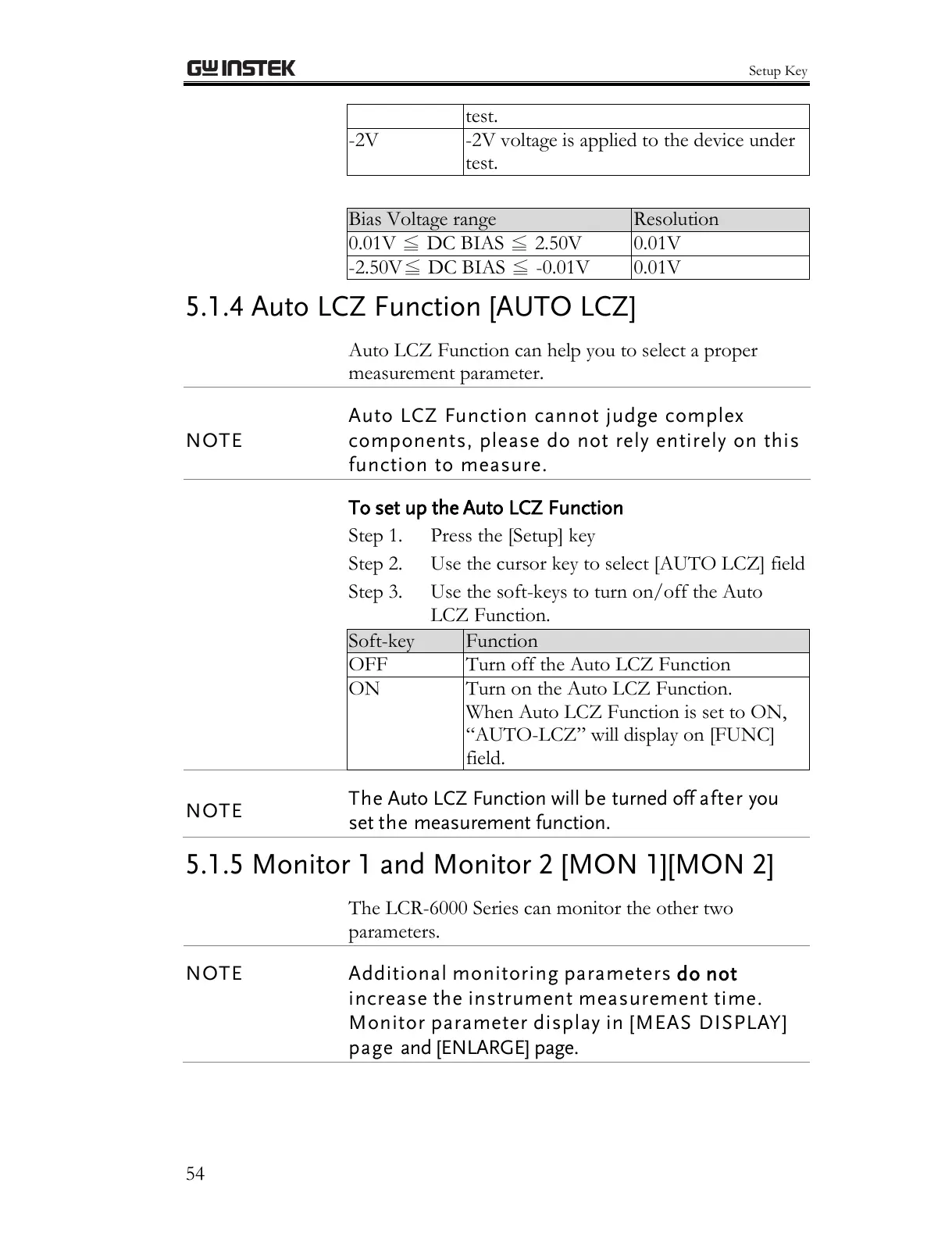

GW Instek LCR Series User Guide

Setup Key
54
test.
-2V
-2V voltage is applied to the device under
test.
Bias Voltage range
Resolution
0.01V ≦ DC BIAS ≦ 2.50V
0.01V
-2.50V≦ DC BIAS ≦ -0.01V
0.01V
5.1.4 Auto LCZ Function [AUTO LCZ]
Auto LCZ Function can help you to select a proper
measurement parameter.
NOTE
Auto LCZ Function cannot judge complex
components, please do not rely entirely on this
function to measure.
To set up the Auto LCZ Function
Step 1. Press the [Setup] key
Step 2. Use the cursor key to select [AUTO LCZ] field
Step 3. Use the soft-keys to turn on/off the Auto
LCZ Function.
Soft-key
Function
OFF
Turn off the Auto LCZ Function
ON
Turn on the Auto LCZ Function.
When Auto LCZ Function is set to ON,
“AUTO-LCZ” will display on [FUNC]
field.
NOTE
The Auto LCZ Function will be turned off after you
set the measurement function.
5.1.5 Monitor 1 and Monitor 2 [MON 1][MON 2]
The LCR-6000 Series can monitor the other two
parameters.
NOTE
Additional monitoring parameters do not
increase the instrument measurement time.
Monitor parameter display in [MEAS DISPLAY]
page and [ENLARGE] page.
