LCR-6000 Series User Manual
21
3. STARTUP
This chapter describes names and functions of the front panel, rear panel,
and screen display and provides the basic procedures for operating the LCR-
6000 Series.
 Front panel summary
 Rear panel summary
 Power On/Off
 Connect to Device under test
3.1 Front panel

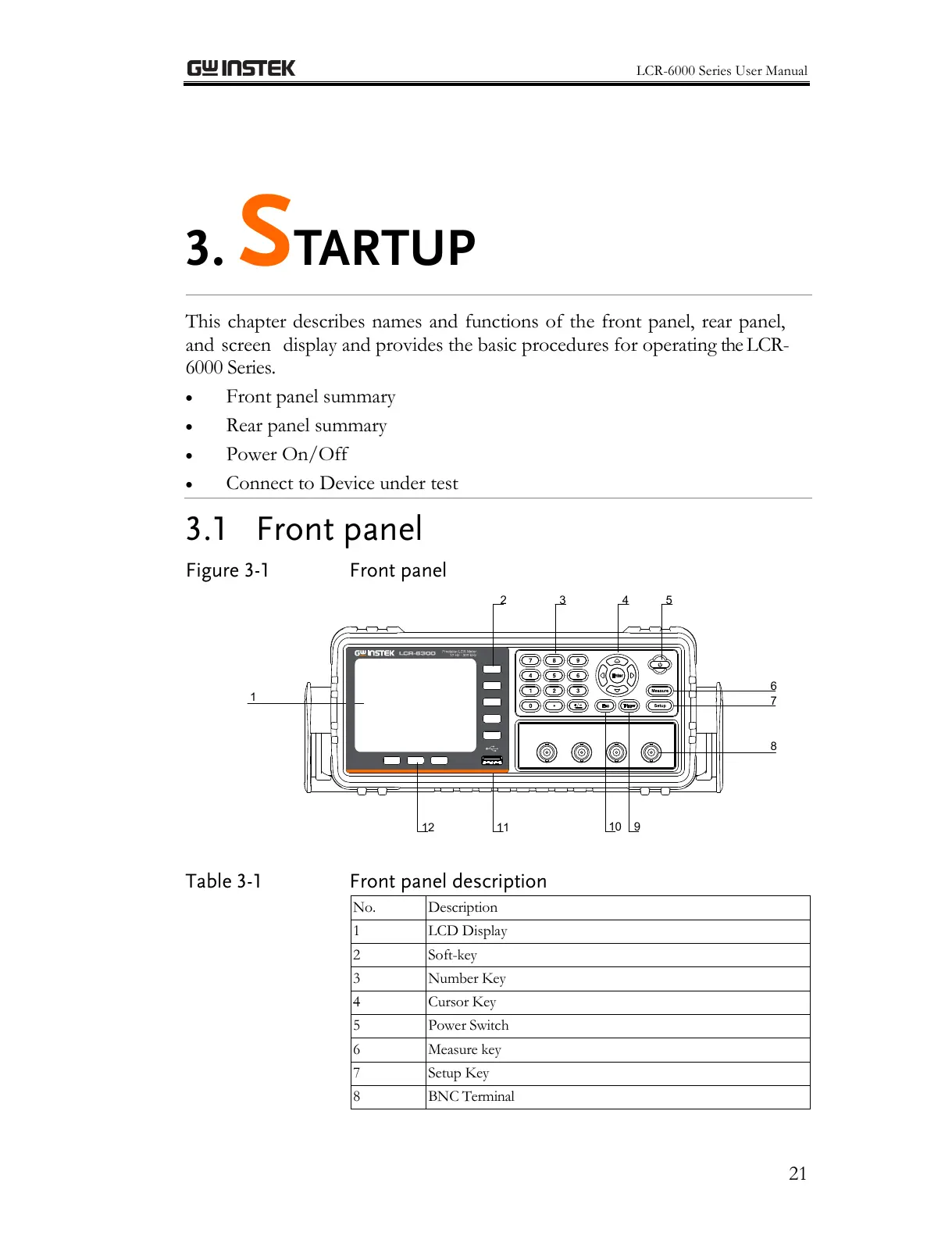

Figure 3-1 Front panel
1
11
5 3
12
2
6
7
8
4
910
Table 3-1 Front panel description
No.
Description
1
LCD Display
2
Soft-key
3
Number Key
4
Cursor Key
5
Power Switch
6
Measure key
7
Setup Key
8
BNC Terminal
