422
OPTIONS
96-8000
June 1999
If the rollers are not parallel, the APC must be moved. The APC can be moved slightly by tapping on the
leveling pads with a hammer. Leave the straight-edge against the edge of the rollers to ensure that the align-
ment isn't affected during APC installation.
Note: If the rollers are parallel, but are not aligned, the adjustments will be made later
in the "Fine Tuning" section.
14. In MDI mode, command an M15. The table will move to the pallet #2 load position (right rear corner
of the VMC). Repeat Steps 12 and 13 with the table in this position.
15. Tighten down the six SHCS on the APC brace evenly, so the APC is not pulled out of alignment.
Recheck the level and all alignments.
16. Open the hinged APC operator's panel cover by removing the two BHCS (see Figure 11.22).

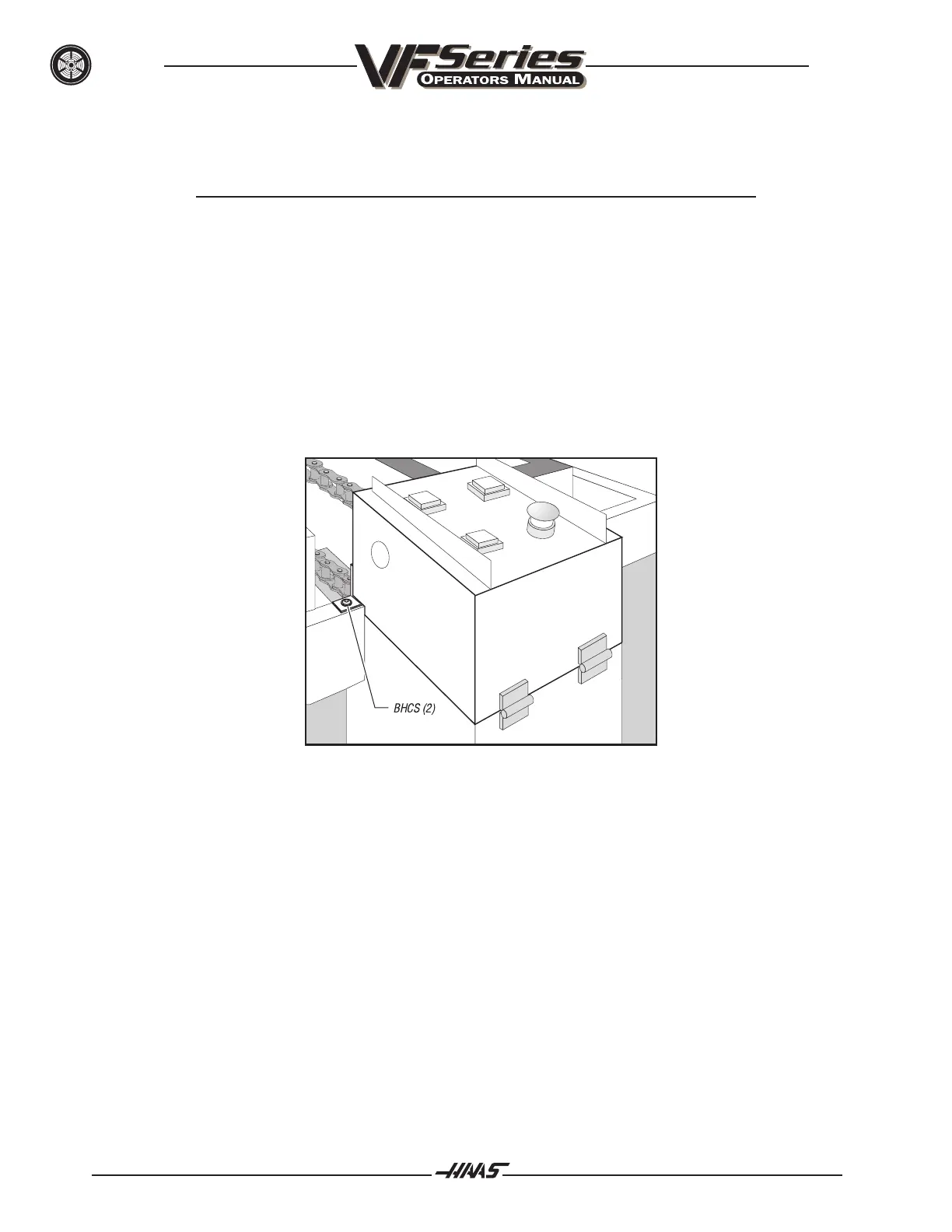

Figure 11.22 APC operator's panel cover.
17. Ensure that the drive roller on the APC chain is centered under the control box, as shown in Figure
11.23. If not, use the chain position adjustment tool to rotate it into this position.
To use this tool, place it into the center of the drive sprocket with the key in the sprocket's keyway (see Figure
11.24). Note that the tool only goes about 1/4" into the sprocket. Push down and turn the tool with a wrench in
order to position the chain. Important! Remember to remove the adjustment tool when finished.
