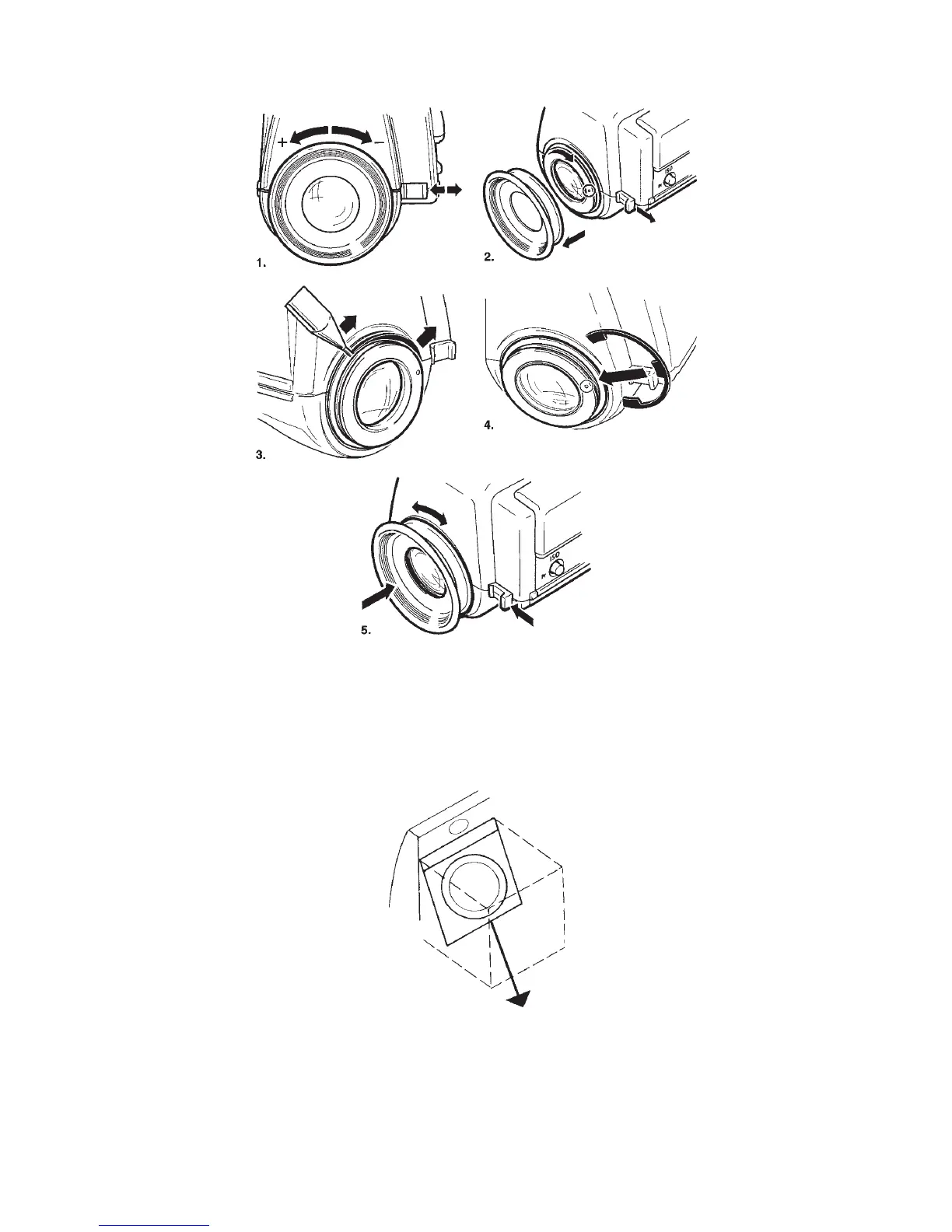

Figure 7-5 Eyepiece correction in PM and PME fi nders. (1) To set the diopter correction built
into the PME fi nders, pull out the eyepiece lock. Then turn the eyepiece to the proper setting
and push the lock lever back into the fi nder. (2) To change the eyepiece in the fi nder, remove
the eyecup, release the diopter lock, and rotate the diopter all the way to the right. (3) With
a pointed tool, remove the red “C” lock ring and remove the diopter. (4) Insert the corrective
diopter eyepiece and the red “C” lock ring. (5) Re-install the rubber eyecup, rotate the
eyepiece to the correct setting, and lock it by inserting the locking lever into fi nder.
Figure 7-6 Changing the magnifying lens on the standard focusing hood. To change the magni-
fying lens, remove the hood from the camera and open it. Hold the plate with the lens at an
angle, pull it downward, and remove it through the bottom. To insert the new plate, reverse
the process.
