Heraeus Electro-Nite CasTemp Wireless - Appendix 7: QUBE CasTip Lance Build Guide

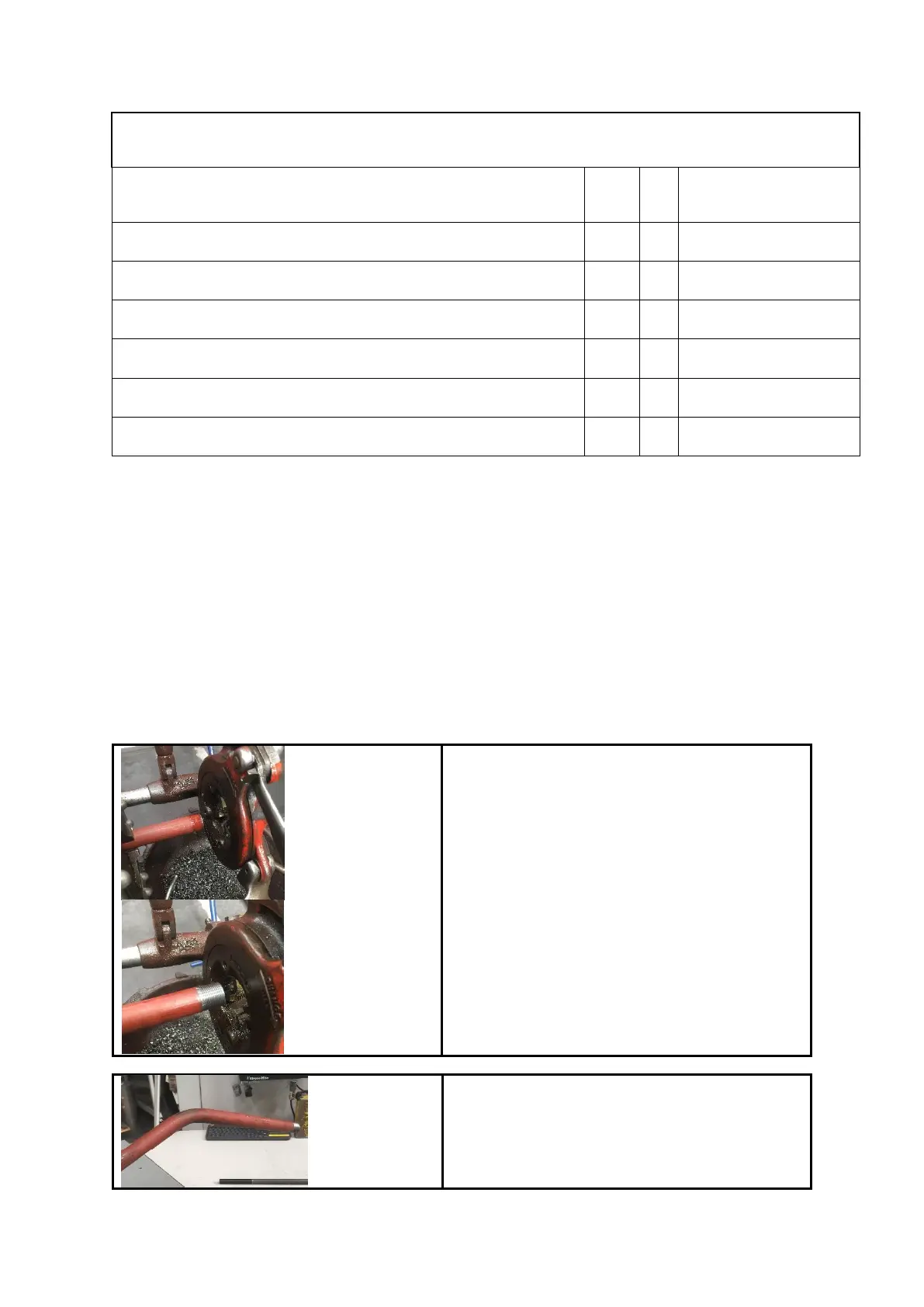

Parts Required
CASTIP LANCE HOLDER + CTB + CABLE P1 (including 4m 2
core Cu-Cu signal cable) - NOTCHED
1
PC
20850960
M.S. TUBE 1.1/16” O.D.X 10SWG (Steel Tube)
L-1.1
M
23910221
HANDLE W/CVR W/CONN FEM 4P NON-COMP (Lance Handle)
1
PC
39800017
¾’’ BSP M.I LOCKNUT
1
PC
24006511
INSULATION TAPE BLACK
0. 4
M
24014211
Red crimp type 1-4L 22-16 (suitable for 4mm stud)
2
PC
RS 267 3622 or similar
Terminal block (2 segments of 12) nylon 2.5mm
2
250V
2/12
PC
RS 464-9744 similar
Tools Required
• Wire Cutters
• Stilsons
• Knife
• Philips and Flat Head Screw Driver
• Tube Threading Machine W/ ¾ BSPT Die
• Tube Bender
• 3mm Allen key
• Digital Multimeter
• Cable stripper
• Crimping tool
Take the tube which has been cut to length and
thread 40mm of each end to ¾ BSPT.
Make sure to clean the inside of the tube free of
swarf and burrs to which could damage the cable.
Bend the tube to the desired angle for the
application. For more aggressive bends the tube
may need to be over bent as it may spring back a
small amount.
