DS-76xx-I2/xP/4S NVR UM
119
NUCLEUS
1) Click Custom to configure the nucleus settings.
Enter the employee no. shift no. and the terminal no. in the field. The matching message
sent from the POS device will be used as the valid POS data. The NUCLEUS protocol must
be used in the RS-232 connection communication.
6) Select the connection mode to TCP Reception, UDP Reception, Multicast, RS-232, USB-to-RS-
232 or Sniff, and click Parameters to configure the parameters for each connection mode.
TCP Connection
1) When using TCP connection, the port must be set from 1 to 65535, and the port for each
POS machine must be unique.
2) Set the Allowed Remote IP Address of the device sending the POS message.

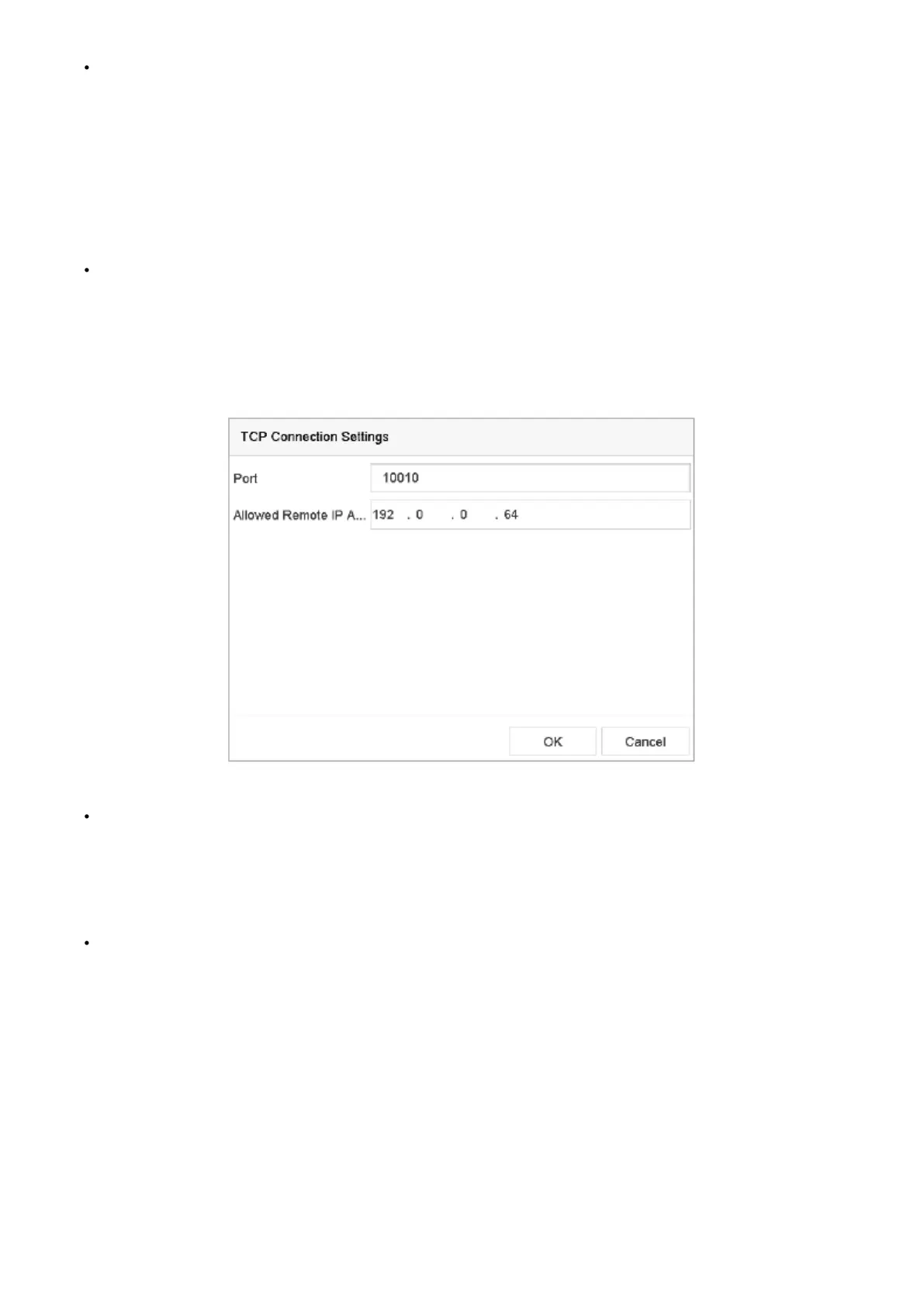

Figure 15-4 TCP Connection Settings
UDP Connection
1) When using UDP connection, the port must be set from 1 to 65535, and the port for
each POS machine must be unique.
2) Set the Allowed Remote IP Address of the device sending the POS message.
USB-to-RS-232 Connection: Configure the port parameters of the USB-to-RS-232
convertor, including the serial number of port, baud rate, data bit, stop bit, parity and flow
ctrl.
