4.27 Foot Section (Lift Off)
Chapter 4: Procedures
Affinity® Four Birthing Bed Service Manual (195826 REV 2) 4 - 45
4
9. Make a note of the wires and cable assembly routings and connections to make sure that they are
installed correctly during the replacement procedure.
10. Remove the three screws (G) that attach the caregiver siderail cover (H) to the siderail assembly (C).
11. Carefully remove the caregiver siderail cover from the siderail assembly (C).
12. Make a note of the orientation of the wires and cable assemblies to make sure proper installation
during the replacement procedure.
13. Remove the four screws (D) that attach the P.C. switch board (E) to the caregiver siderail cover (H).
14. Slide the P.C. switch board (E) off the caregiver siderail cover (H) tabs, and remove the board from
the caregiver siderail cover (H).
15. Disconnect the two SideCom® Communication System cable assemblies (F) from the P.C. switch
board (E).
REPLACEMENT
1. Do the removal procedure in reverse order.
2. Do the “Function Checks” on page 2-5.

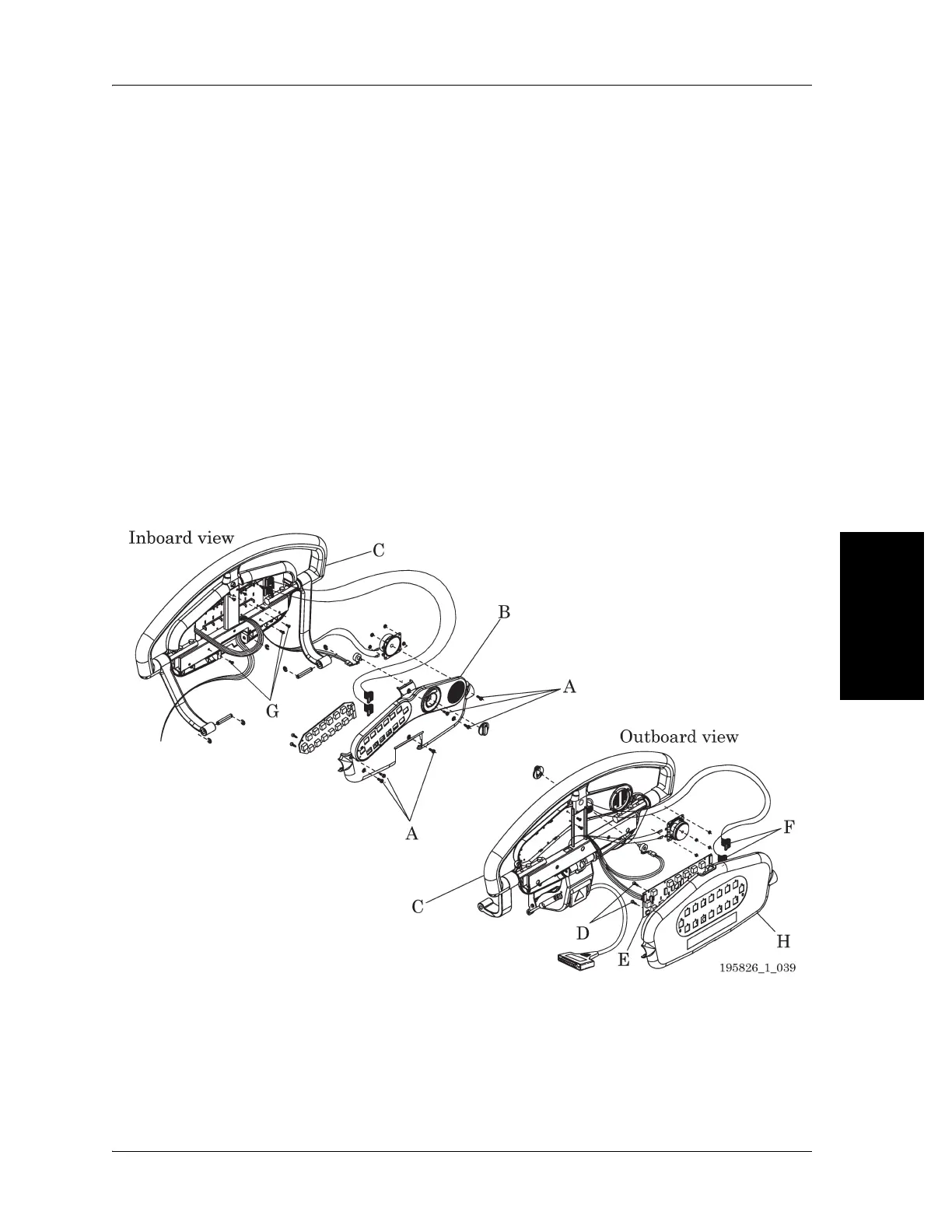

Figure 4-30. Caregiver Siderail (Outboard) P.C. Switch Board
4.27 Foot Section (Lift Off)
Tools: None
REMOVAL
1. Turn the foot mattress side panels (A) up (see Figure 4-31 on page 4-46).
