4.23 Lockout Switch Assembly
Chapter 4: Procedures
4 - 40 Affinity® Four Birthing Bed Service Manual (195826 REV 2)

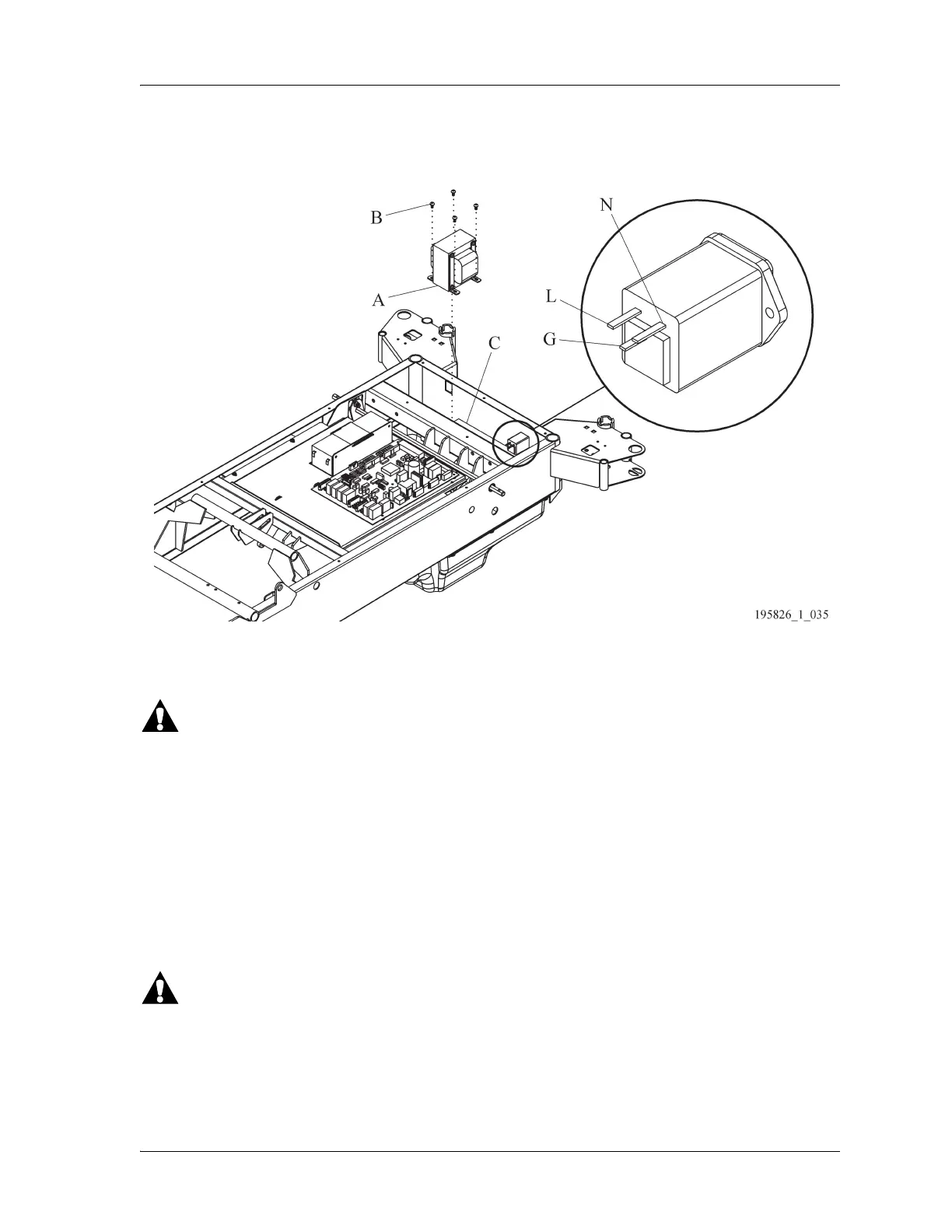

Figure 4-26. Transformer Assembly
4.23 Lockout Switch Assembly
Tools: None
The voltage in the electrical system presents an electrical shock hazard. Do standard electrical service
procedures before attempting service within the P.C. board enclosure. Follow all electrical safety
precautions when servicing the bed’s electrical system. Failure to do so could cause personal injury or
equipment damage.
REMOVAL
1. Set the brake/steer pedal to the brake position.
2. Make sure that the bed is out of the Trend-Like position.
3. Raise the head section to the high position.
4. Raise the bed to the high position.
Failure to unplug the bed could cause injury or equipment damage.
5. Unplug the bed from its power source.
6. Put the siderail lockout switch at the head end of the bed in the locked position.
7. Remove the top motor cover (see Procedure 4.1 on page 4-3).
