4.13 Foot Support Module
Chapter 4: Procedures
4 - 24 Affinity® Four Birthing Bed Service Manual (195826 REV 2)
4.13 Foot Support Module
Tools: 5/32” hex wrench 7/16” wrench T25 Torx® head bit
Ratchet
REMOVAL
1. Set the brake/steer pedal to the brake position.
2. Make sure the bed is out of the Trend-Like position.
Failure to unplug the bed could cause injury or equipment damage.
3. Unplug the bed from its power source.
4. Put the siderail lockout switch at the head end of the bed in the locked position.
5. Remove the foot section from the bed. See Procedure 4.17 on page 4-29.
6. Remove the set screw (A) that secures the foot support module (B) to the yoke assembly (C) (see
Figure 4-14 on page 4-24).
7. Remove the foot support module (B) from the yoke assembly (C).

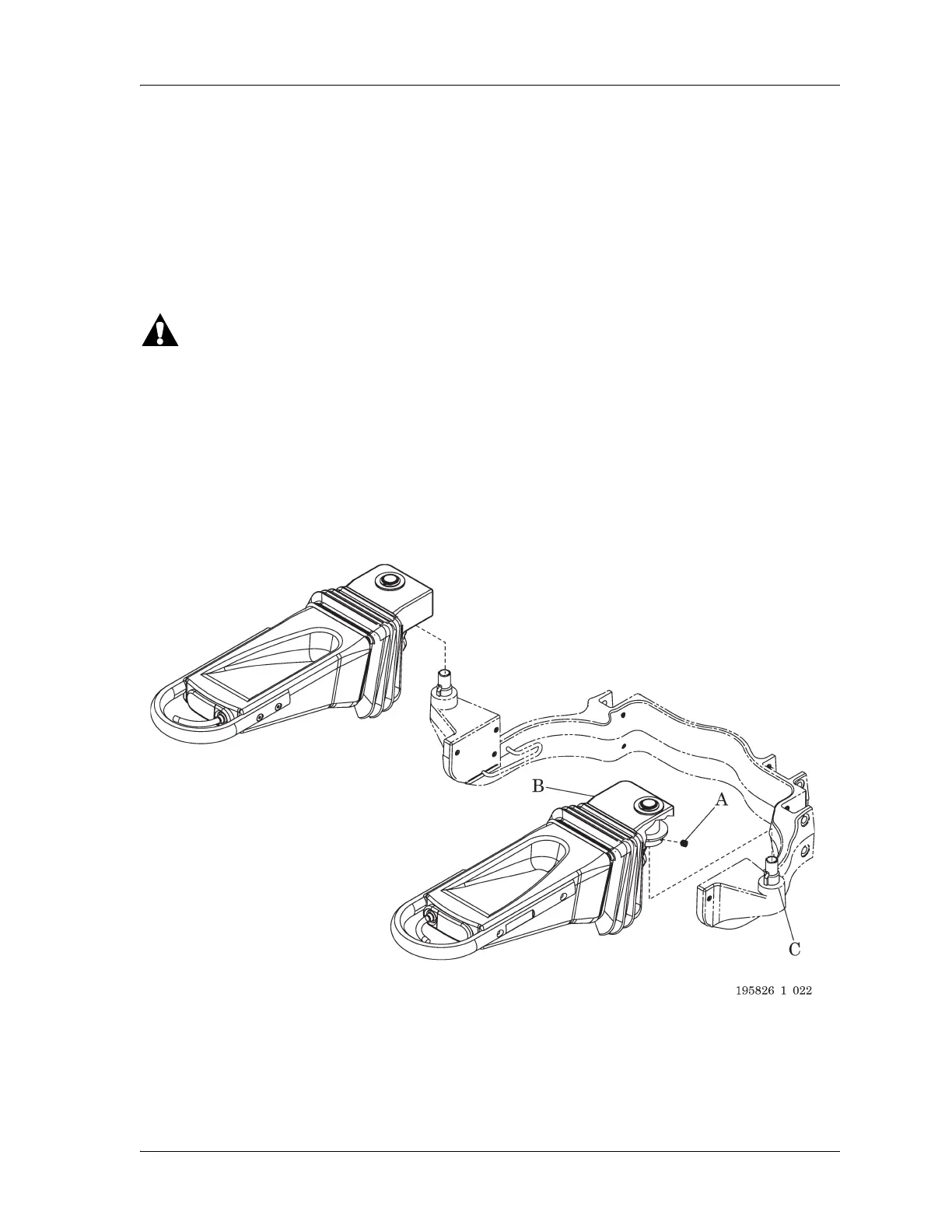

Figure 4-14. Foot Support Module
REPLACEMENT
1. Do the removal procedure in reverse order.
2. Do the “Function Checks” on page 2-5.
