4.3 Night Light and Cable Assembly
Chapter 4: Procedures
Affinity® Four Birthing Bed Service Manual (195826 REV 2) 4 - 5
4
NOTE:
The bottom cover has a gasket installed and the night light P.C. board will be connected to the cover.

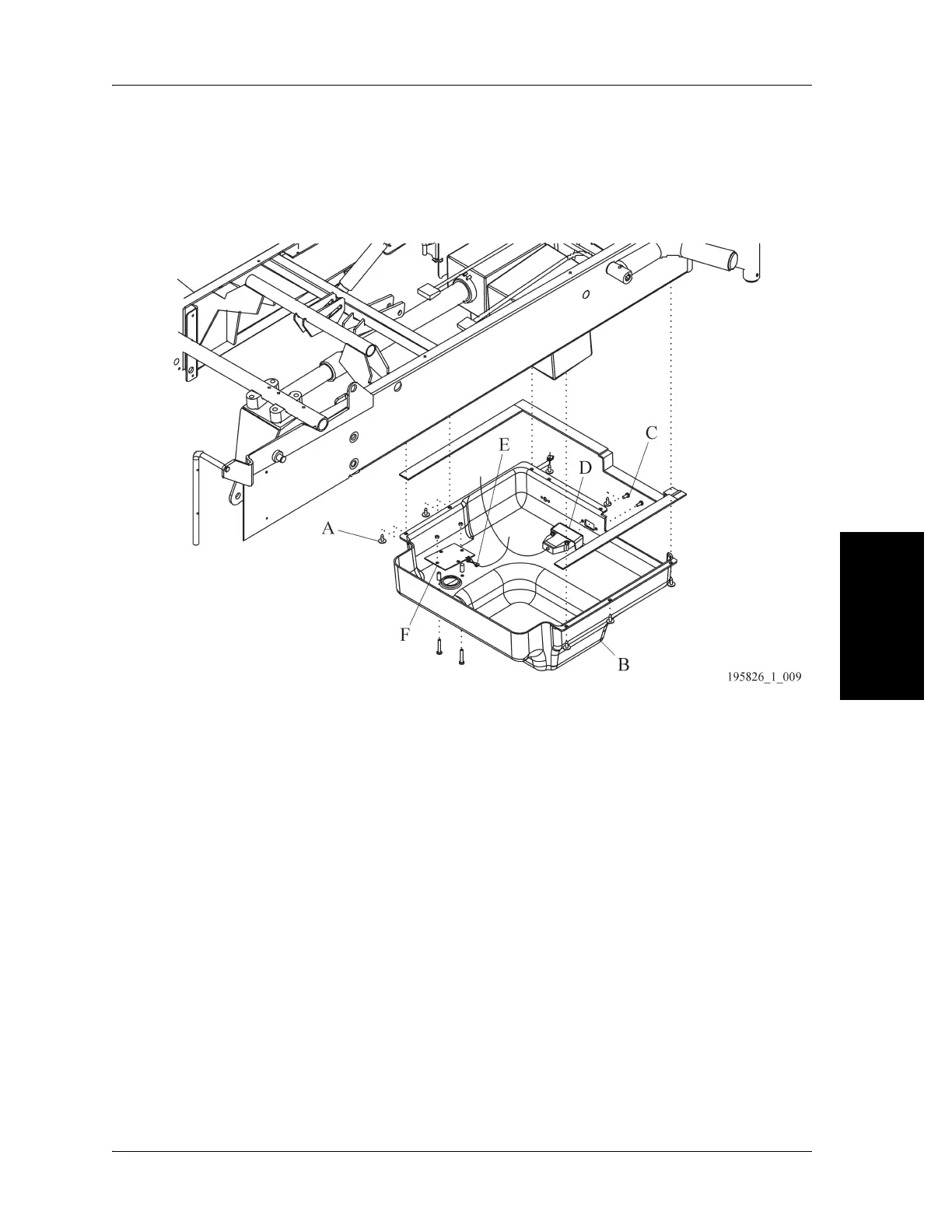

Figure 4-2. Bottom Motor Cover Assembly
REPLACEMENT
1. Do the removal procedure in reverse order.
2. Do the “Function Checks” on page 2-5.
4.3 Night Light and Cable Assembly
Tools: T25 Torx® head bit Ratchet
REMOVAL
1. Remove the bottom motor cover (see Procedure 4.2 on page 4-4).
2. Remove the two screws (B) and the two nuts (C) that attach the night light P.C. board (A) to the
bottom cover (D) (see
Figure 4-3 on page 4-6).
3. Remove the night light P.C. board assembly (A) from the bottom motor cover (D). Make sure that
you do not damage the bottom motor cover gasket (E).
REPLACEMENT
1. Do the removal procedure in reverse order.
2. Do the “Function Checks” on page 2-5.
