4.4 Hilow Drive Motor Assembly
Chapter 4: Procedures
4 - 6 Affinity® Four Birthing Bed Service Manual (195826 REV 2)
Figure 4-3. Night Light
4.4 Hilow Drive Motor Assembly
Tools: T25 Torx® head bit Ratchet Needle nose pliers
Warehouse safety stand kit (M01976) (optional)
REMOVAL
1. Set the brake/steer pedal to the brake position.
2. Raise the bed to the high position.
3. Raise the head section to the high position.
WARNING:
Failure to unplug the bed could cause injury or equipment damage.
4. Unplug the bed from its power source.
5. Put the siderail lockout switch at the head end of the bed in the locked position.
6. Remove the top motor cover (see Procedure 4.1 on page 4-3).
7. Remove the bottom motor cover (see Procedure 4.2 on page 4-4).
WARNING:
You must support the bed. The bed will fall during this procedure if not supported. Failure to support
the bed could cause personal injury or equipment damage.

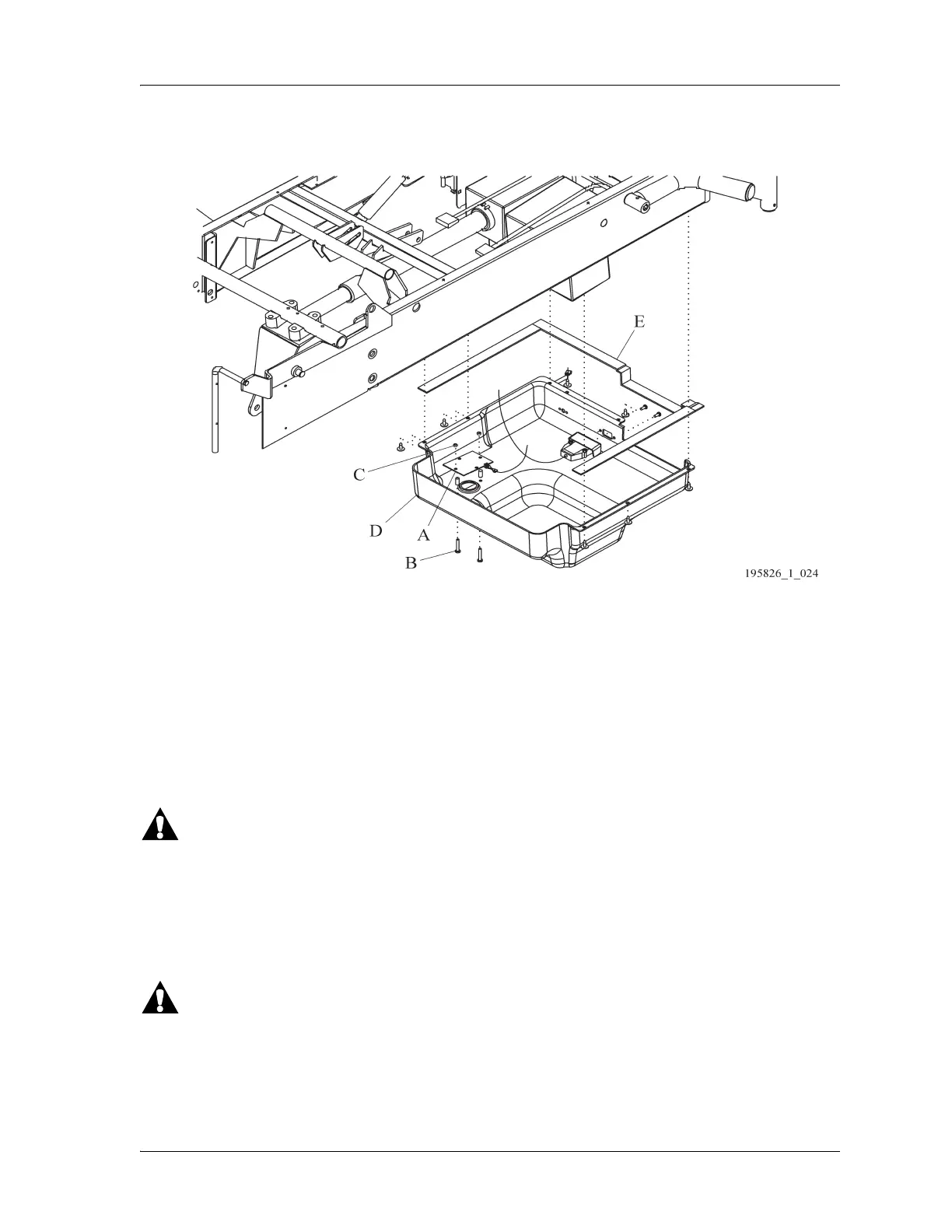

8. Put the C-channel pieces of the warehouse safety stand in the locations (A) shown in Figure 4-4 on
page 4-7.
9. Make sure that the warehouse safety stand is adequately assembled and secured.
