Hill-Rom Affinity P3700E - Labor Bar (P3613); Installation

4.35 Labor Bar (P3613)
Chapter 4: Procedures
4 - 58 Affinity® Four Birthing Bed Service Manual (195826 REV 2)

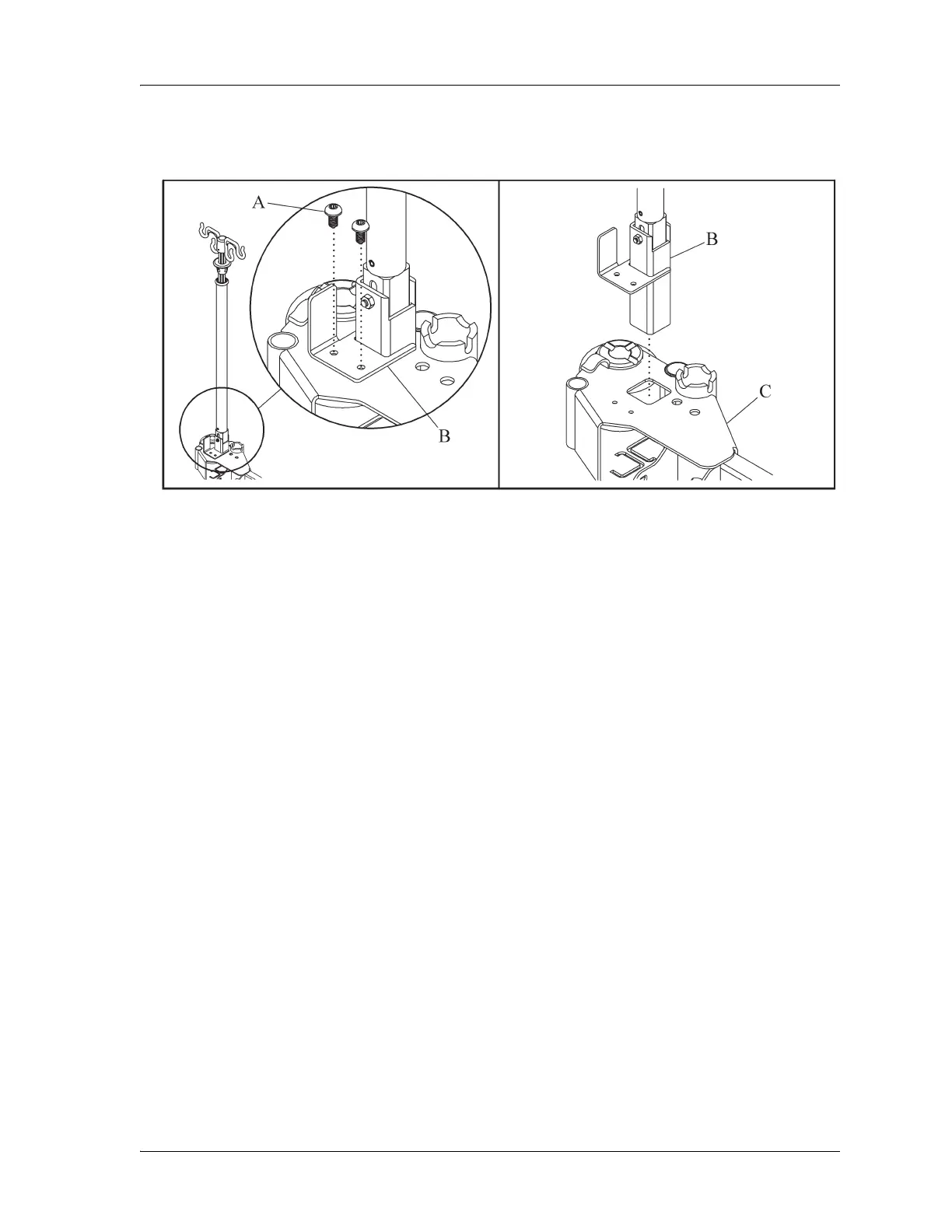

Figure 4-38. IV Pole
REPLACEMENT
Do the removal procedure in reverse order.
4.35 Labor Bar (P3613)
Tools: None
INSTALLATION
1. Determine the orientation of the labor bar that is required for the position of the patient.
2. Insert the labor bar (A) into the leg support sockets (B) between the seat and foot cushions (see
Figure 4-39 on page 4-59).
