4.8 Head Section Gas Spring Damper (CPR Assist)
Chapter 4: Procedures
Affinity® Four Birthing Bed Service Manual (195826 REV 2) 4 - 15
4

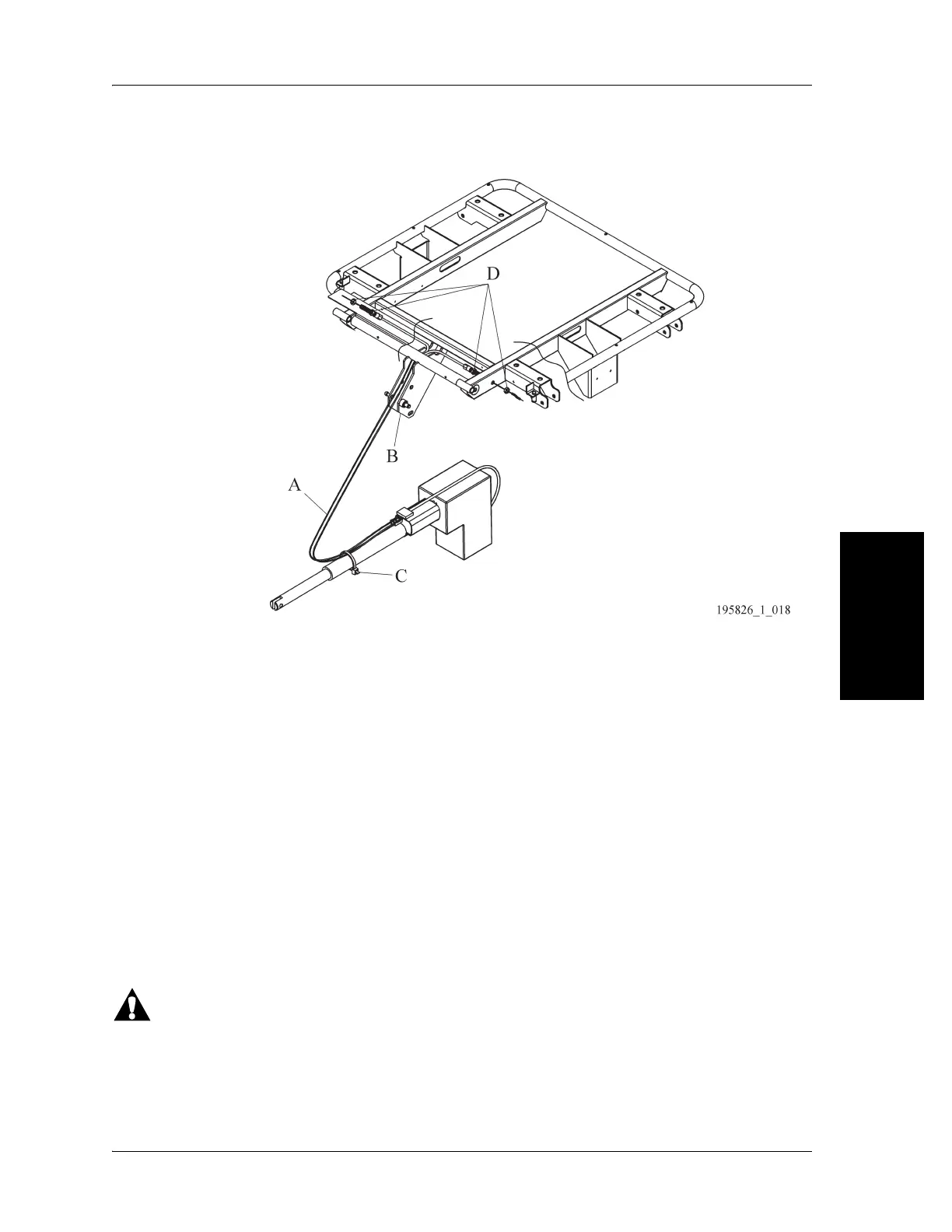

Figure 4-8. CPR Release
10. Make sure the CPR cables (A) are secured loosely with the cable tie (C) located on the head drive
motor assembly.
NOTE:
The cable tie should be snug enough to attach the cable, but not tight enough to pinch the cable
sheath.
11. Adjust the CPR cable tensioning nuts (D) until the CPR release works correctly on both sides of the
bed.
12. Do the “Function Checks” on page 2-5.
4.8 Head Section Gas Spring Damper (CPR Assist)
Tools: Needle nose pliers Screwdriver
Warehouse safety stand kit (M01976) or equivalent
REMOVAL
1. Raise the bed to the highest position.
WARNING:
Do not work under an unsupported load. Make sure to install the jack stands or suitably support the
bed. Personal injury can occur.
2. Support the bed with the warehouse safety stand kit (or equivalent).
