4.37 Telescoping Calf Supports (P35745A) or Telescoping Full Leg Supports (P7634C)
Chapter 4: Procedures
Affinity® Four Birthing Bed Service Manual (195826 REV 2) 4 - 61
4

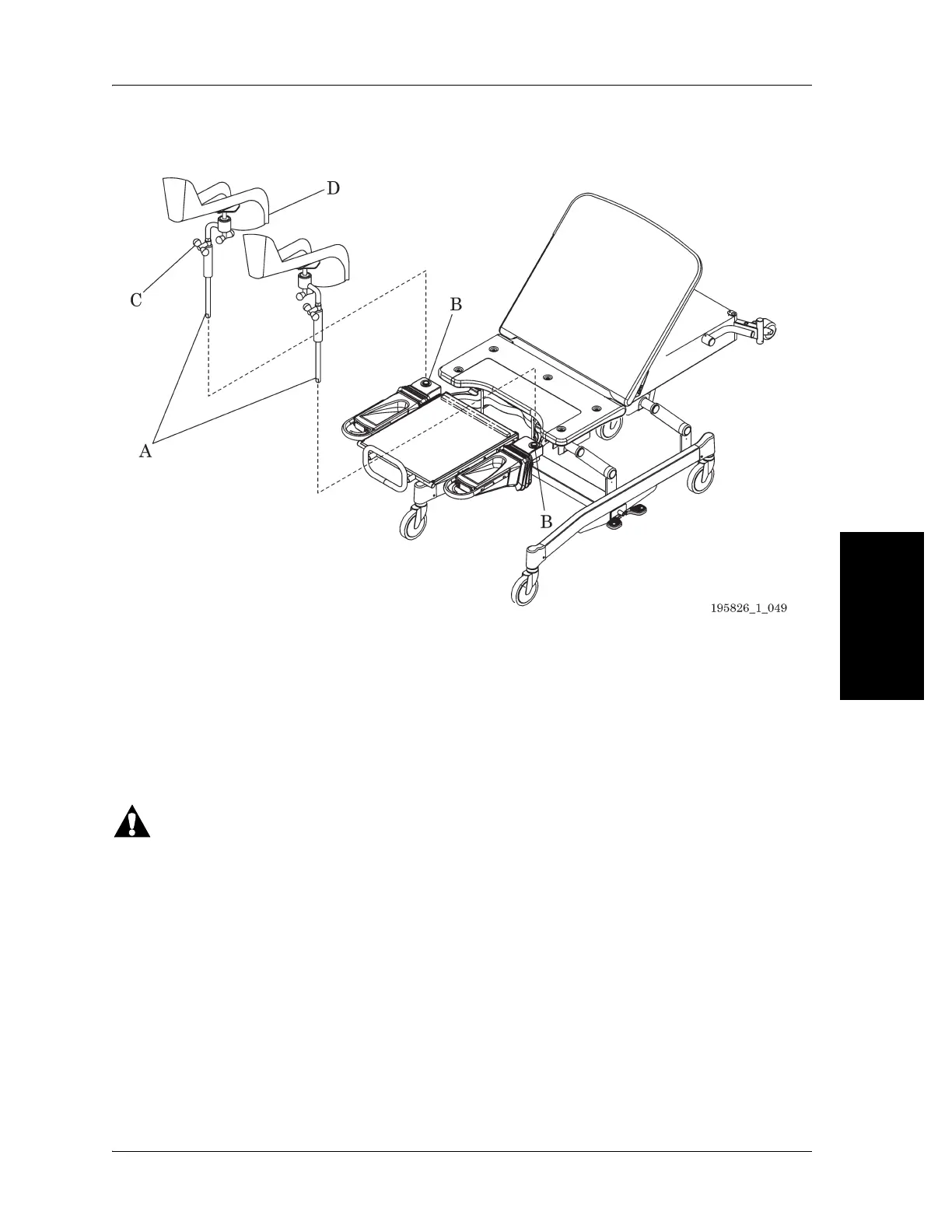

Figure 4-40. Telescoping Calf or Full Leg Supports
5. Make sure that the telescoping supports (A) are fully installed and indexed in the applicable
position.
The ball joints can be indexed inward or outward for different sized patients.
ADJUSTMENT
1. Loosen the swivel clamp screws (C) so that the cradles (D) can be turned to the desired direction.
Failure to tighten the screws may cause the cradles to slip and lose their original position. Personal
injury could occur.
2. Tighten the swivel clamp screws (C) to hold the cradles (D) in the desired position.
REMOVAL
To remove the telescoping supports, reverse the installation procedure.
