Hill-Rom Affinity P3700E - Patient Siderail (Inboard) P.C. Switch Board

4.25 Patient Siderail (Inboard) P.C. Switch Board
Chapter 4: Procedures
4 - 42 Affinity® Four Birthing Bed Service Manual (195826 REV 2)
WARNING:
Failure to unplug the bed could cause injury or equipment damage.
4. Unplug the bed from its power source.
5. Put the siderail lockout switch at the head end of the bed in the locked position.
6. Disconnect the siderail cable (A) from the cable (B) that connects to the logic control P.C. board (see
Figure 4-28 on page 4-42).
7. Disconnect the ground strap (H).
CAUTION:
Support the siderail during the removal procedure. Failure to do so could cause equipment damage.
8. Remove the four e-rings (C) that attach the siderail assembly (D) to the head section.
9. Remove the two nuts (E) and bolts (G) that attach the siderail mounting bracket (F) to the head
section.

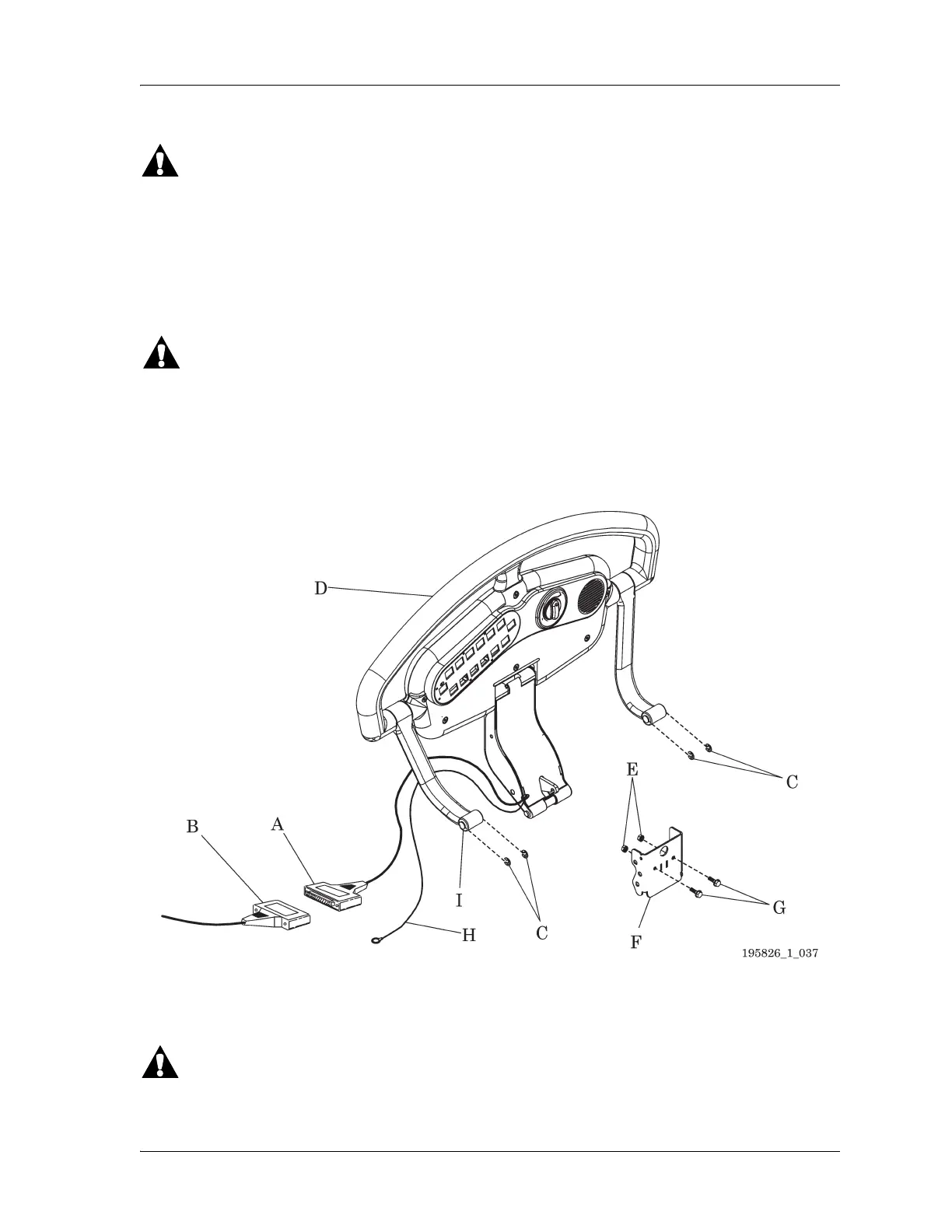

Figure 4-28. Siderail Assembly
4.25 Patient Siderail (Inboard) P.C. Switch Board
Tools: T25 Torx® head bit Ratchet T10 Torx® head bit
WARNING:
Follow all electrical safety precautions when servicing the bed’s electrical system. Failure to do so could
cause personal injury or equipment damage.
