4.28 Stow and Go® Foot Section Wireform
Chapter 4: Procedures
4 - 46 Affinity® Four Birthing Bed Service Manual (195826 REV 2)
2. Hold the mattress handles (B) or (G) that are on both sides of the mattress.
3. Pull straight up and then toward yourself.
4. Stand the foot section up on the pull handle (C) base or on the perineal stand.
REPLACEMENT
Failure to correctly mount the foot section to the yoke latches could cause equipment damage or
personal injury.
1. Hold the mattress handles (B) or (G) that are on both sides of the mattress.
2. Align the foot section slides (D) with their receptacles (F) on the bed.
3. Lower the foot section (E) on to the bed.
4. Pull upward on the pull handle (C) to make sure that the foot section is correctly attached to the
bed.

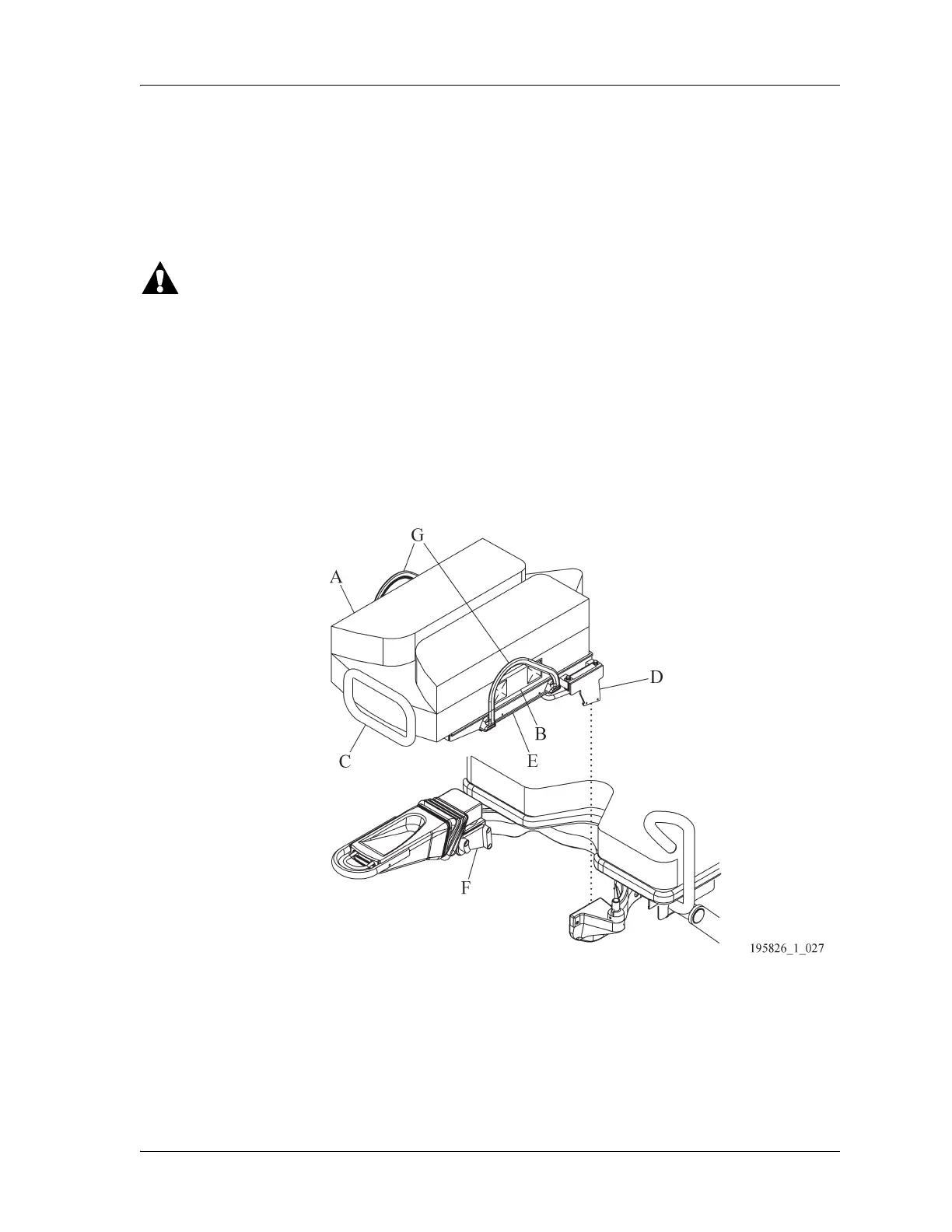

Figure 4-31. Foot Section (Lift Off)
4.28 Stow and Go® Foot Section Wireform
Tools: Adjustable wrench 1/4” hex wrench Phillips head screwdriver
REMOVAL
1. Set the brakes.
2. Raise the bed to the full up position.
