4.20 Battery Assembly
Chapter 4: Procedures
Affinity® Four Birthing Bed Service Manual (195826 REV 2) 4 - 33
4
REMOVAL
1. Set the brake/steer pedal to the brake position.
2. Make sure the bed is out of the Trend-Like position.
3. Raise the bed to a comfortable working height.
WARNING:
Failure to unplug the bed could cause injury or equipment damage.
4. Unplug the bed from its power source.
5. Put the siderail lockout switch at the head end of the bed in the locked position.
6. Remove the fuse holder (A) from the power entry module (B) (see Figure 4-22 on page 4-33).
7. Remove the appropriate line voltage fuse (C) from the fuse holder (A).

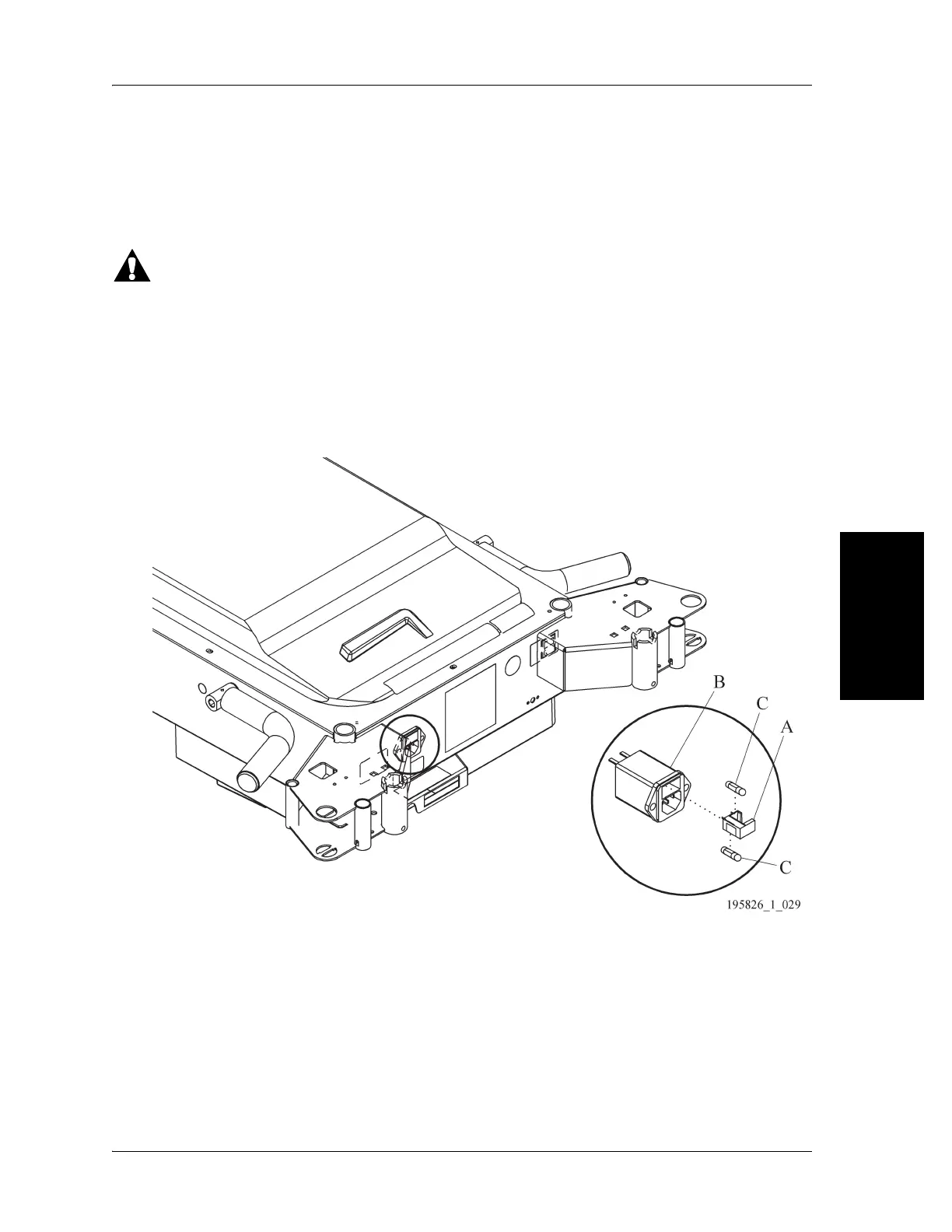

Figure 4-22. Fuse Location
REPLACEMENT
1. Install a serviceable line voltage fuse (C) into the fuse holder (A).
2. Install the fuse holder (A) into the power entry module (B).
3. Do the “Function Checks” on page 2-5.
4.20 Battery Assembly
Tools: T25 Torx® head bit Ratchet Digital multimeter (VOM)
Small screwdriver
