EXAMINE THE FOOT SUPPORTS
Tools: Tape measure
The foot support assembly requires periodic inspec
tion and lubrication. Do as follows to examine the
foot support assembly:
1. Pull the release latch (A) to release the foot support (B) (see Figure 6-2 on page 6-6), and raise and
lower the foot support.
2. Make sure the release latch (A) operates smoothly and engages the f
oot support (B) when released
at any time.

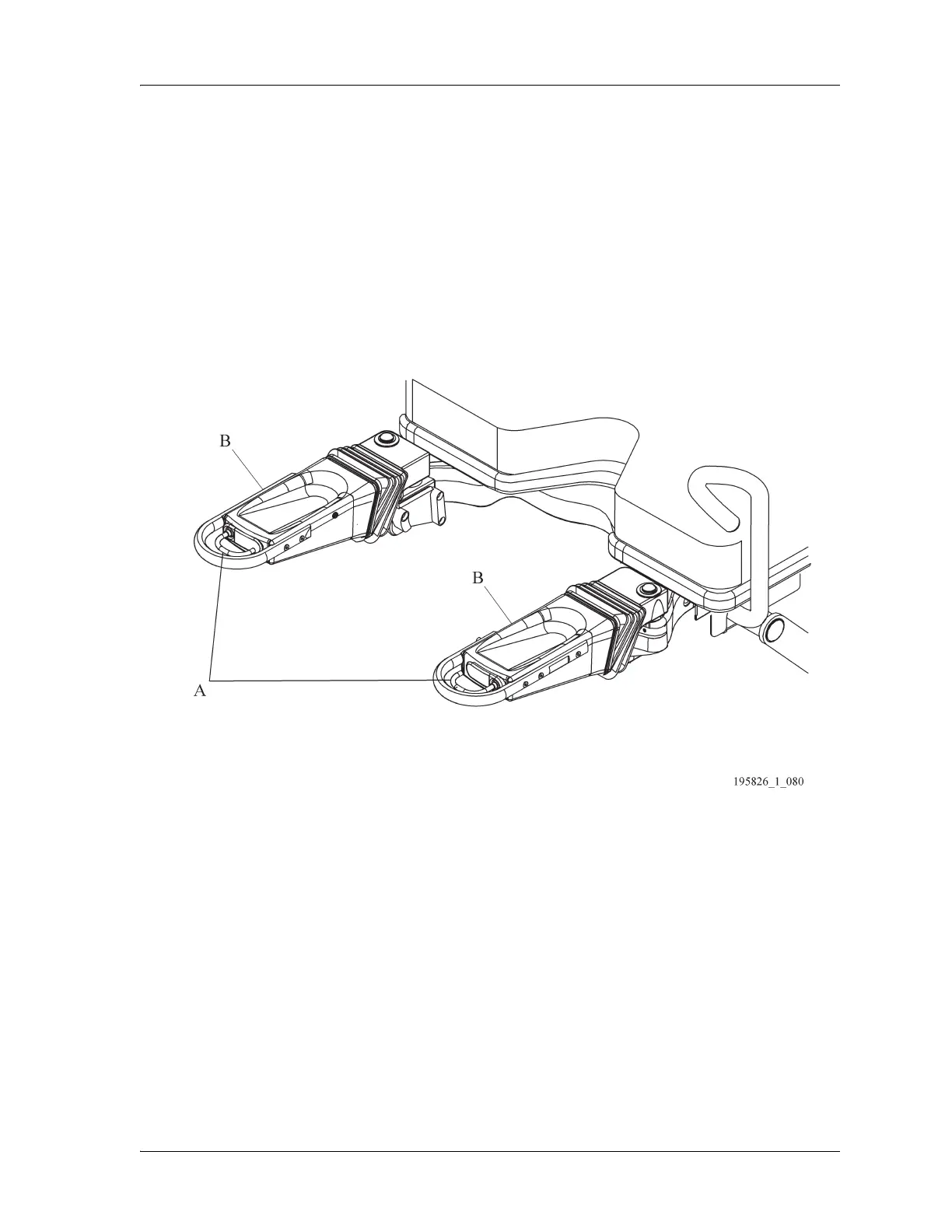

Figure 6-2.
Foot Support Assembly
3. Pull the release latch (A) to move the foot support (B) outward.
4. To make sure the release latch (A) operated correct
ly, release the latch two to three times during the
outward motion.
5. Return the foot support (B) to its original position.
6. Examine the foot support (B) for any missing, loose, incorrectly located, or incorrect parts.
7. Make sure all foot support (B) functions operate
correctly after you complete the inspection.
