4.17 Bed Surface Air System Assembly
Chapter 4: Procedures
Affinity® Four Birthing Bed Service Manual (195826 REV 2) 4 - 29
4

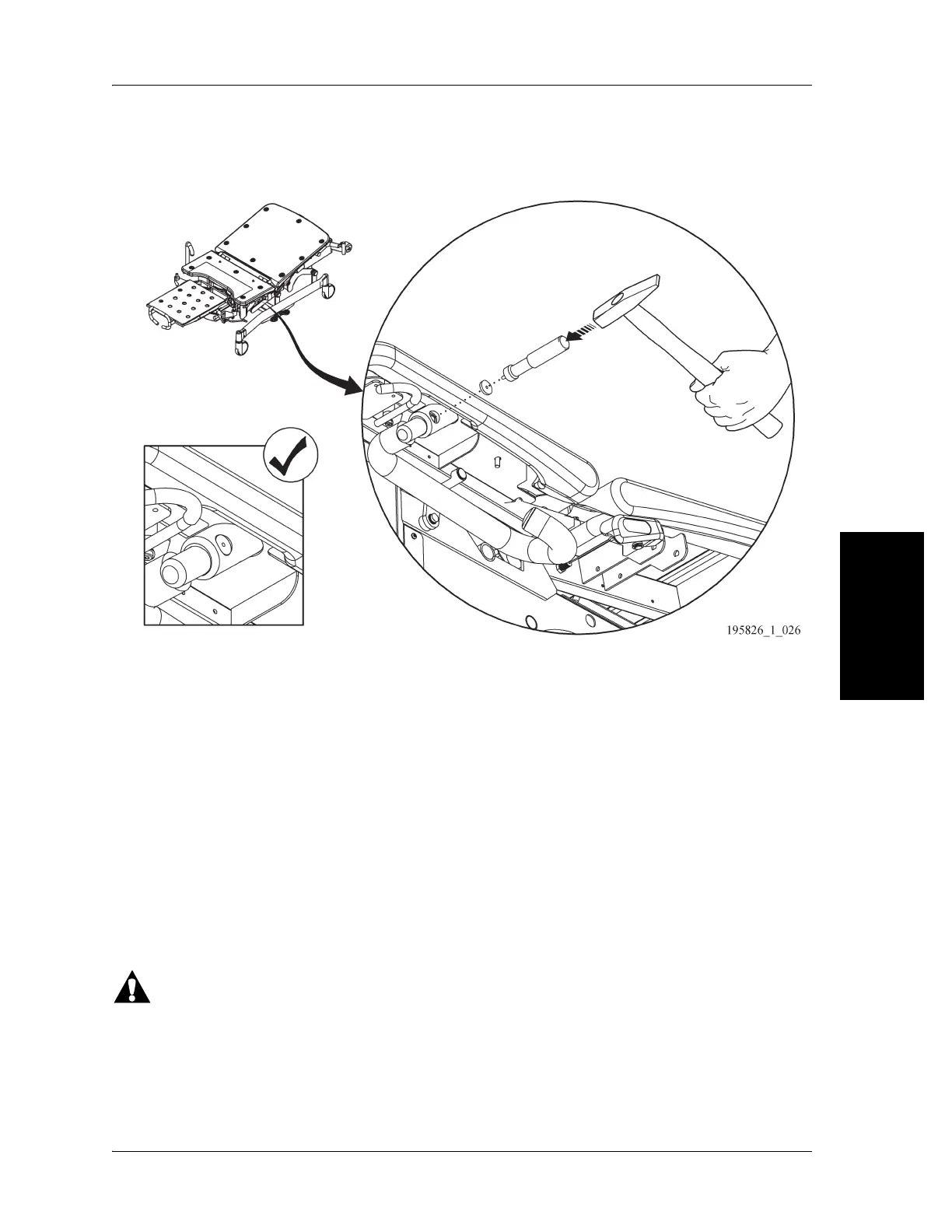

Figure 4-18. Labor Grip Plug Installation
4.17 Bed Surface Air System Assembly
Tools: Small wire cutters (2) ½” wrench
NOTE:
When servicing the air system, it is important to make sure the lumbar and seat inflate/deflate hoses are
connected to the correct fittings on the air manifold. The hose from the left side of the bed is the lumbar
hose; the hose from the right side is the seat hose.
REMOVAL
1. Set the brake/steer pedal to the brake position.
2. Make sure the bed is out of the Trend-Like position.
3. Raise the bed to the high position.
4. Raise the head section to the high position.
WARNING:
Failure to unplug the bed could cause injury or equipment damage.
5. Unplug the bed from its power source.
6. Put the siderail lockout switch at the head end of the bed in the locked position.
7. Remove the top motor cover (see Procedure 4.1 on page 4-3).
8. Remove the bottom motor cover (see Procedure 4.2 on page 4-4).
