4.16 Labor Grips
Chapter 4: Procedures
4 - 28 Affinity® Four Birthing Bed Service Manual (195826 REV 2)

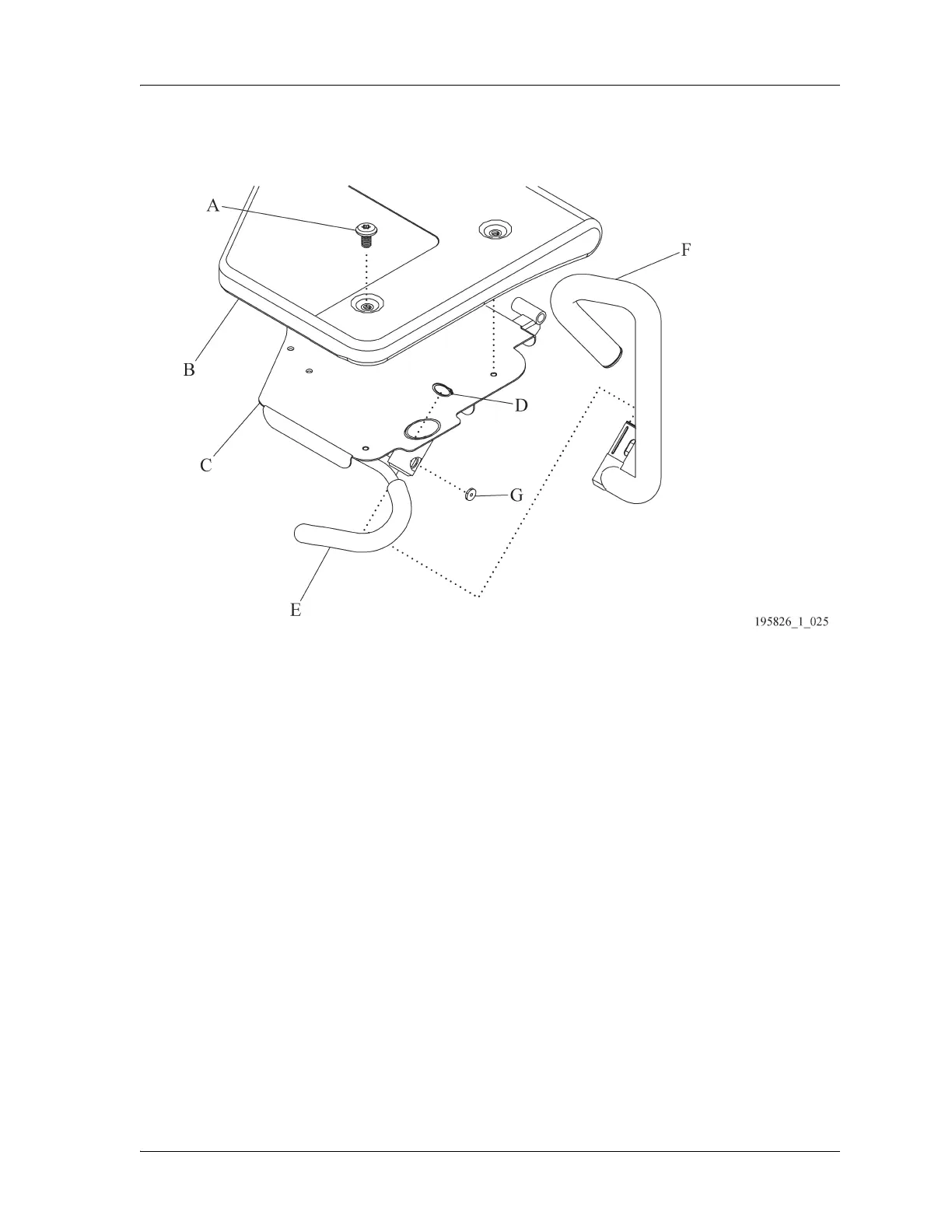

Figure 4-17. Labor Grips
6. Remove the external snap ring (D) from the pull handle.
7. Pull and hold the release (E) for the labor grip handle (F).
8. Slide the labor grip handle (F) from its socket.
REPLACEMENT
1. Do the removal procedure in reverse order.
2. Apply lubri-film spray (P/N 36958) to the arm of the labor grip that slides into the socket.
3. Install the plug (see Figure 4-18 on page 4-29).
4. Do the “Function Checks” on page 2-5.
