4.21 Logic Control P.C. Board Assembly
Chapter 4: Procedures
Affinity® Four Birthing Bed Service Manual (195826 REV 2) 4 - 37
4
REPLACEMENT
1. Do the removal procedure in reverse order.
a. Make sure that you connect the battery cable connection P5 last.
b. Make sure the wiring connectors are firmly connected to the logic control P.C. board (A)
receptacles.
2. Do the “Hilow Bed Height Adjustment” on page 4-9, and the “Foot Limit Switch Adjustment” on
page 4-19.
3. Do the “Function Checks” on page 2-5.

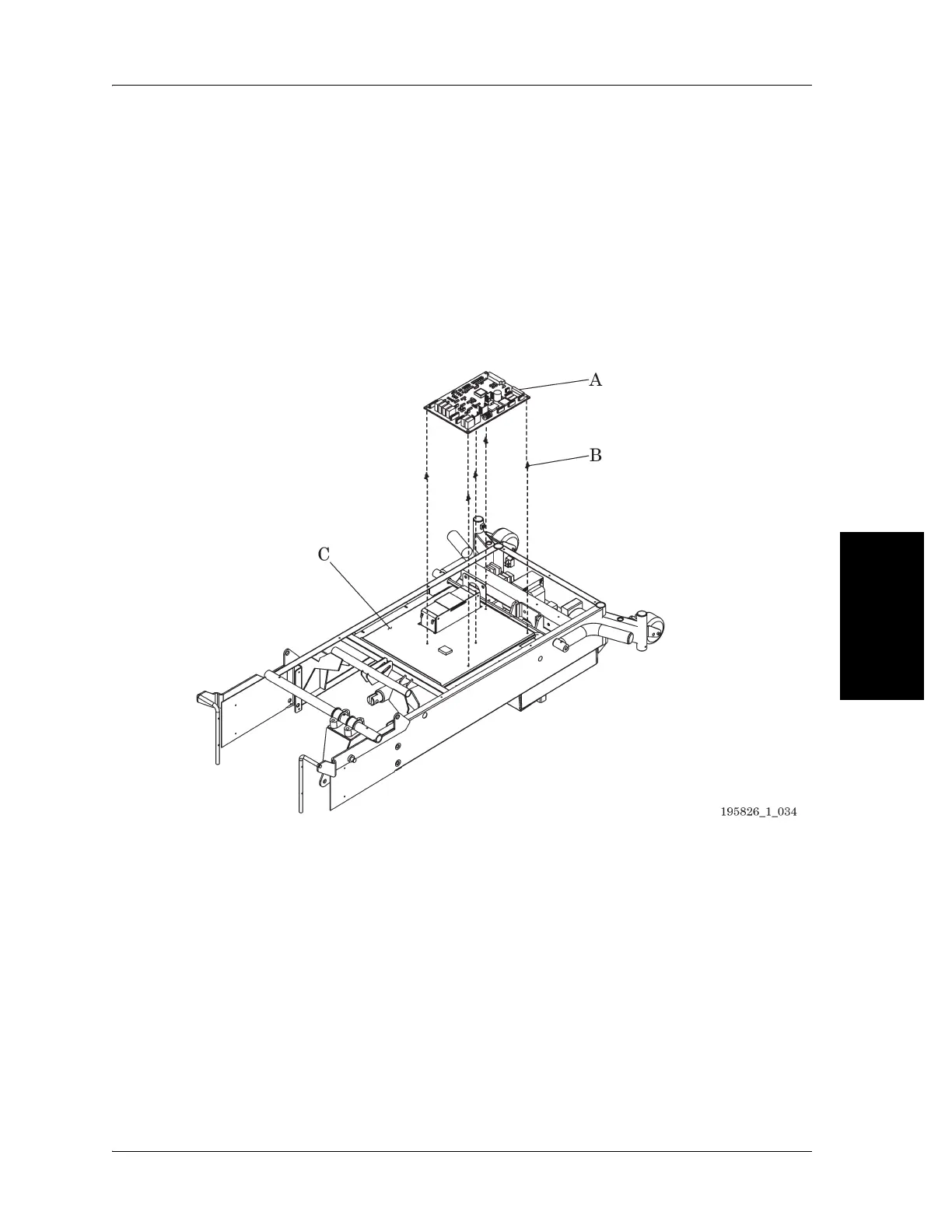

Figure 4-24. Logic Control P.C. Board Assembly
