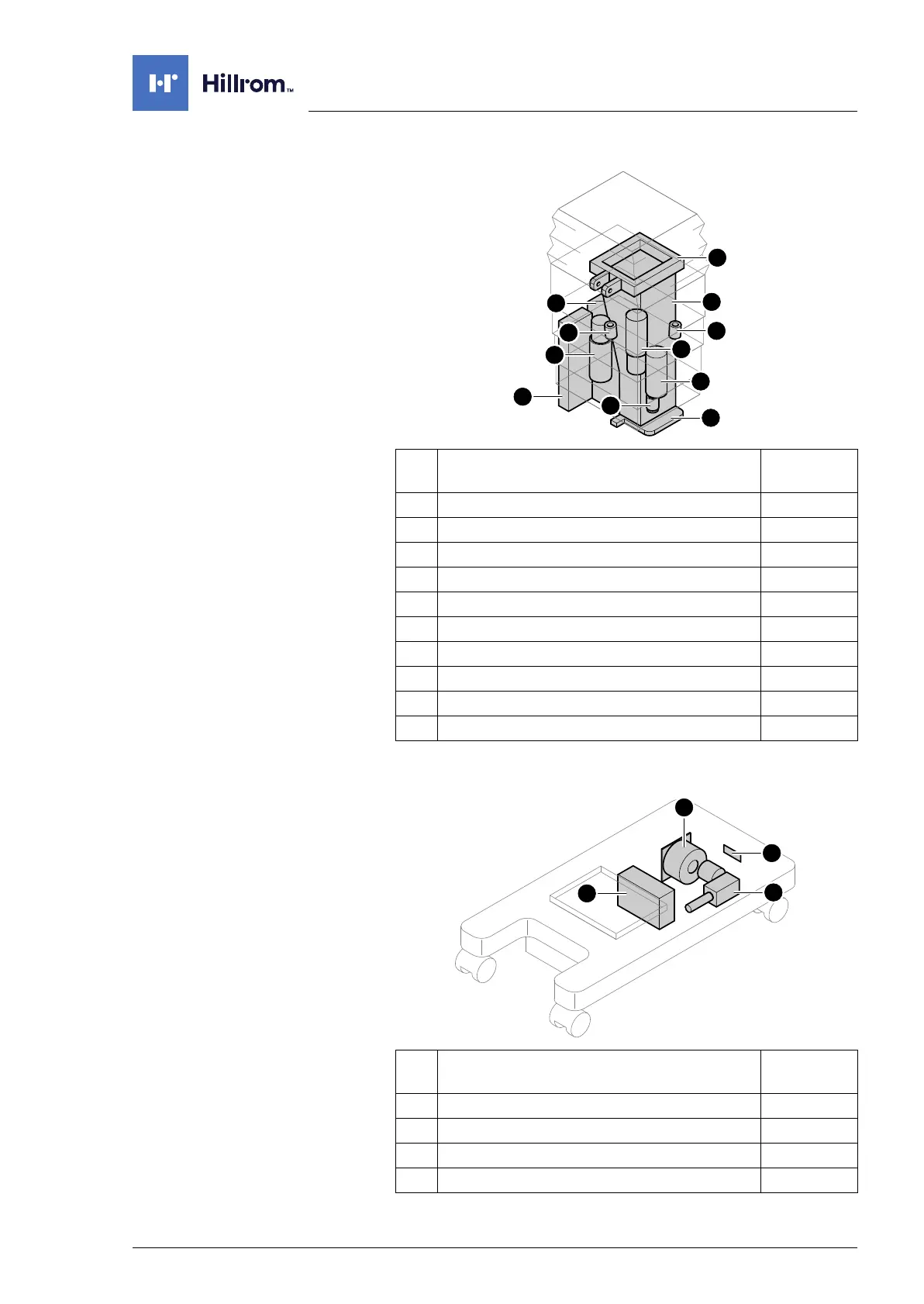

Column:
Running gear:
Pos. Material description Material
number
1 Lift motor 2077111
2Edging motor 1957801
3 Spindle nut lift 2072460
4 Spindle nut Trendelenburg/tilt 2072201
5 Main cardan 1957806
6 Upper section of lift column 2077103
7 Bottom section of lift column 2077854
8 Lift spindle mount 2077851
9 Main Controller Unit 2072001
10 Trendelenburg motor 2081750
Pos. Material description Material
number
1 Jack-up unit linear drive 1949664
2 Transformer 1950753
3 Power supply unit 2081701
4 Voltage selector circuit board 2048974
7
2
1
8
3
6
10
4
9
5
4
3
2
4
1
