Running gear mechanical parts
76
4990851_002_00 – 2082262 – 2022-01-10
11.5 Wheel suspension
Removal 1. Prepare the operating table (Chapter 5).
2. Disconnect the power supply on the operating table
(Chapter 6.1).
3. Turn over the operating table (Chapter 6.7).

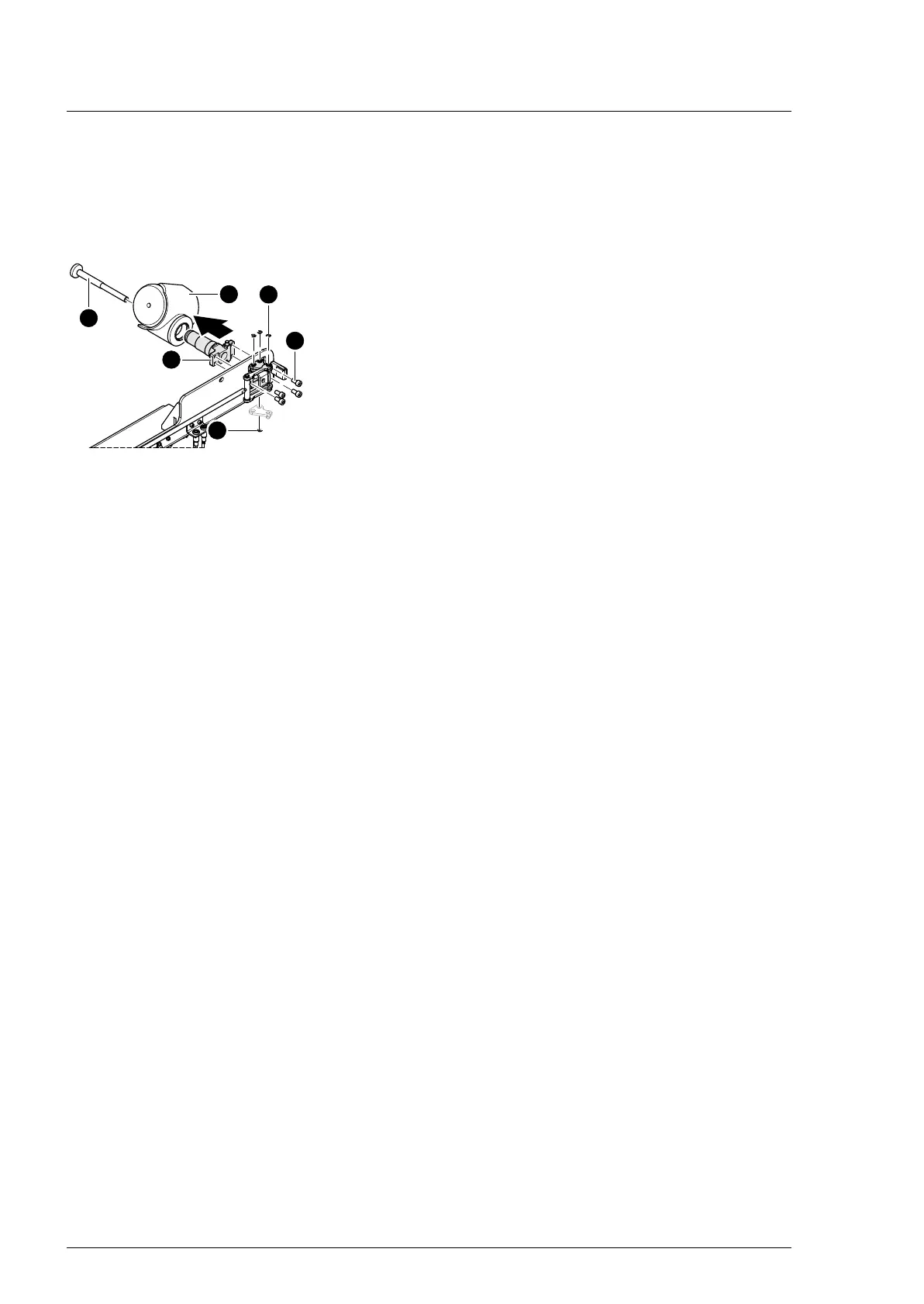

4. Remove the retractable foot [1] (Chapter 11.3).
5. Remove the wheel [2] (Chapter 11.4).
6. Remove the 3 securing rings [3] on the rod system (outside).
7. Remove the 1 securing ring [4] on the rod system (inside).
8. Note the mounting position of the wheel suspension. Remove
the wheel suspension [5] (4 screws [6]).
Assembly 1. Return the wheel suspension to its original mounting position.
Mount the wheel suspension (4 screws).
2. Fit the 1 securing ring on the rod system (inner).
3. Fit the 3 securing rings on the rod system (outer).
4. Mount the wheel (Chapter 11.4).
5. Mount the retractable foot (Chapter 11.3).
6. Restore the operating table to the upright position
(Chapter 6.8).
7. Put the pad in place.
8. Connect the power supply to the operating table
(Chapter 6.2).
