Running gear electric components
4990851_002_00 – 2082262 – 2022-01-10 85
12.6 Fuses for mains input

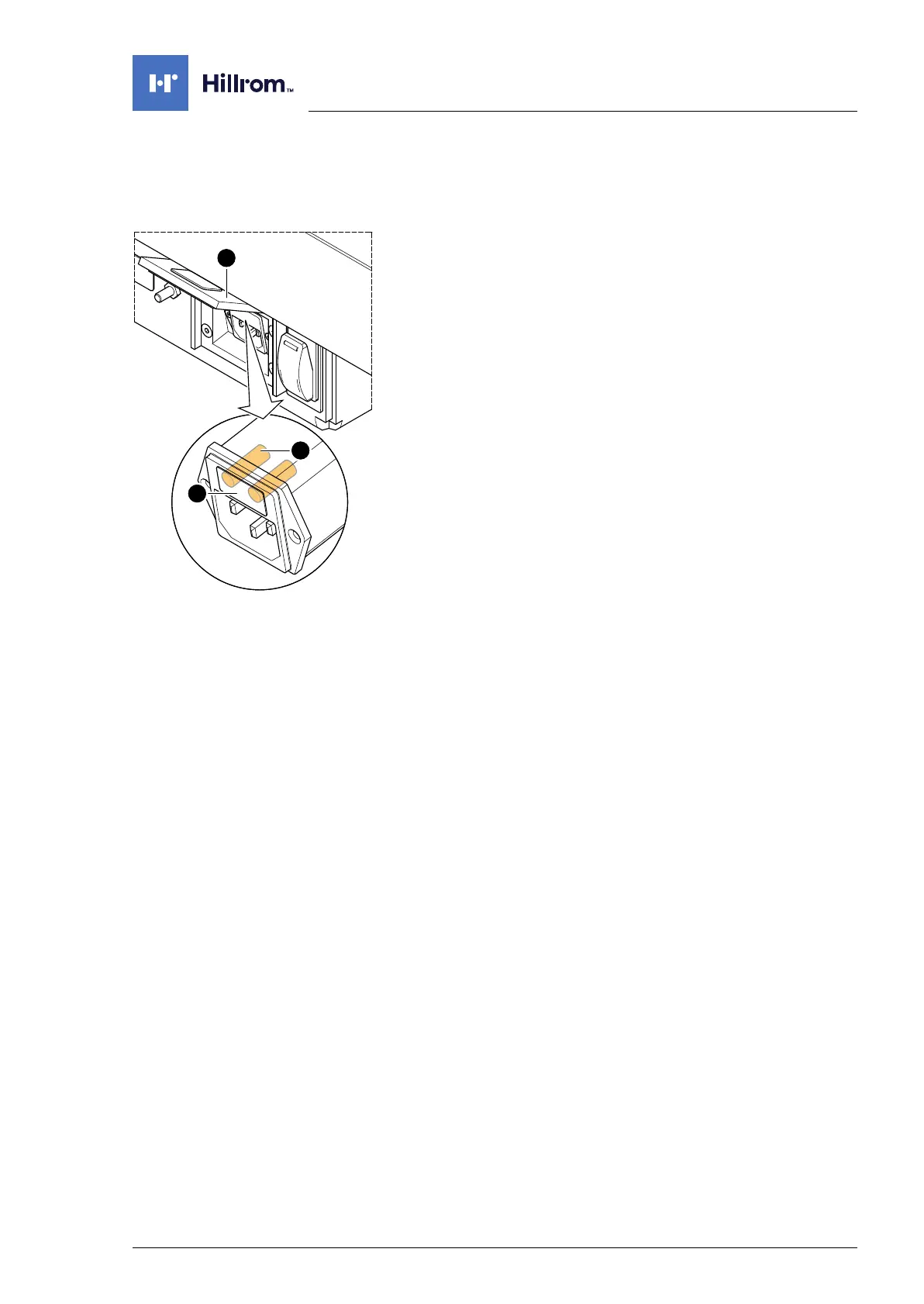

Removal 1. Prepare the operating table (Chapter 5).
2. Disconnect the power supply on the operating table
(Chapter 6.1).
3. Lift the lid [1] of the mains socket on the running gear.
4. Pull out the fuse shaft [2], fold out and remove the fuse [3].
5. Check the fuses individually and replace if necessary.
Assembly 1. Lift the lid of the mains socket on the running gear.
2. Pull out the fuse shaft, fold out and insert the tested fuses
(fuse layout Chapter 18).
3. Fold shut and insert the fuse shaft.
4. Close the lid on the mains socket.
5. Put the pad in place.
6. Connect the power supply to the operating table
(Chapter 6.2).
