Tabletop electric components
4990851_002_00 – 2082262 – 2022-01-10 49
8.5 Motor for back section hinge
Attention: the motor requires a serial number. Observe
Chapter 1.9 when replacing the motor.
Removal 1. Prepare the operating table (Chapter 5).
2. Disconnect the power supply on the operating table
(Chapter 6.1).
3. Remove the pad plate from the seat section and the back
section (Chapter 7.2).
4. Remove the back section drive unit (Chapter 8.4).

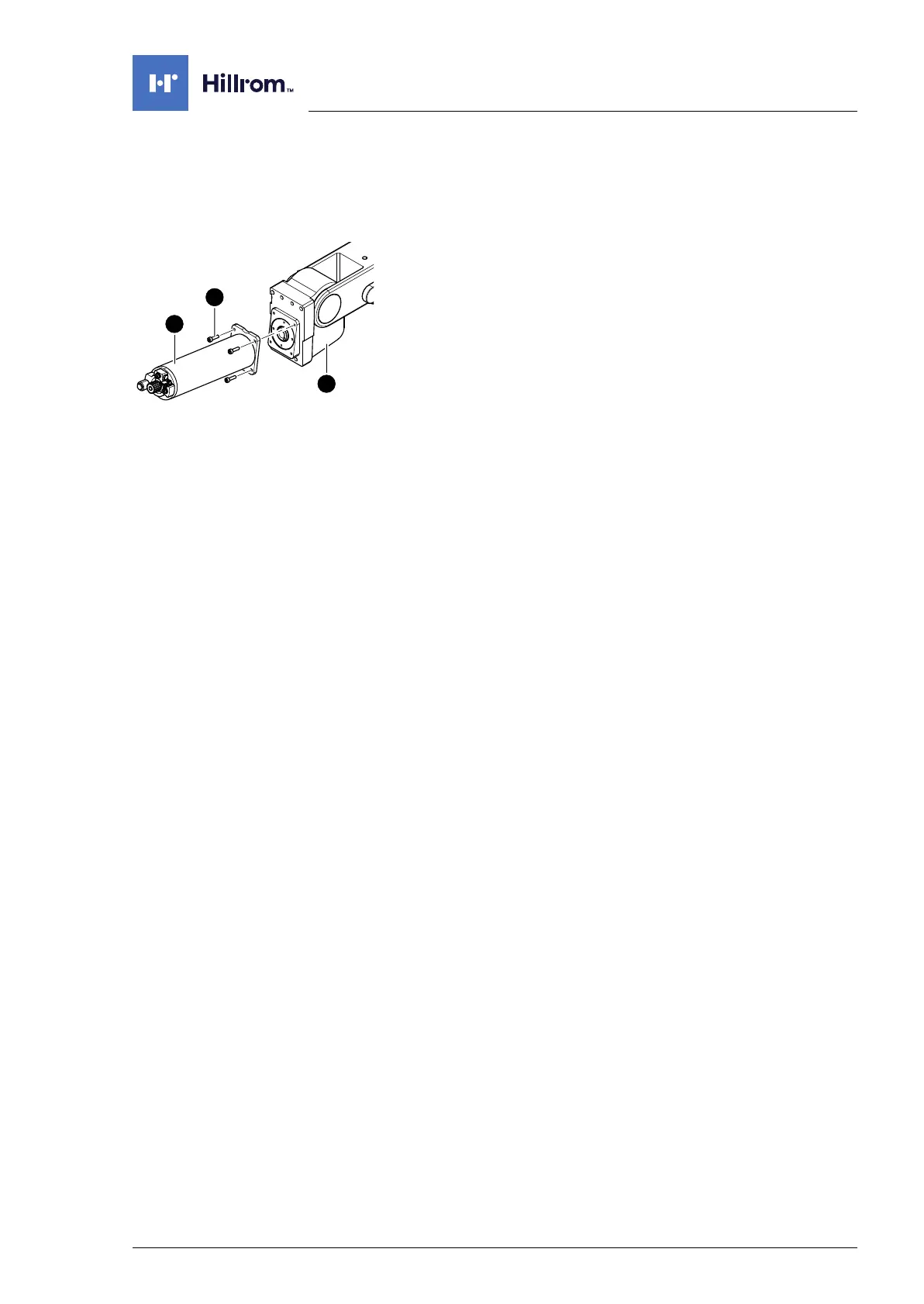

5. Note the mounting position of the motor. Unscrew the
motor [1] from the back section gear [2] (4 screws [3]) and
remove.
Assembly 1. Restore the motor to its original mounting position. Mount
the motor onto the back section gear (4 screws).
2. Mount the back section drive unit onto the seat section bar
(Chapter 8.2).
3. Align the hinges (Chapter 16.2).
4. Align struts lengthwise (Chapter 16.1).
5. Mount the pad plates onto the strut (Chapter 7.2).
6. Put the pad in place.
7. Connect the power supply to the operating table
(Chapter 6.2).
8. Update the firmware of the operating table.
