8.3 Motor for leg section hinge
Attention: the motor requires a serial number. Observe
Chapter 1.9 when replacing the motor.
Removal 1. Prepare the operating table (Chapter 5).
2. Disconnect the power supply on the operating table
(Chapter 6.1).
3. Remove the pad plate from the seat section (Chapter 7.2).
Attention: Leave the pad plate on the back section attached
so that the adjustment of the struts is maintained.
4. Remove the drive unit leg section (Chapter 8.2).

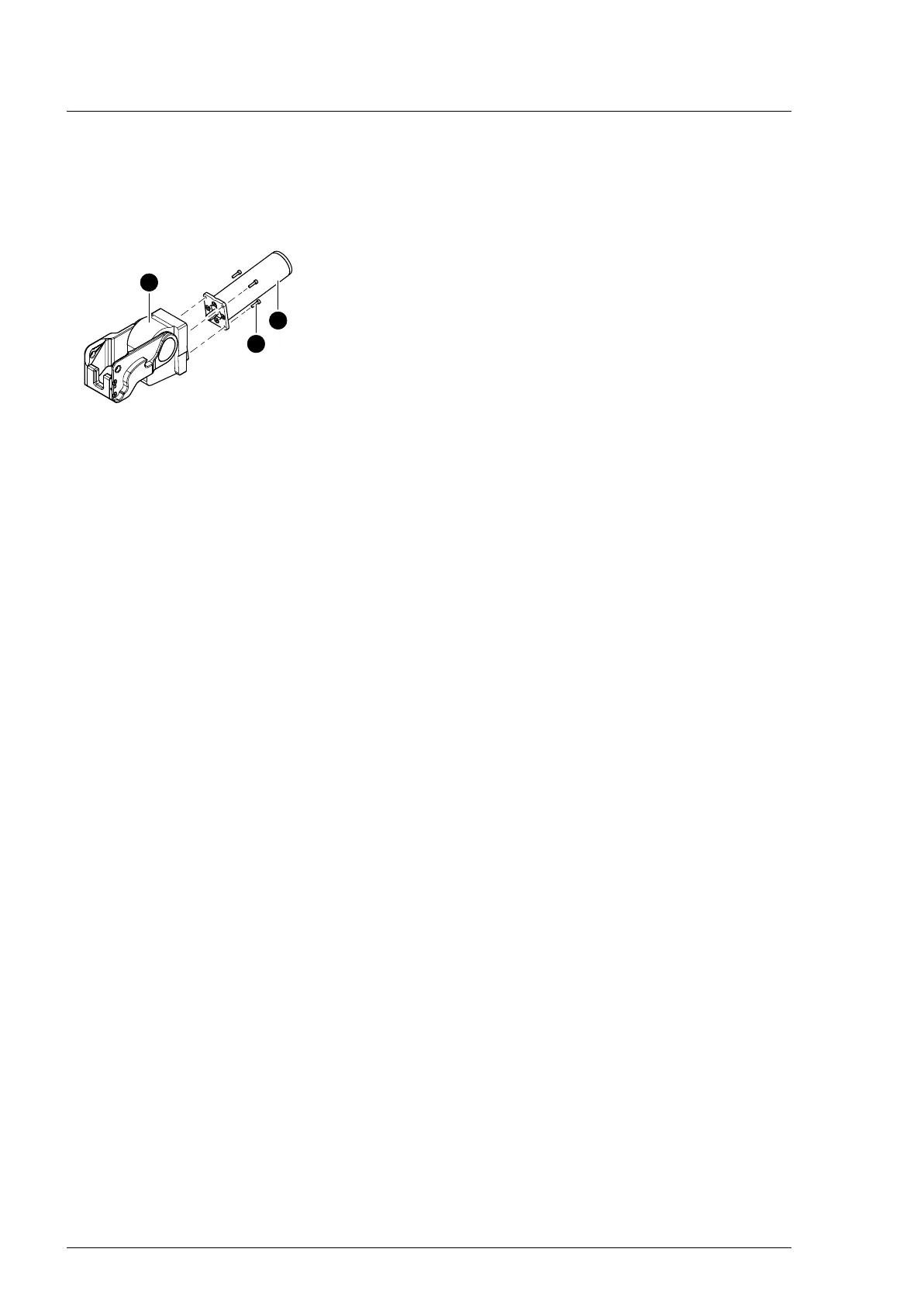

5. Note the mounting position of the motor. Unscrew the
motor [1] from the leg section gear [2] (4 screws [3]) and
remove.
Assembly 1. Restore the motor to its original mounting position. Mount
the motor onto the leg section gear (4 screws).
2. Mount the leg section drive unit onto the seat section bar
(Chapter 8.2).
3. Align the hinges (Chapter 16.2).
4. Mount the pad plate onto the strut (Chapter 7.2).
5. Put the pad in place.
6. Connect the power supply to the operating table
(Chapter 6.2).
7. Update the firmware of the operating table.
