6.9 Emergency adjustment for the lift
If the lift motor has a defect, the column can no longer be moved
upwards. The manual emergency adjustment must be performed
to access the column. This emergency adjustment is not possible
if the lift spindle is defective.
1. Prepare the operating table (Chapter 5).
2. Disconnect the power supply on the operating table
(Chapter 6.1).
3. Turn over the operating table (Chapter 6.7).

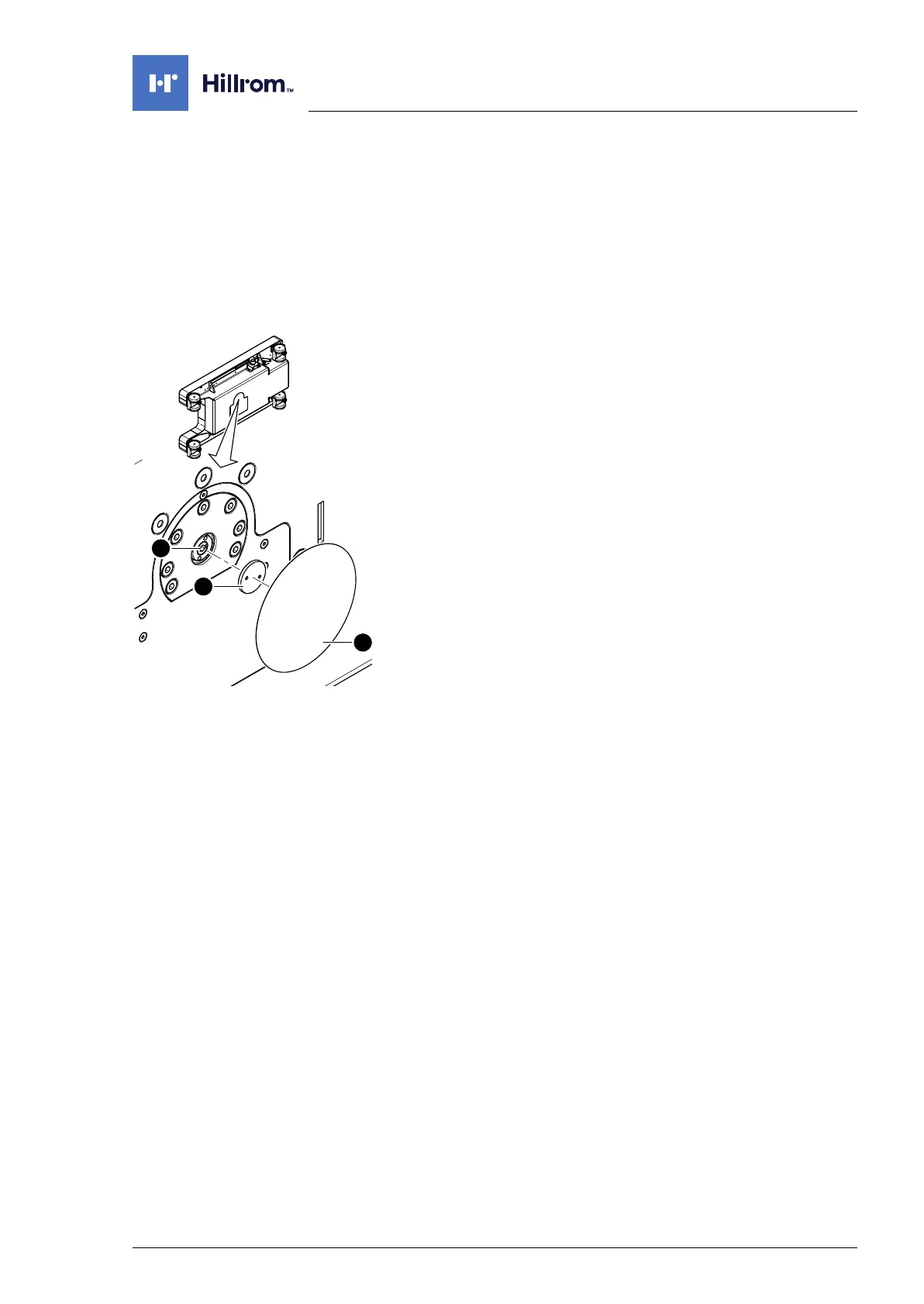

4. Remove the protective sheet [1] from the bottom of the
running gear.
5. Remove the cover plate [2] from the spindle end (securing
ring pliers).
6. Crank the lift spindle [3] up using a socket wrench.
7. If all work on the lift is complete, fasten the cover plate [2] to
the spindle end (securing ring pliers and omniFIT 100M thread
locking agent).
8. If all work on the lift is completed, attach a new protective
sheet over the bearing housing of the spindle.
9. Once all work on the lift is complete, restore the operating
table to the upright position (Chapter 6.8).
