11.7 Emergency release for jack-up unit
Removal 1. Prepare the operating table (Chapter 5).
2. Release the parking brake of the operating table.
3. Disconnect the power supply on the operating table
(Chapter 6.1).
4. Open the column cover on the running gear (Chapter 6.3).

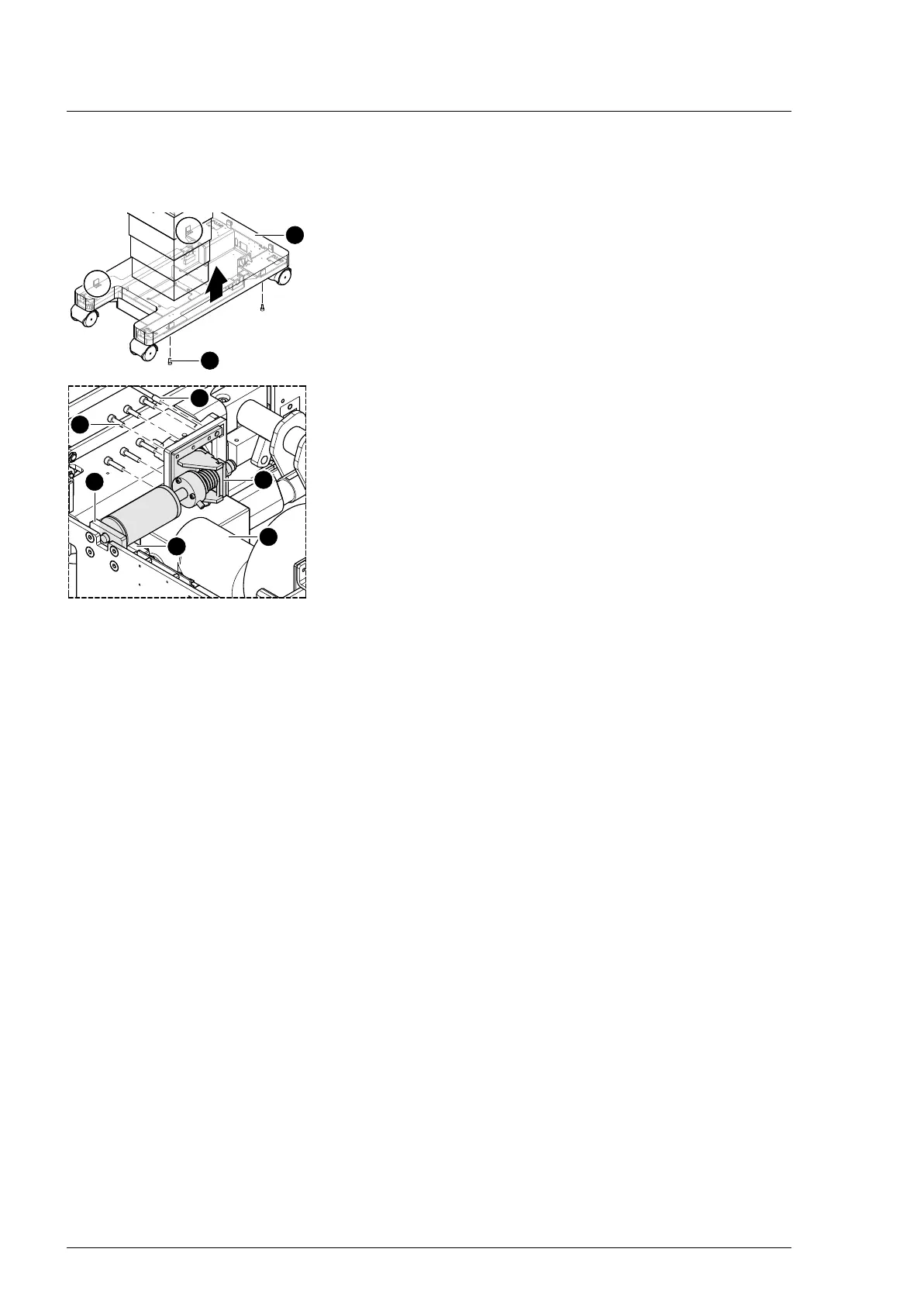

5. Loosen the running gear metal cover [1] (4 screws [2]).
6. Push up the running gear metal cover [1] and fix in the upper
position.
7. Remove the emergency release lever (Chapter 11.6).
8. Remove the jack-up unit emergency release [3] from the
running gear (6 screws [7], 2 dowel pins [8]).
9. Pull the jack-up unit emergency release [3] from the holding
bar locking bolt [6] and disconnect from the linear drive [4] at
the locking bolt [5].
Assembly 1. Place the emergency release for the jack-up unit onto the
locking bolt of the linear drive and insert into the holding bar
locking bolt.
2. Mount the jack-up unit emergency release on the running
gear (6 screws, 2 dowel pins). Tighten the screws with a
torque of 8 Nm.
3. Mount the emergency release lever (4 screws).
4. Mount the running gear metal cover on the running gear
(Chapter 11.2).
5. Guide the column cover downwards and close on the running
gear (Chapter 6.4).
6. Apply the parking brake of the operating table.
7. Put the pad in place.
8. Connect the power supply to the operating table
(Chapter 6.2).
