Tools
4990851_002_00 – 2082262 – 2022-01-10 17
– Electronic spirit level
The level is used to calibrate the incline sensors.
– Spring balance with a measuring range up to 10 N
The spring balance is used to check the cogged belt tension.
Auxiliary tools The following auxiliary tools are required (and are not available
from Trumpf Medizin Systeme):
–Cable ties
– Alcohol (degreasing agent)
– Punch
The punch is used to loosening fixed connections.

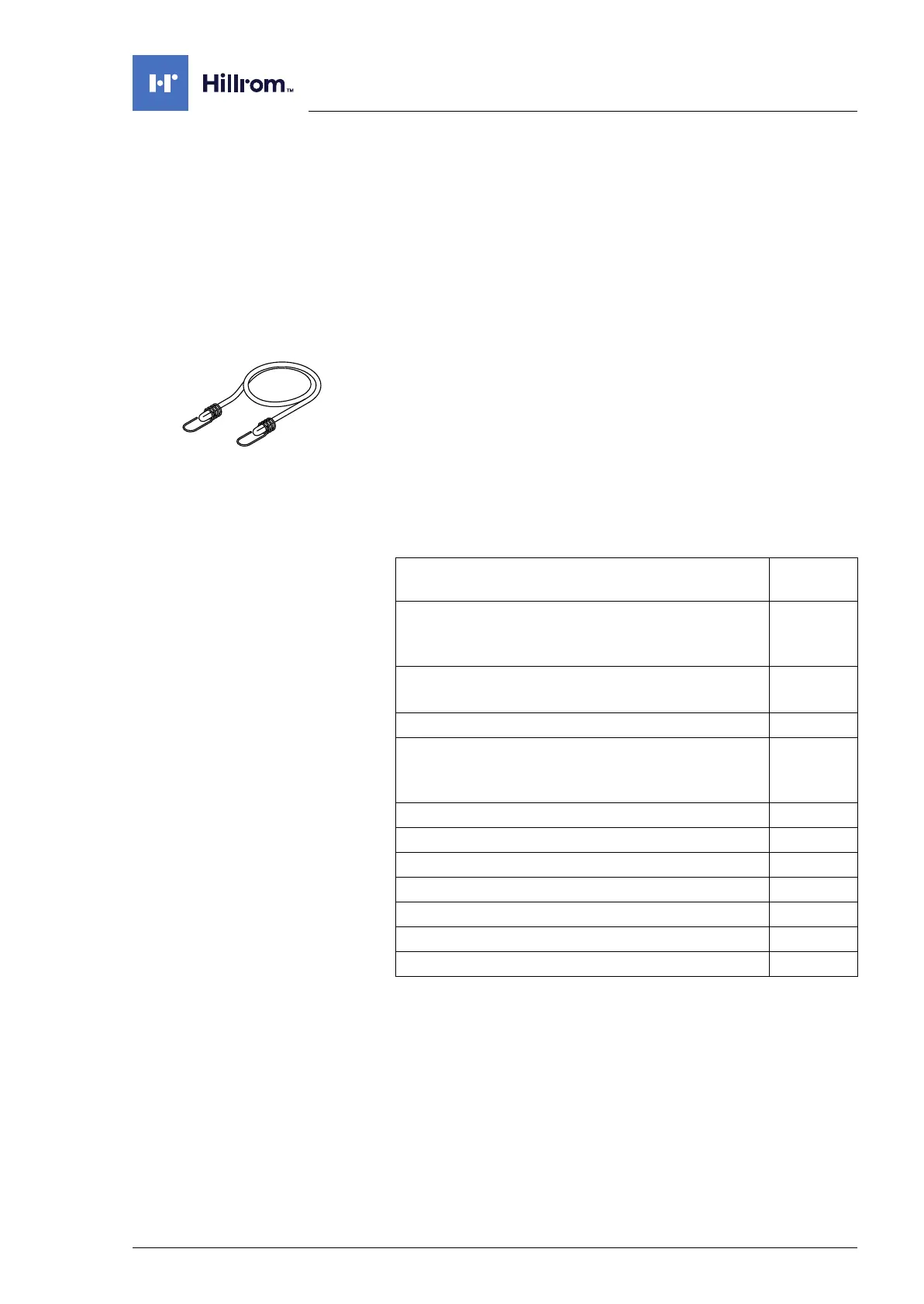

– Lashing straps with velcro strap or hooks at the ends
The lashing straps may be used, for example, to fasten the
bellows when access to the upper part of the operating table
column is required.
– Tension measuring device
The tension measuring device is used to check the cogged belt
tension on the motor for leg section hinge and on the motor for
back section hinge.
The following Trumpf Medizin Systeme auxiliary tools are needed:
Designation Material
number
(T) Wheel extractor
The wheel extractor is used to remove the gear
wheel from the longitudinal slide of the gear shaft.
2067884
(T) Dummy linear guides
The dummy is used for extending the linear guide.
2067885
TS3K Series Service Tool service software –
(T) Tail wheel
The tail wheel is used to place the operating table on
its side.
1800121
Screw guard varnish Loctite 243 50 ml 0970613
Terostat MS 939 adhesive 4150068
ISOFLEX TOPAS NCA 52 special grease 2031284
UNIMOLY GB 2 lubricant 2065940
ISOFLEX TOPAS NCA 5051 longlife grease 1784510
POLYLUB GLY 151 lubricant 2082175
Care set and cleaning set 4159014
